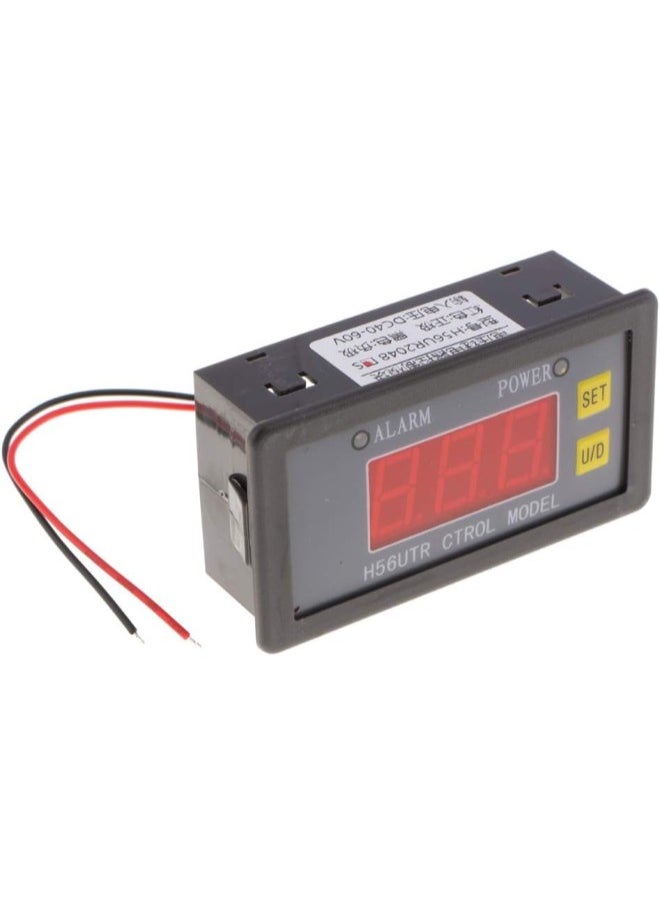

1 Pack Digital Time Delay Relay Board LED Display, For DC Motor Control - DC 48V

Description:

- Composed of intelligent DC voltmeter and DC relay control module,to realize accurate measurement of DC voltage.
- Set the upper and lower limits of the voltage, various delays, timing, and timing loops or combination of multiple modes,which realize simple and flexible implementation of multiple system controls.
- Product design in strict accordance with national standards and electrical safety rules.
- Three high-brightness LED digital tube display; Card slot installation.
- Widely used in battery charge and discharge control (inverter, UPS, backup power supply and various DC electric equipment), automotive battery control, electric vehicle power supply control, DC motor control, photovoltaic power supply system and over-voltage undervoltage protection.

Specification:

- Material: Electronic Components
- Overall Size: 79x43x27mm/3.11x1.69x1.06inch
- Hole Size: 71.3x39.1mm/2.81x1.54inch
- Working Voltage:
- DC 10-15V (12V Relay Module)
- DC 20-30V (24V Relay Module)
- DC 40-60V (48V Relay Module)
- Timing Range: 0-99.9s,0-999s,0-999min (Optional)
- Standby Current: 15mA/12V
- Relay: 10mA/12V (Disconnected); 45mA/12V (Pull-in)
- Working Temperature: -40~85℃

Size Chart:

Function Description:

F1: Automatic charge and discharge and voltage hysteresis control
F2: Voltage overrun mode (overvoltage and undervoltage protection)
: Battery automatic discharge control timing
F4: Timing (delay) control
F5: Manual control

Package Includes:

1 Piece Digital Relay Timer Module
