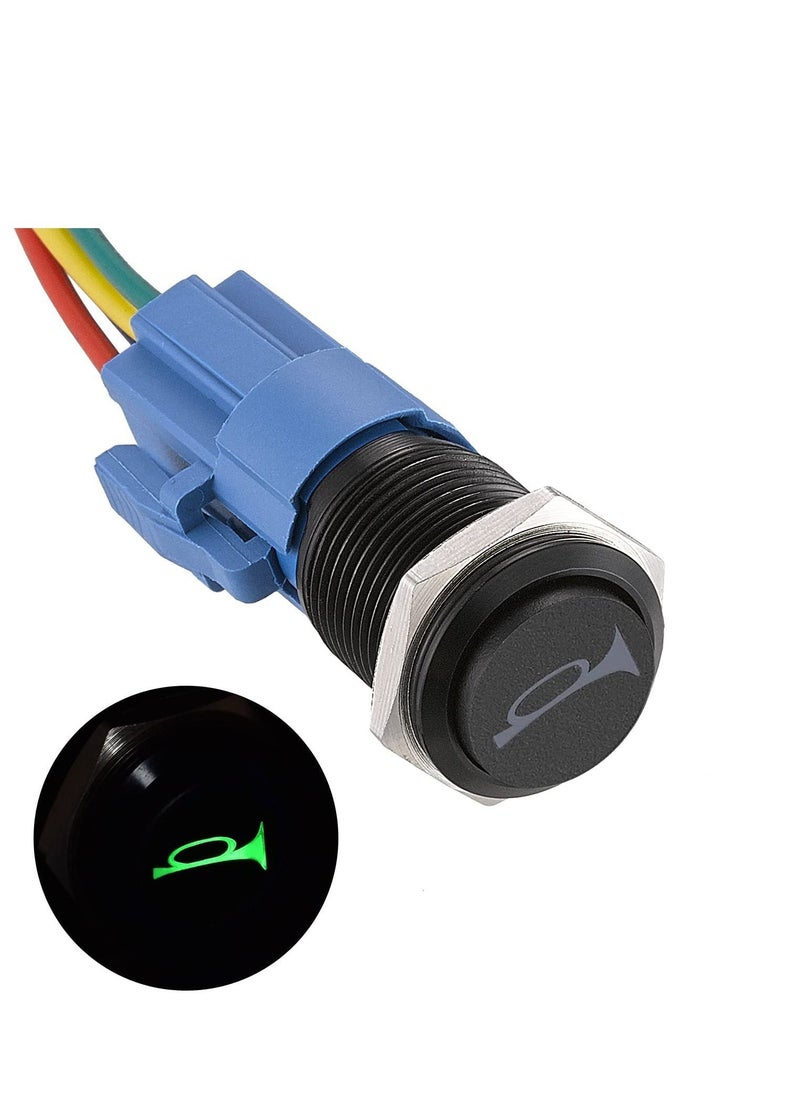

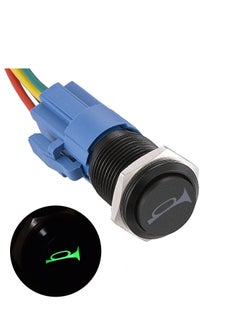

19mm 12V Momentary Speaker Horn Push Button Toggle Switch 3/4" Mounting Hole 1NO 1NC SPDT with Pre-Wiring Socket for Car Auto Motor Aluminium Alloy, Push Button Latching Switch (Blue/Black Shell)

Features:

Waterproof:

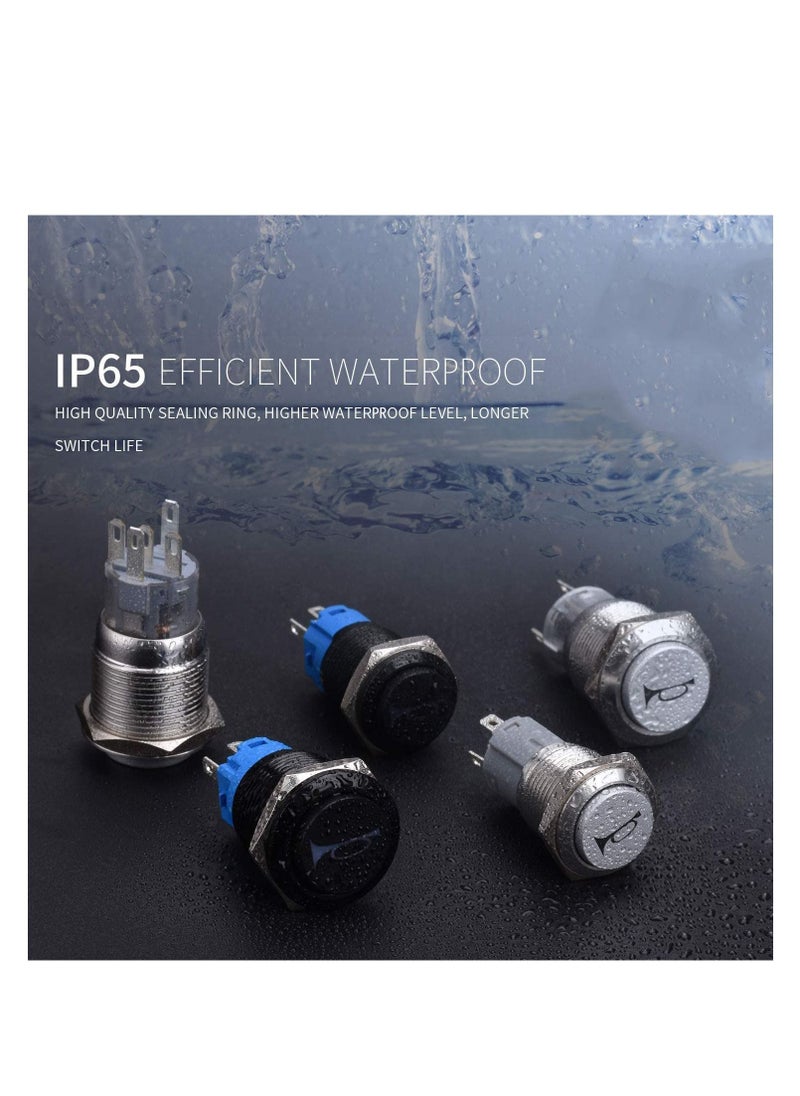

As it is IP65, it can work relatively harsh environment.

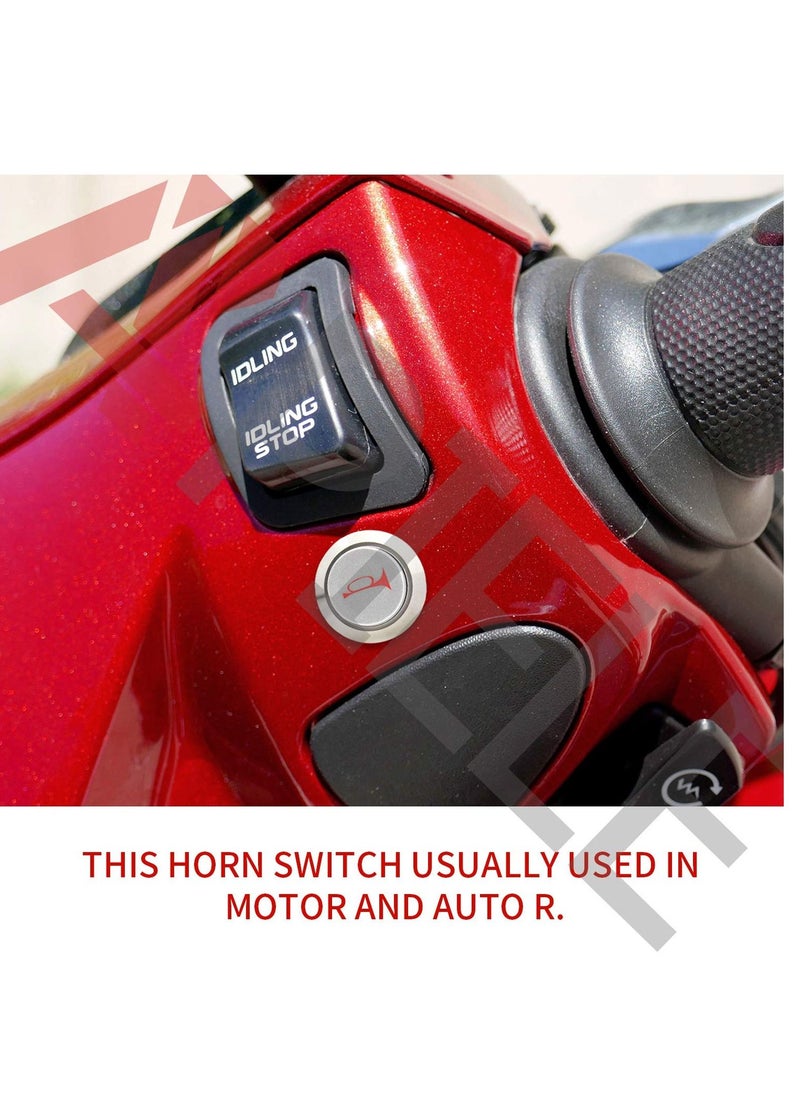

Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool.

Auto Refit:

It is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio switch.

Long Work Life:

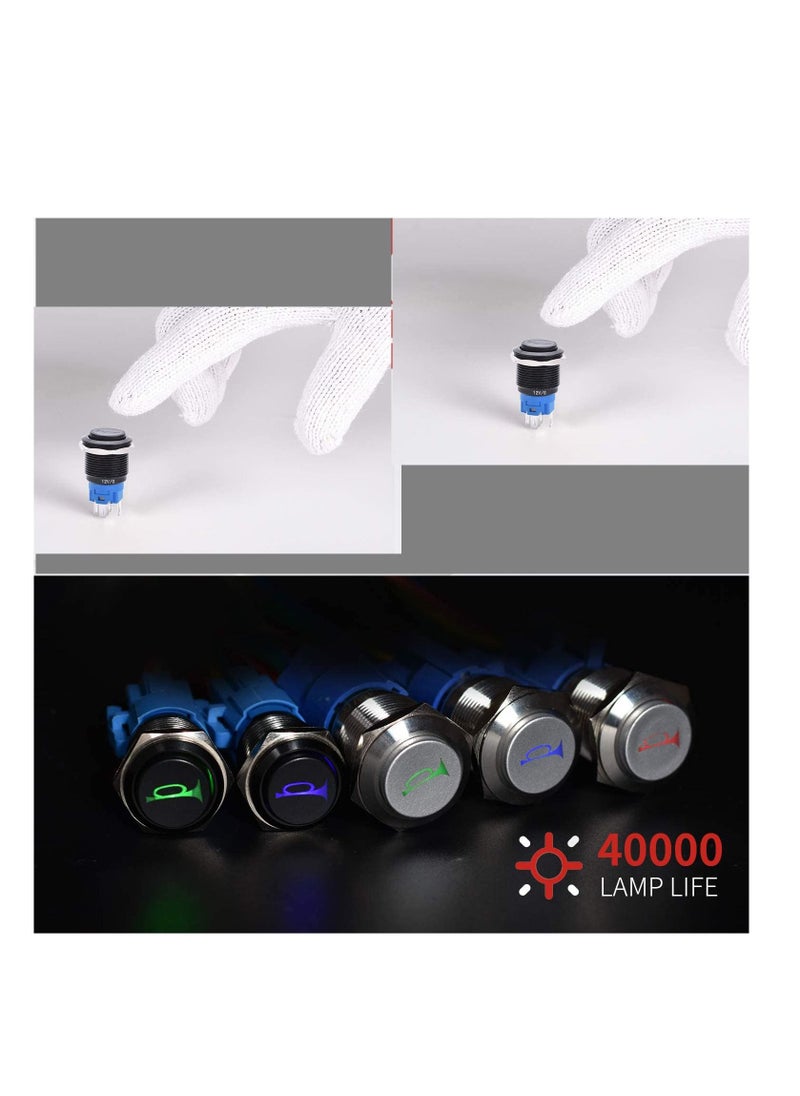

Switch use pole-less lamp beads, bright and dazzling brightness, long service life. The work life of the led light is more than 40,000 hours.The Mechanical work Life is 500,000 timesThe switch use Silver Alloy contact to make the Electrical Work Life more than 200,000 times.

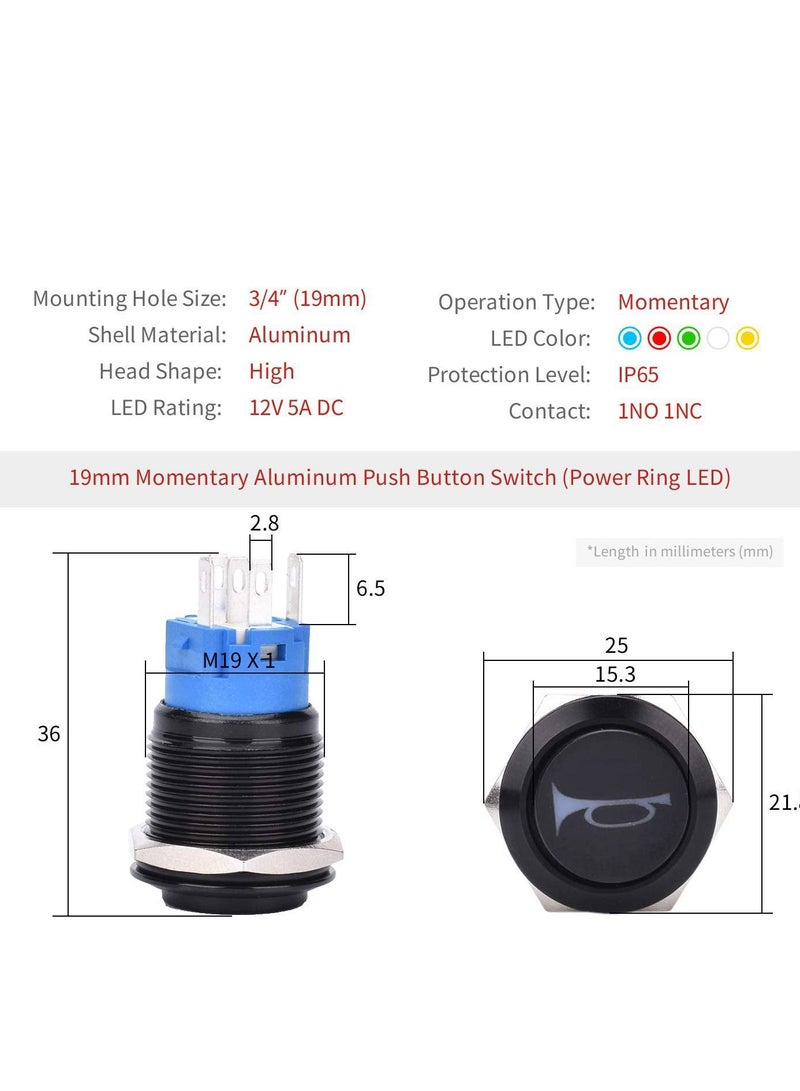

Specification:

• Mounting Cut Hole: 19mm ( 0.74”)


• Operation: Momentary


• Structure: 1NO 1NC


• Switch rating: 5A,12V AC/DC


• LED Pattern: Ring Indicator


• Contact Material: Silver alloy


• Protection Degree: IP65


• 100,000 Times Electric Work Life.




Package Include:
Horn Push Button Switch

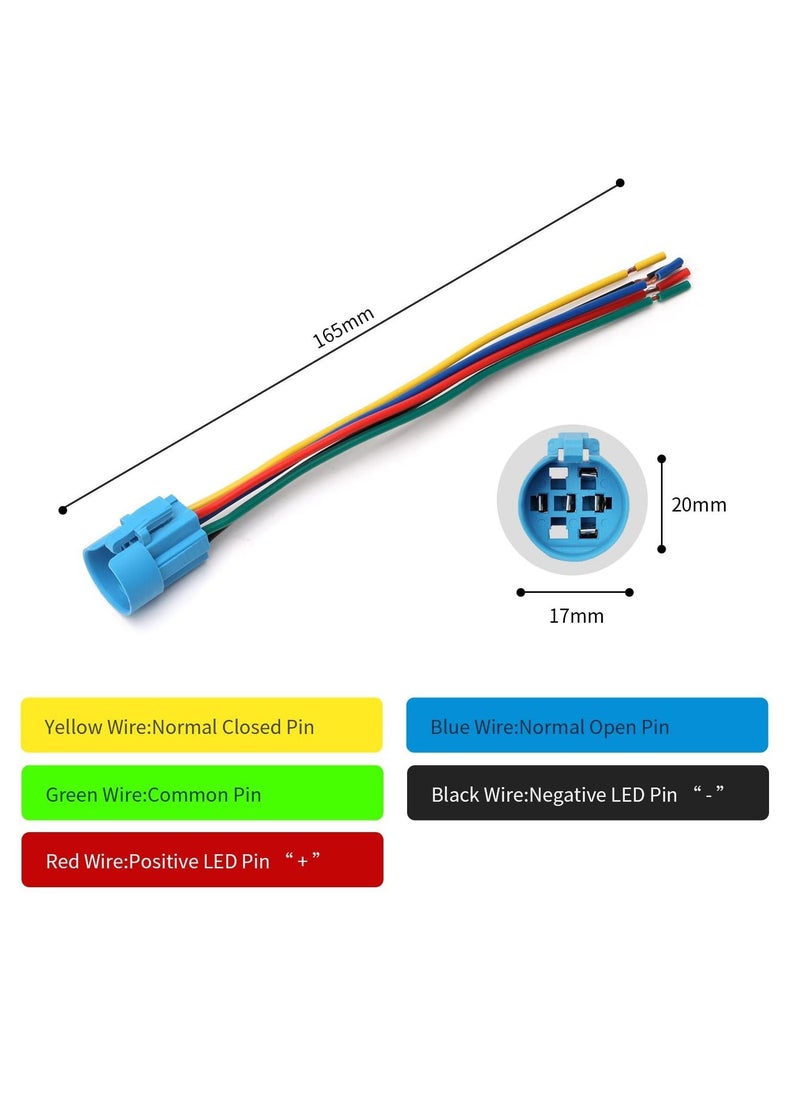

Pigtail Connectors

Quick Installation Wire Diagram
