Highlights- Output Waveform -- Sine, wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave(ECG wave), noise wave.
- DDS Frequency Range -- Sine wave 1- 500KHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1 Hz-50KHz (but the upper limit of adjustable frequency is not limited

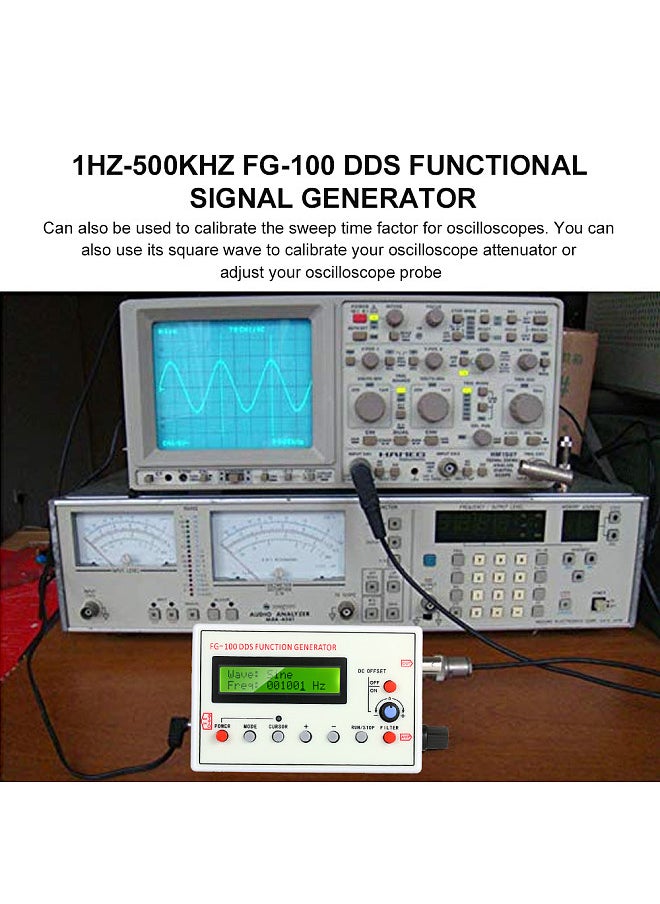

- Application -- Due to the excellent DSS accuracy and frequency stability, it can also be used to calibrate the sweep time factor for oscilloscopes
- Versatile Power Supply -- Its power supply can be either DC adaptor or a Lithium battery. Power supply range DC 4-10V, it is recommended to choose DC 5V when using the adapter, and 3.7V lithium battery when using battery power.
- Large LCD Screen -- Large LCD display with backlight for easy instant reading
OverviewSpecifications:
Power Supply: DC 4-10V
Current: 250mA
Frequency Range: sine wave 1-500kHz
Resolution: 1 Hz
Sine wave distortion: ＜1% below 1kHz, ＜0.5% above 1kHz
Output Amplitude: Maximum +/- 10V(p-p)
Output impedance: 50 ohms
DC Offset: Maximum +/- 10V, whit shutdown function
All Setting Parameters Can Be Saved

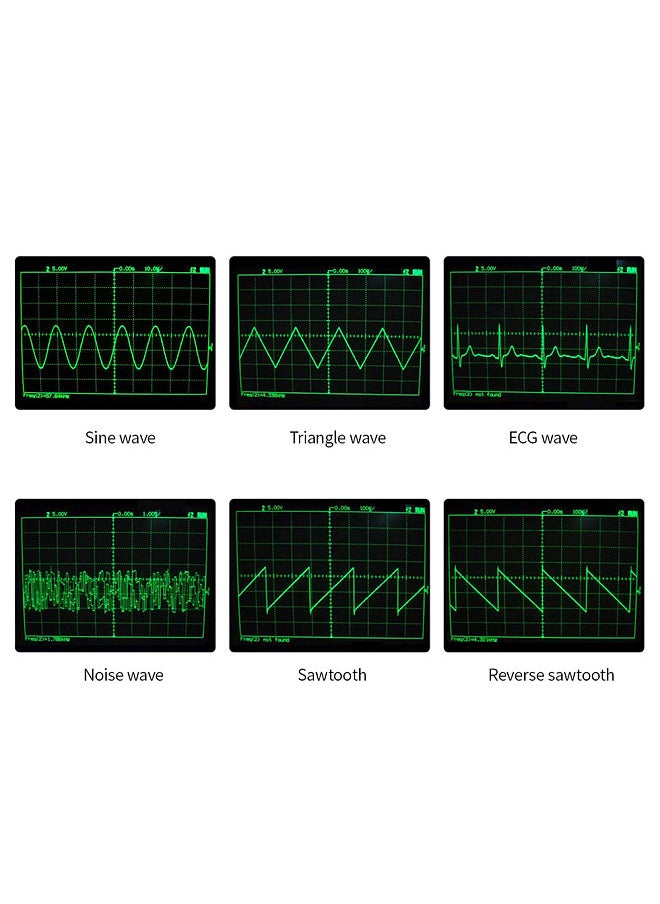

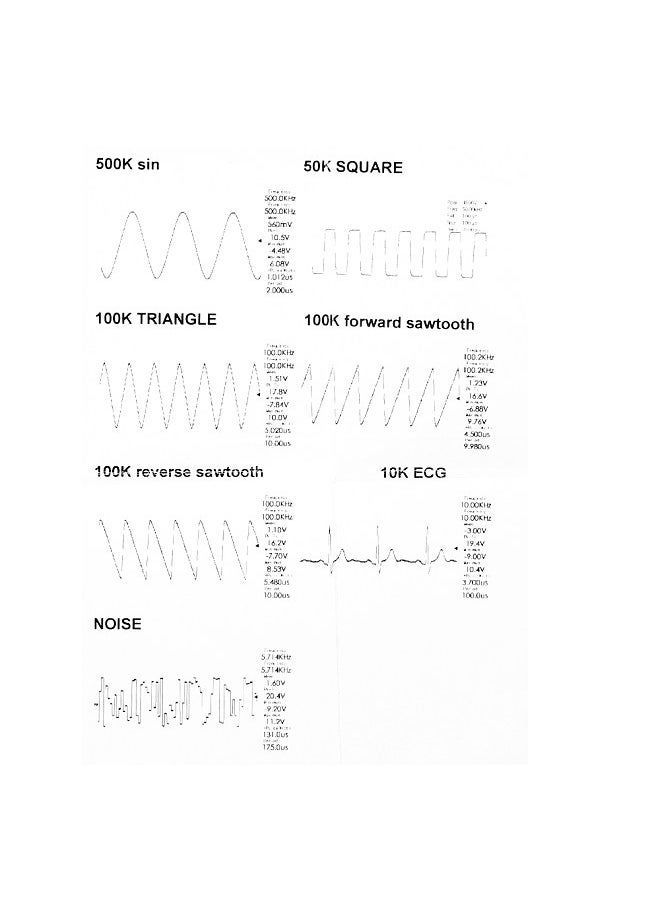

Output Waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise wave

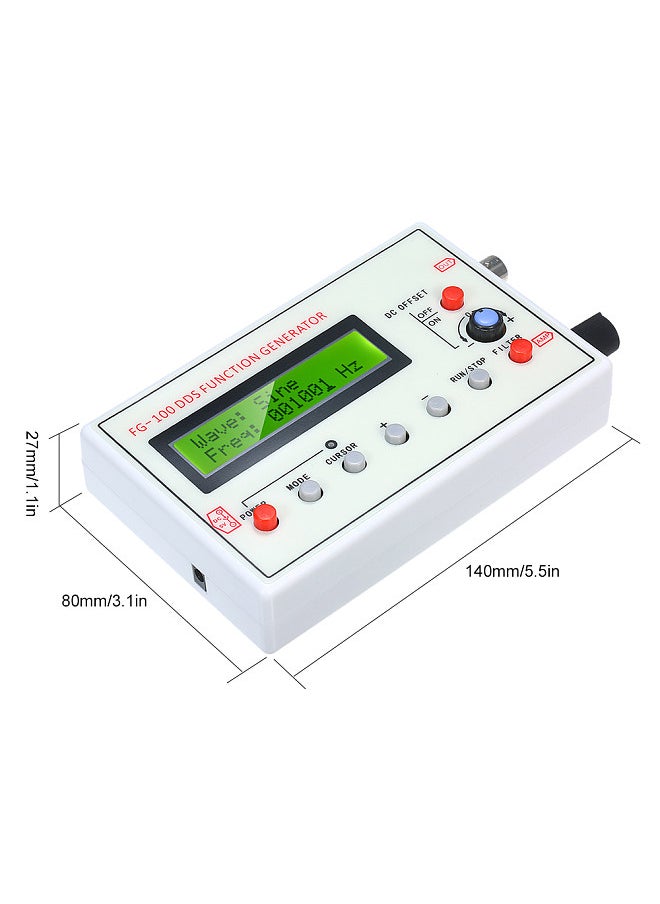

Item Size: 140 * 80 * 27mm / 5.5 * 3.1 * 1.1in
Item Weight: 144g / 5.1oz
