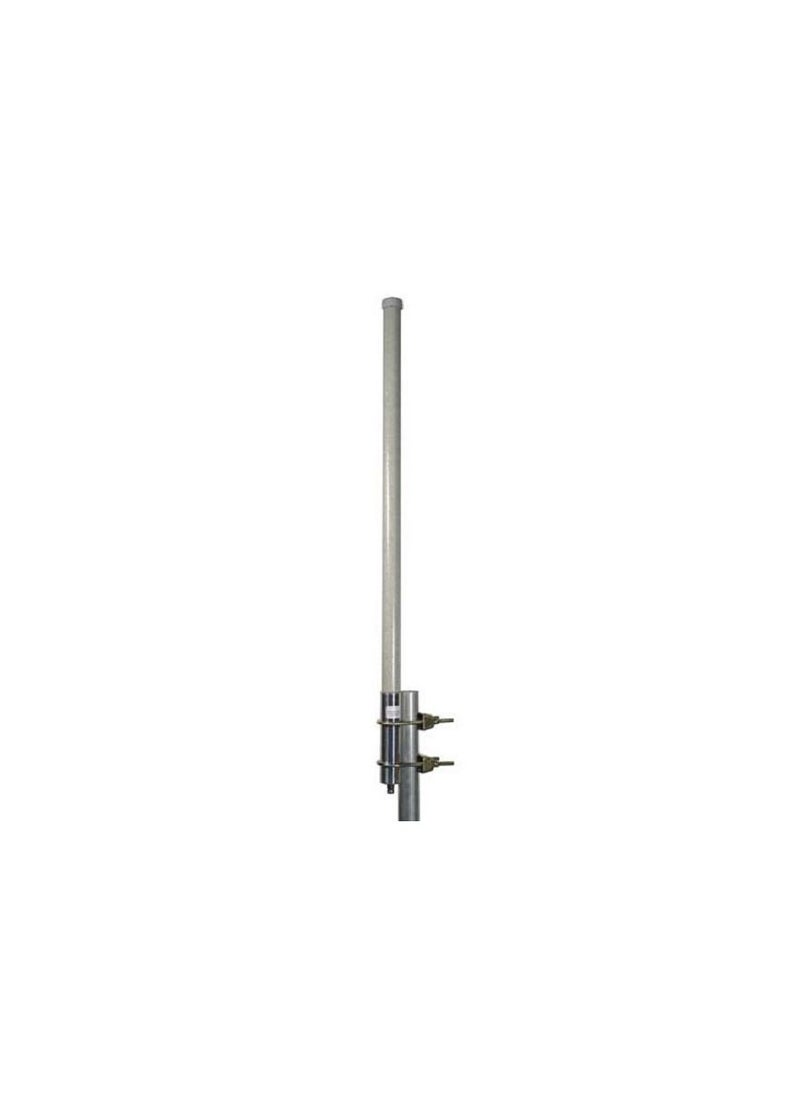

2.4 GHz 15 dBi Omnidirectional Antenna N F Connector

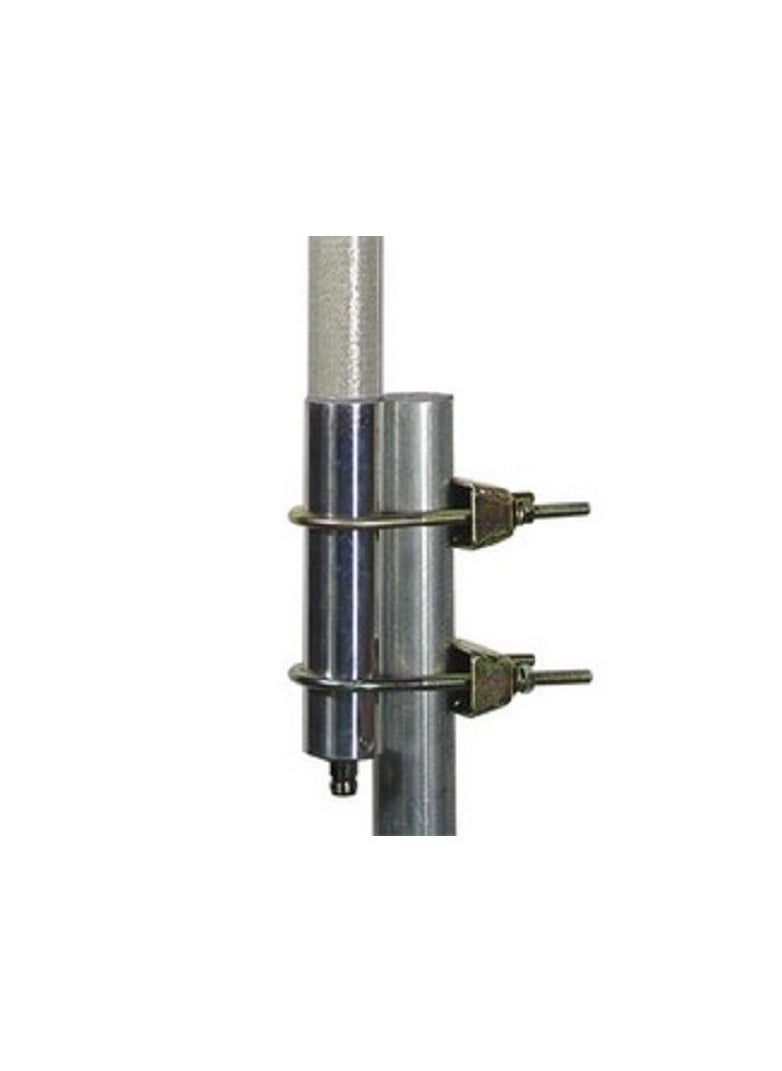

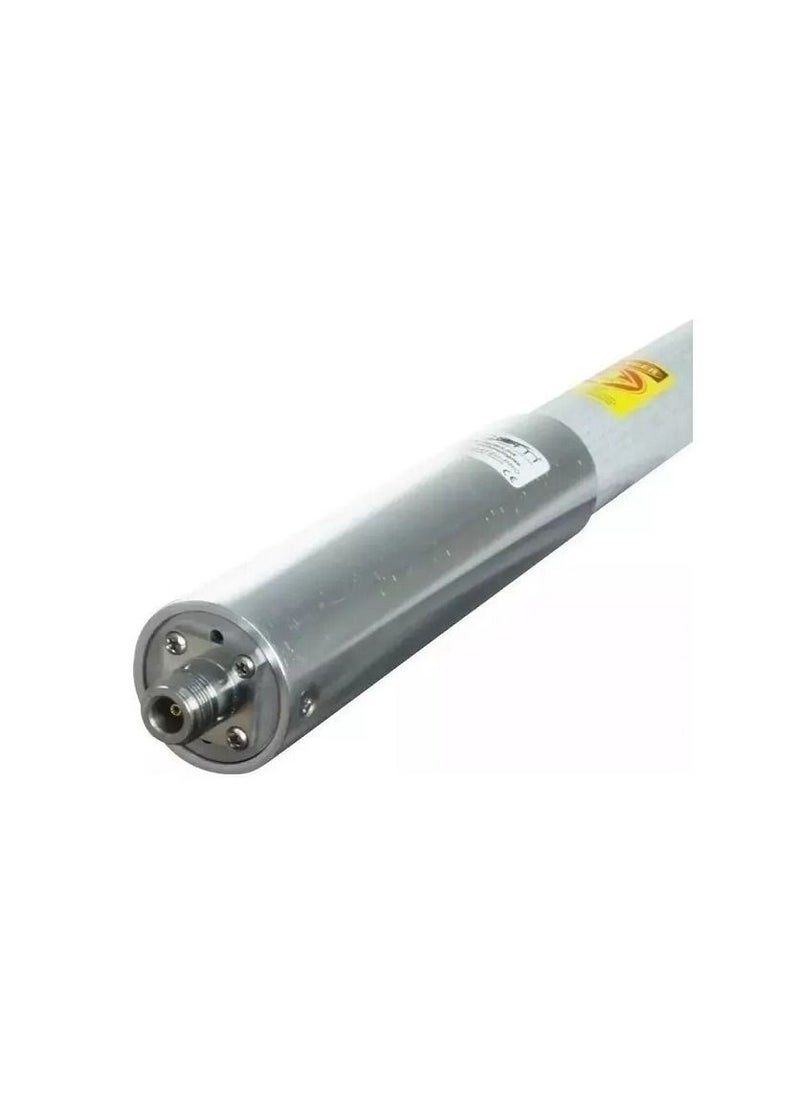

OverviewSuperior Performance A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs. A center fed collinear has radiating elements that are more uniformly fed with signals of the proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. In the HyperLink HG2415U-PRO, an internal copper hard-line provides a low loss path to the antenna's central splitting and phasing component. The brass radiating elements of the HG2415U-PRO utilize an air dielectric for lowest loss and superior radiating efficiency. The design is factory tuned for superior performance. Rugged and Weatherproof This antenna's construction features a durable fiberglass radome for durability and aesthetics. Its mounting system features twin heavy-duty mounting brackets and U-Bolts for superior strength. The thick brass elements provide long life in hostile environments. Features Heavy-duty steel mounting brackets Center fed collinear array Commercial grade antenna Integral N-Female connector Solid Brass Elements Application 2.4 GHz ISM Band Bluetooth® & Public Wireless Hotspot Supports IEEE 802.11b/g/n applications WiFi and 2.4 GHz wireless video systems
