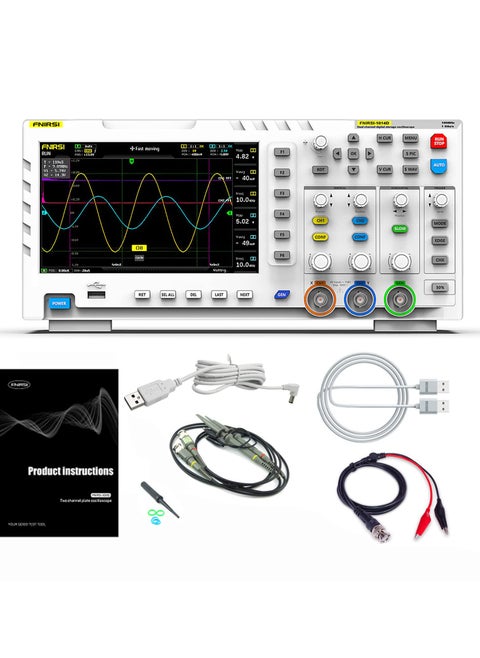

2 in 1 Digital Oscilloscope DDS Signal Generator Desktop Oscilloscope Capture Output Signal Function, 2 Channels 100Mhz Bandwidth 1GSa/s Sampling Rate Built-in 1GB Storage Space

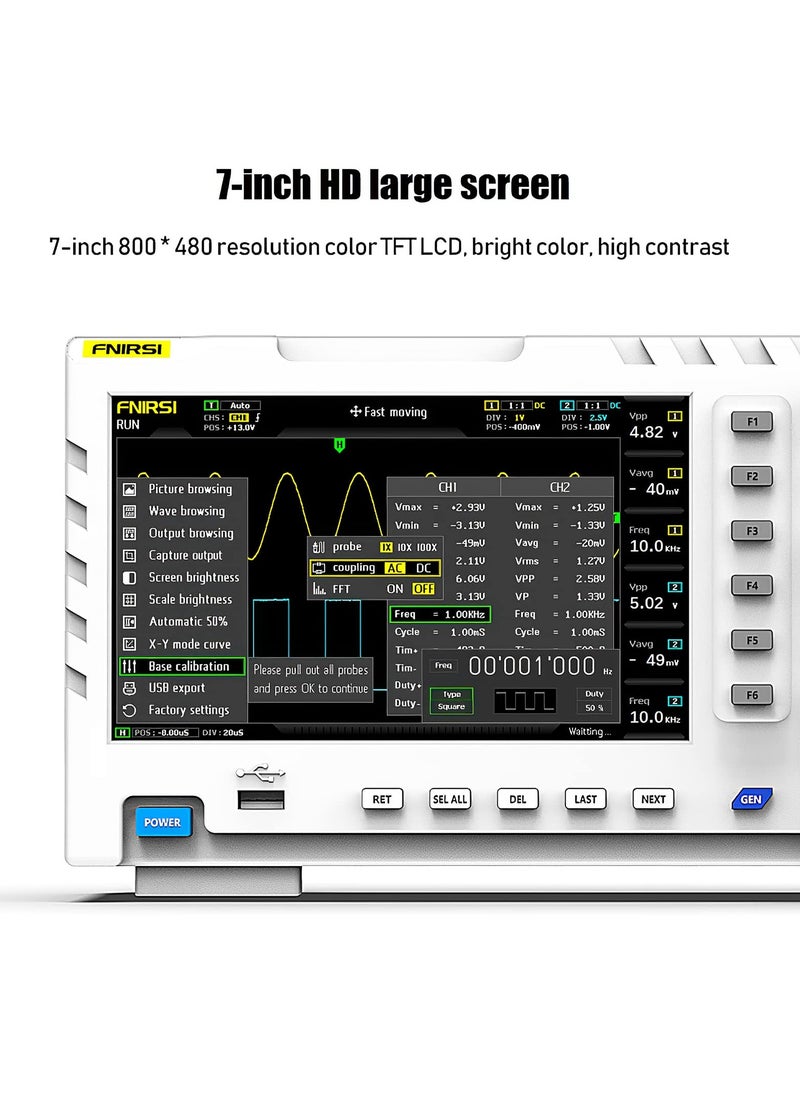

Overviewtwo in one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with 7inch TFT LCD display screen, the built-in high-voltage pro-tection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear, built in DDS function signal generator and the industry's ori-ginal chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. Come on and try it, it will not let you down. Specifications: Material: ABS Ana-log band width: 100MHz * 2 Number of channels: 2 channels Maximum real time sampling rate: 1GSa/s Vertical sensitivity: 50 mV/div ~ 500 V/div Horizontal time base range: 50S/div ~ 10nS/div Maximum test voltage: 40 V (1X probe), 400 V (10X probe) Storage depth: 240Kbit Input resistance: 1MΩ ADC precision: 8bits Coupling mode: AC/Direct Current Trigger mode: Single, Normal, Auto Trigger edge: Rising edge/Falling edge External trigger voltage 0~40 V Extension ports: USB picture export Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in Package weight: 1949g / 4.3lb Packing list: 1 * Oscilloscope Host 2 * Matching 100MHz Probe (1X and 10X） 1 * Clip 1 * 5V2A Eu Power Adapter 1 * USB Data Line 1 * English User Manual
