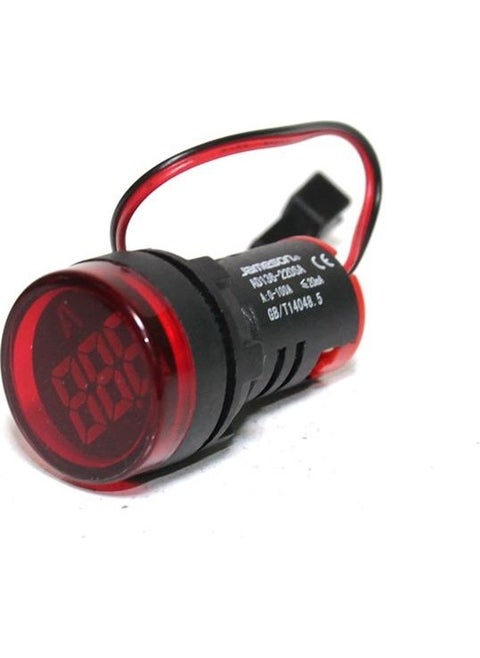

22mm 0-100A Led Current Transformer Ammeter Red

JAMESON 22 MM Red Led Ammeter with Current Transformer

Technicial Specifications

• With dimensions of 28.33x20.30x51.40 mm,
• 22 mm Mounting Hole Diameter,
• Single Phase AC Type,
• AC 220V (AC 24-550V) Input Voltage,
• AC 24/550V Measured Voltage Range,
• 0/100A Measured Ampere Range,
• Frequency Range for AC 50-60 Hz,
• 2500V AC Power Frequency Withstand Voltage, 1min 5, Contact Resistance: ≤50Ω
• Working Ambient Temperature Between -25 and +55°C,
• <90% Relative Humidity Environment,
• Refresh Rate of approximately 200 ms/times,
• %1(+-1) Accuracy Class,
• Body IP40, Panel Part IP67 Class Material,
• 11 mm Display Digit Height,
• 30,000 Hours Continuous Working Life,
• Red LED Display, Black Body Color,
• CE, CCC, IEC 947-5-1 and EN60947-5-1 Certified,
• 2 Year Manufacturer's Warranty.
