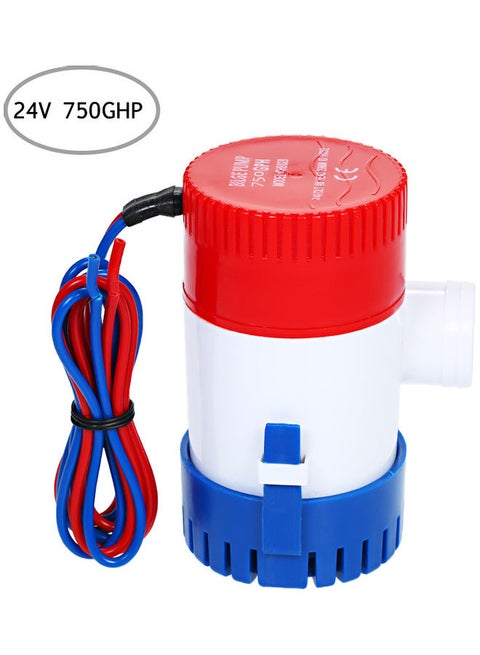

24V 750GPH Auto Bilge Pump With Float Switch Multicolour

Features:
You will purchased one of the best quality bilge pumps available in the industry. It was developed after years of experience, research and testing by our research staff and thousands of user.
It is built to give years reliable trouble free performance.
Silent and vibrationless operation.
Small size, high efficient, high capacity, low current and low noise.
Impact resistant ABS housing, stainless steel shafts, rust proof and corrosion resistant.
Easy-to-clean snap lock strainers.
Long-life motors, able to run dry for short periods.
All wire ends and terminals with heavy duty marine sealant and located above the highest possible water level by fastening with insulated staples or plastic straps.
Ideal for fishing boats, cruise ship, yachts, etc.
Specifications:
Material: Engineering Plastics
Packing: Carton
Type: Non-Automatic
Drive Mode: Electrodynamic
Pump Shaft Position: Horizontal
Impeller Structure: Enclosed
Impeller suction: Single Suction
Pump Lift: 3-5m / 118~197in
Suction Diameter: 19mm ( 3/4")
Length Of The Wire: 1m / 39in
Voltage: 12V , 24V (optional)
Flow Rate: 350GPH, 500GPH , 750GPH, 1100GPH (optional)
Model1-8 (optional):
(1)12V 350GHP: Current=1.8A, Pump lift=3m/117in, Suction/Discharge Diameter=19mm (3/4")
(2)12V 500GPH: Current= 2.2A, Pump lift=3m/117in, Suction/Discharge Diameter=19mm (3/4")
(3)12V 750GPH: Current= 2.5A, Pump lift=4m/156in, Suction/Discharge Diameter=19mm (3/4")
(4)12V 1100GPH: Current= 3.0A, Pump lift=4m/156in, Suction/Discharge Diameter=29mm (1/8")
(5)24V 350GPH: Current= 1.8A, Pump lift=3m/117in, Suction/Discharge Diameter=19mm (3/4")
(6)24V 500GPH: Current= 1.2A, Pump lift=3m/117in, Suction/Discharge Diameter=19mm (3/4")
(7) 24V 750GPH: Current= 1.5A, Pump lift=4m/156in, Suction/Discharge Diameter=19mm (3/4")
(8)24V 1100GPH: Current= 1.5A, Pump lift=4m/156in, Suction/Discharge Diameter=29mm (1/8")
Product Size: 11*5.7*5.7cm / 4.3*2.2*2.2in
Product Weight: 338g / 11.92oz
Package Size: 11.5* 10*9cm / 4.3*3.9*3.5in
Package Weight: 381g / 13.44oz
Tips:
1. Auto bilge pump can only be used for pumping water. It can not be used for other liquilds.
2. While installing,connect the pump's black wire to the negative(-) terminal and brown or brown white wire to the positive pole(+).
3.Use the suitable fuse.
4.The wire connections must be sealed by marine sealant.
5.All wires and connections must be above the bilge water level. Uniess necessary,please do not arbitrarily remove the insulator. Marine sealant oxidant should be used for all wires.
6.Not dry running.
Package List:
1 * Pump
1 * English User Manual
