2s 5A 7.4V (8.4V) Standard Bms Module

Explanation:

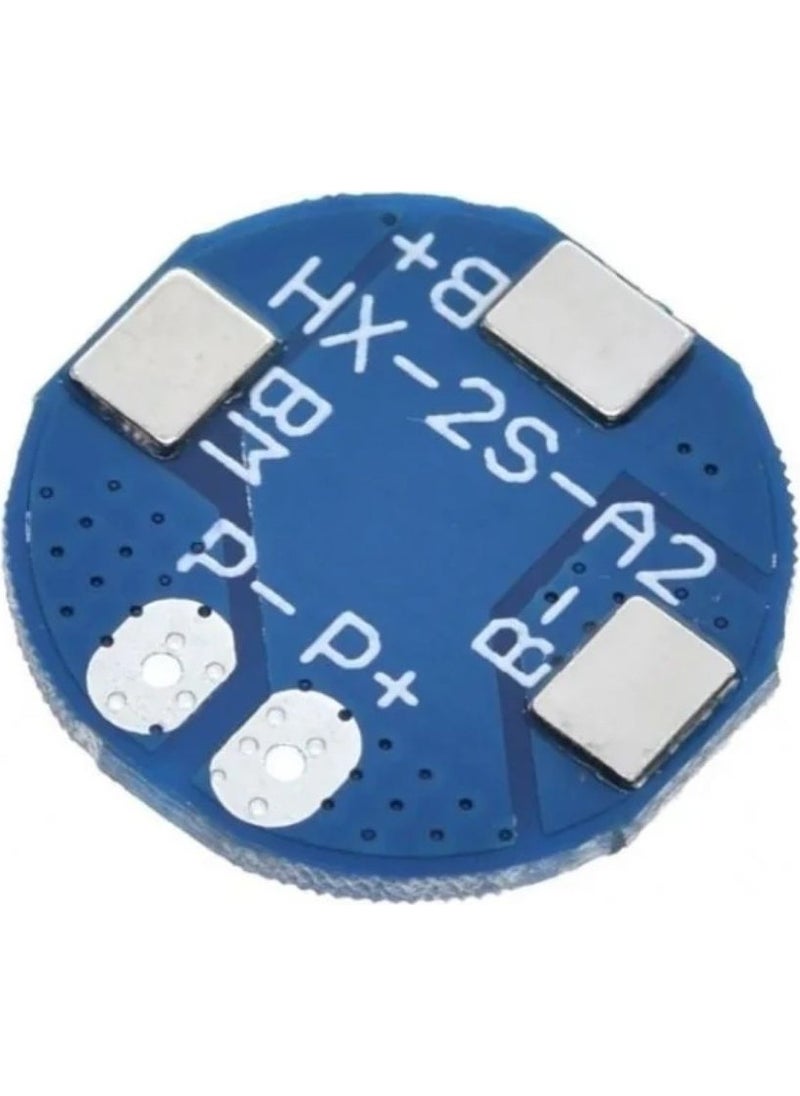

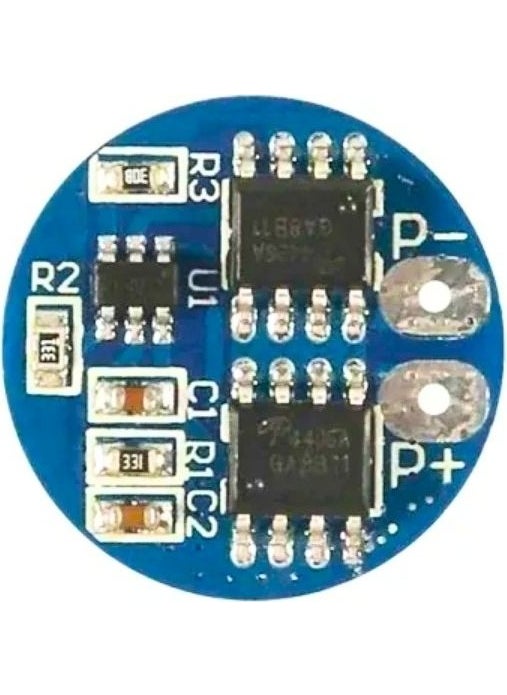

2S 5A 7.4V (8.4V) Standard Bms Module  Li-ion Battery Charger Protection Module is a PCB mounted Lithium Battery charger protection module. This small and smart BMS module comes with various features such as Short circuits, Overcharge, Overdischarge and Overcurrent protection. It is easy to install and useful for all your DIY portable projects.

2S 5A 7.4V (8.4V) Standard Bms Module   Li-ion Battery Charger Protection Module has a Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2 or load short circuit). MOS transistors can control battery charging and discharging.

Therefore, a BMS may also have a pre-charge system that provides a safe way to connect the battery to different loads and eliminates excessive inrush currents to the load capacitors.

Features:
Overcharge Detection Voltage: 4.25-4.35V±0.05V
Overdischarge Detection Voltage: 2.3-3.0V±0.05V
Maximum Working Current: 5A
Transient Current: 8A
Working Temperature: -40/50℃
Static current: less than 10uA
Size: 17.5

Protections:
Short circuit protection
Overcharge protection
Over discharge protection
Overcurrent protection
