2UUL POWER X Real-time Voltage Current Display Tester

Highlights

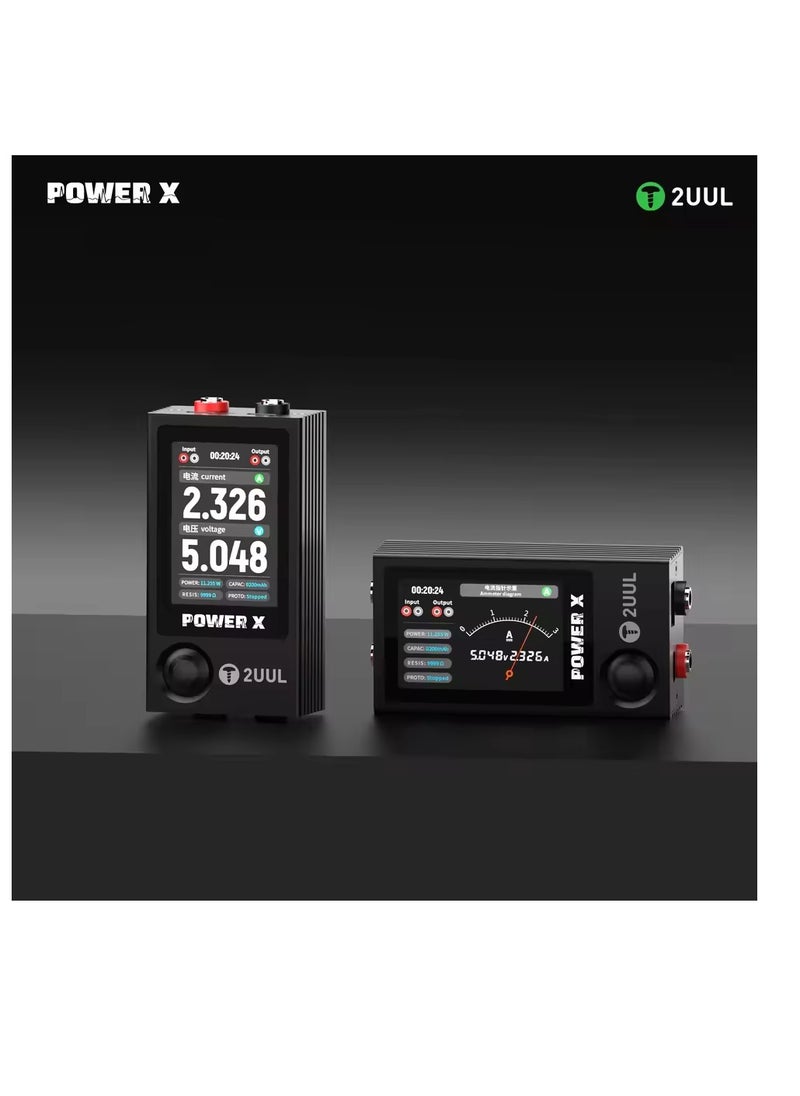

• 2UUL Power X current and voltage measuring instrument with 2.4-inch HD screen displays current curve, current pointer, load resistance, cumulative capacity and other parameters in real time.
• 2UUL Power X has functions such as multi-channel intelligent switching, gear intelligent switching, overcurrent prompt, data line reverse connection prompt, etc., which is suitable for mobile phone and laptop repair.
• Record the current fluctuation during equipment operation.
• Accurate data measurement, conventional pointer meters, which can meed three modes: digital display, curve, and pointer
• 2UUL POWER X tester has 3 independent channels and can be inserted into multiple channels simultaneously, the current display channel can be viewed through the display interface. - Banana head interface: the test voltage is less than 3V and requires auxiliary power supply though firmware upgrade input port(the equipment power supply must meet the power supply range of DC 4-30V). - Type-C interface: some double headed TYPE-C PD charging cables should be connected in reverse, which will affect the fast charging function. The device detects the direction of data cable insertion though intelligent algorithms, and the reverse connection has an alarm prompt. Simply turn the input terminal. - USB interface: DC 5V output voltage, 500mA Maximum output current.
• Display interface: - Digital parameter interface: accumulated startup time, input channel indication, output channel indication, real time power, accumulated capacity, real time load resistance, device status, real time current, real time voltage. - Current curve interface: Auto gear switching, switch the optimal display mode based on the current maximum test current. - Current pointer interface: A auto gear switching, switches the optimal display mode based on the current maximum test current (real time current/real time voltage).

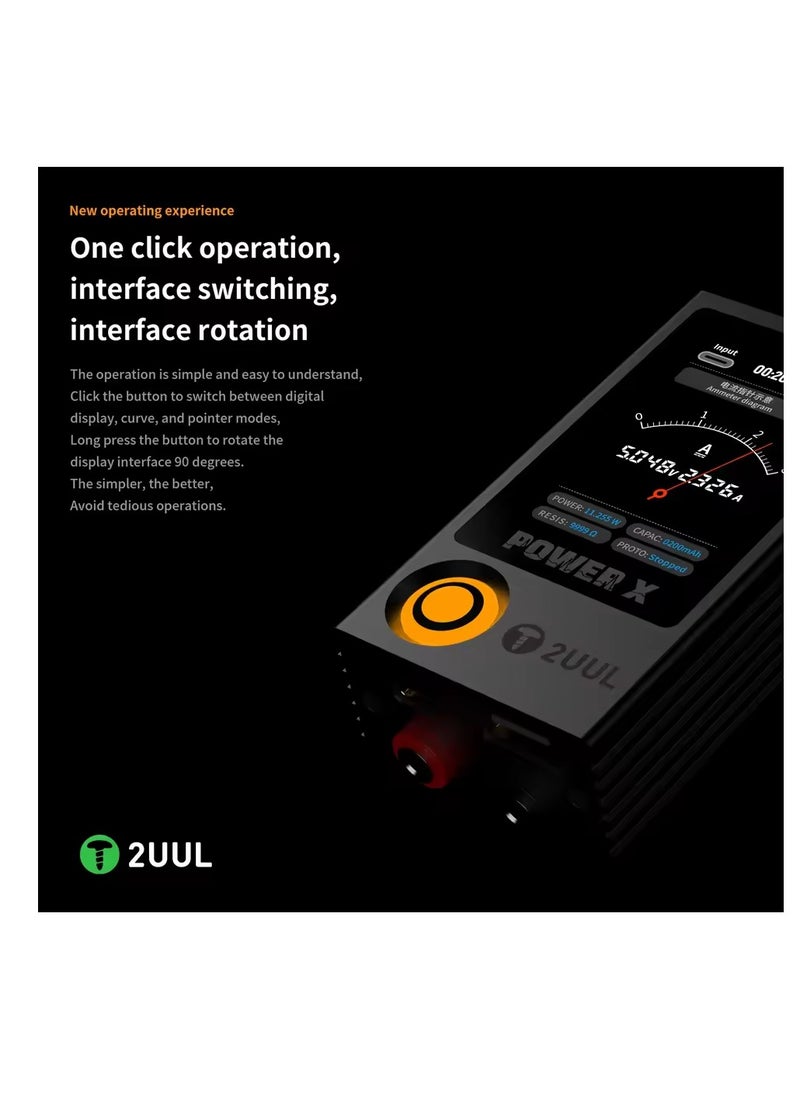

• Short press the button to switch the interface. - Long press the button to rotate the interface.
• Overcurrent alarm: current exceeds the range, please disconnect the load. - Type-C reverse insertion alarm: please transfer the type-C port input.
