silvercnc - 3000W Off The Grid Solar Inverter 110V/220V with 80A MPPT Solar Charger Controller, Pure Sine Wave Hybrid Inverter Support Split Phase for 48V Battery Off The Grid Solar Home Use Solar Power Inverter - Image 1

Available Soon

silvercnc

3000W Off The Grid Solar Inverter 110V/220V with 80A MPPT Solar Charger Controller, Pure Sine Wave Hybrid Inverter Support Split Phase for 48V Battery Off The Grid Solar Home Use Solar Power Inverter

Sorry! This product is not available.

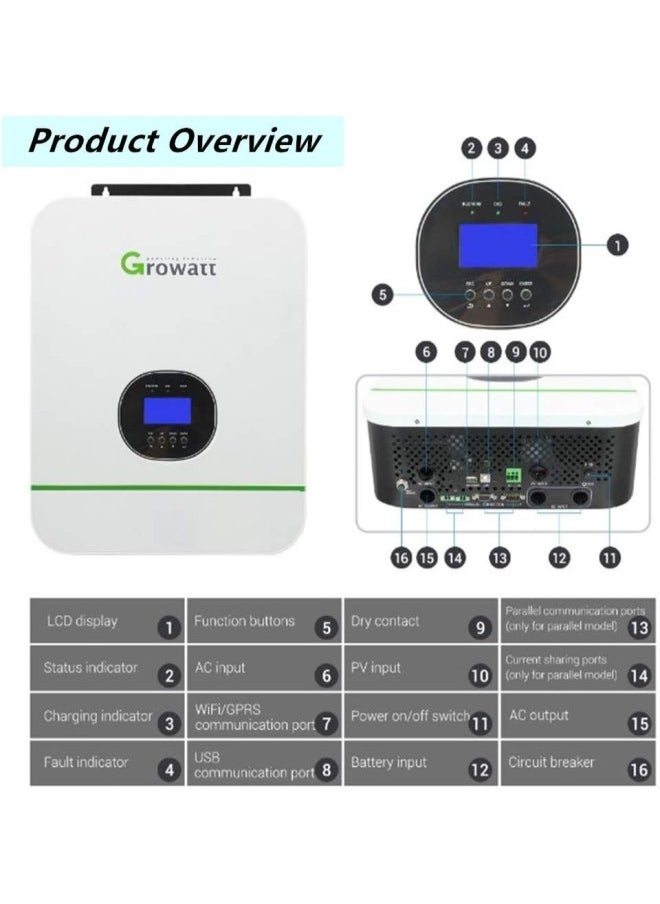

Product Overview

Highlights

❃【3000W MPPT Solar Inverter】3000W off the grid 48V solar inverter, a combination of 3000W pure sine wave inverter , a 80A MPPT charge controller (Advanced MPPT technology charging with an efficiency of 99.9% ), and UPS function module in one machine. Very suitable for power grid backup power shutdown and application. It is packed with unique features and it is one of the most advanced inverter in the market today.
❃【Support 4 Charging Modes & 3 Output Modes】 Four modes charging your battery: Solar first mode; Utility first mode; Charging by Utility and solar; Only solar. Three modes output working fit your load, Solar first; Utility first(Default); SBU Priority. Smart battery charger design for optimized battery performance, work with 48V battery, compatible with the electrical grid ,mains voltage or diesel generator power.

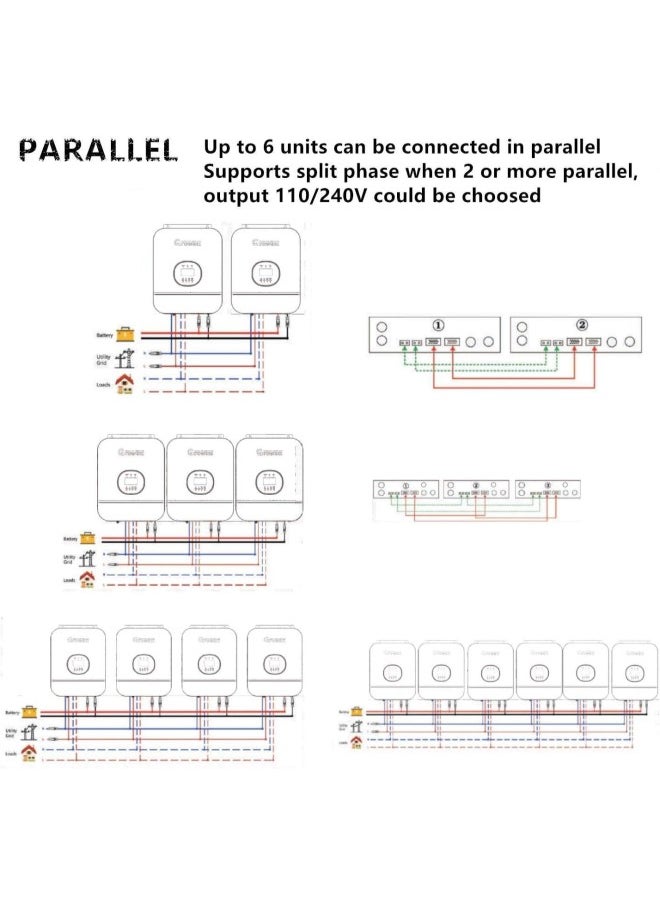

【Parallel Operation up to 6 Unit】 Output 110/120V, 60Hz/50Hz can be setting, can operate a wide variety of appliances, could be used in parallel with two different modes, max 6 units work together to support three-phase equipment. Could power AC household appliances or large electrical equipment in travel or work places, it is ideal for supplemental RV power and overnight power or long-time applications, is very suitable for use on roads and remote work locations or wherever AC power is needed.
❃【Mobile Phone Remote Monitoring】Supports multiple monitoring methods, the GPRS WiFi 1 module is a plug-and-play monitoring device to be installed in the inverter. Using this device, users can monitor the status of the photovoltaic system via mobile phones or websites anytime and anywhere. The transformerless design provides reliable power conversion in a compact size, pure sine wave inverter ensures our inverter produce power that is as reliable as the power you get from your outlets at home.
❃【Solar Inverter Built in 80A Controller Offers Multiple Protection】AC input over voltage protection/AC input low voltage protection /Over temperature protection/Over load protection/ Short circuit protection / Reverse protection/Deep discharge protection, etc. Cold start function,and automatic restart while AC is recovering to well protect your system. We offer our customer service will serve you online 24 hours a day , if any questions, please contact us directly.

Overview

3000W Off The Grid Solar Inverter

INTRODUCTION

This is a multifunctional solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for backup power and self-consumption applications.

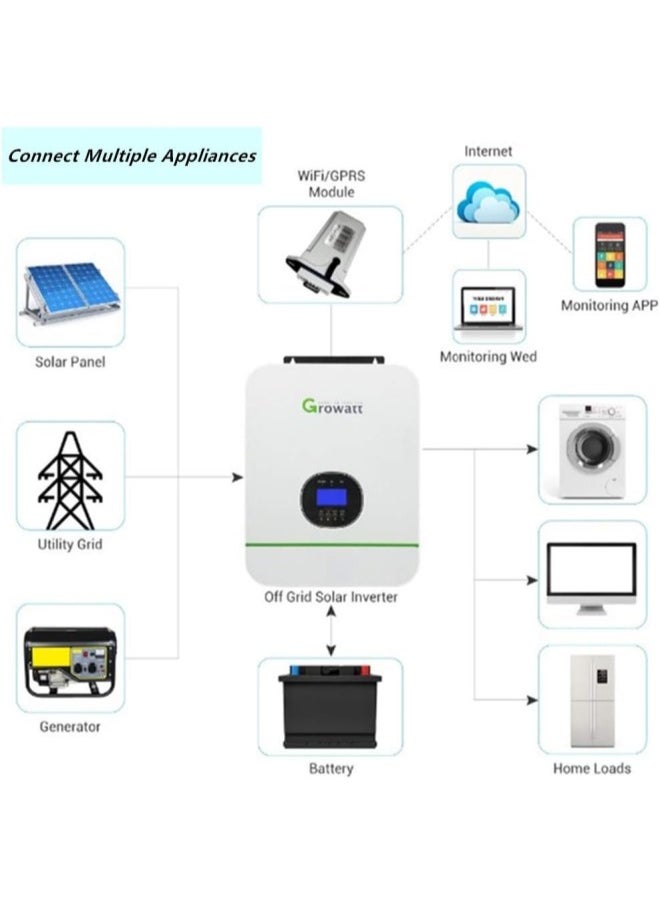

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements.

Mobile Phone Remote Monitoring

The WiFi 1 GPRS module is a plug-and-play monitoring device to be installed on the inverter.
With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

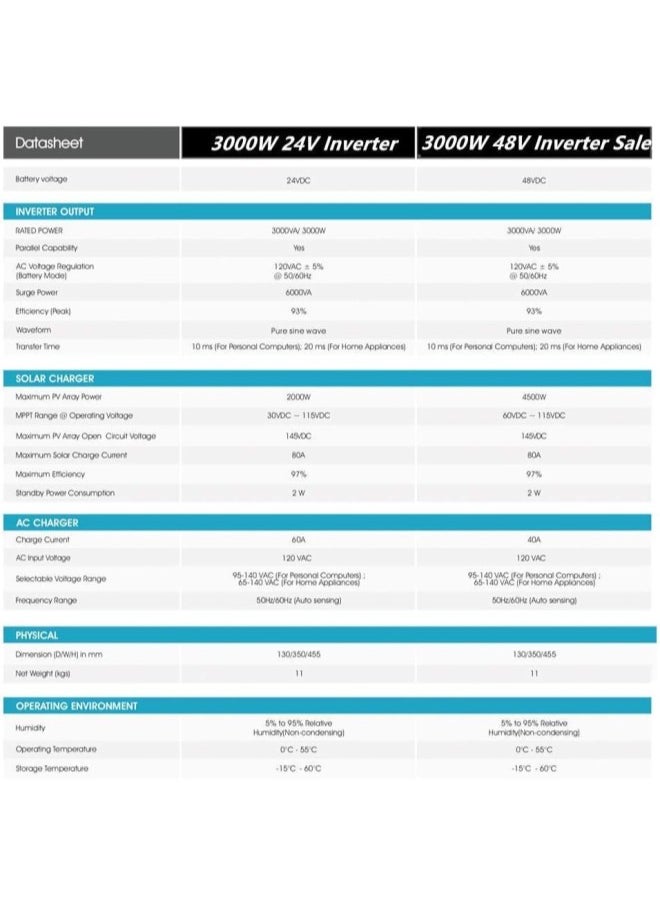

Inverter Parameter

Input Voltage Waveform: Utilily or GeneratorInput voltage: 120V AC
MAX AC input Voltage: 150V AC
Input Frequency: 50Hz/60Hz
Efficiency: >95% (Rated R load, battery full charged)
Output voltage regulation: 120VAC
Rate output power: 3KVA/3KW
Output frequency: 60HzPeak efficiency: 93%
Nominal DC input voltage: 48VDC
High DC recovery voltage: 56.4VDC
High DC Cut-off voltage: 60.8VDC

Charging Parameter

USE Solar energy charge your battery:
PV Array MPPT voltage range: 60-115V DC
Max. PV Array Open Circuit voltage: 145V DC
USE Utility charge your battery:
Bulk Charging voltage: Flooded Battery 58.4VDC, AGM/GEL 56.4VDC
Overcharge Protection: 60VDC
Floating Charging Voltage: 54VDC
MPPT charging efficiency: 98%
Charging Algorithm: 3 Step MPPT charge

Package Contain

1* Unit
1* User manual
1* USB communication cable
1* Software CD

Four Charging Modes

Solar first mode: Use solar energy charge your battery, Utility power will charge battery only solar power not available.
Only solar: Only use solar power charge your battery.
Charging by Solar and Utility .
Utility first mode: Use Utility power charge your battery, solar energy will charge battery only Utility power not available.
NOTE:IF this pure sine wave off the grid solar inverter is working in Battery mode or Power saving mode, only solar energy can charge battery.

Three Output Modes

Utility first(Default): Utility power your load as first priority, battery power andsolar on when Utility not available.
Solar first: solar energy power your load, battery energy active when solar power doesn't work.
SBU Priority: Solar power first, then battery power, then Utility.

Silent Without Interference

Low noise at work.
So quiet, your neighbors will thank you.
This makes it ideal for camping, supplemental RV power and any other activity that requires quiet operation.

48V Pure Sine Wave Inverter

Before using this inverter, please read instructions carefully. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Be careful when working with metal tools on or around batteries. Never wire a frozen battery, make sure your battery is full when connect.
