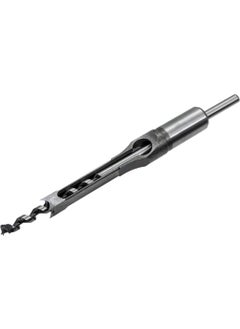

3708 Square Hole Mortising Wood Drill Bit 8 mm

Overview

Attention:



Suitable for density board, medium fiber board, chipboard, wood and other wood products
Suitable for square hole drilling machine, square tenoning machine
U-shaped long chip drainage grooves design facilitates chip evacuation, improves drilling efficiency
Drill bits are made of bearing steel, with high hardness and long service life after overall heat treatment
Drill sleeve designs, the force of the edge of the drill sleeve is in one plane, effective protection to prevent cracking situation at the beginning of use.
Universal handle shape at the end of the drill is designed circular, to make clamping more stable

Dimension: 8 mm
D1: 8mm
D2: 19mm
D3: 5.8mm
L1: 54mm
L2: 39mm
L3: 227 mm
L4: 138mm

Weight: 140 grams
Order Code: TITI.3708
EAN Code: 8689416560050

This product is a product used with a connection apparatus, it cannot be used directly by attaching it to hand drills or column drills. It is a drill bit that can be used by those who have a tool.Titi 3708 Square Hole Mortising Wood Drill Bit 8 mm
