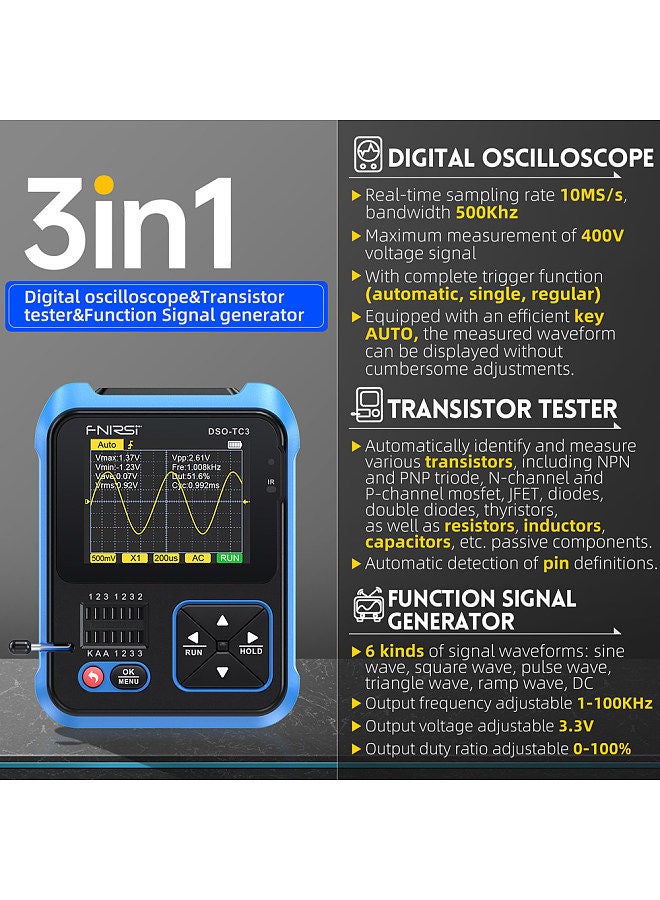

3in1 Digital Oscilloscope Transistor Tester Function Signal Generator Meter Handheld Oscilloscope 2.4inch TFT Display 10MS/s Sample Rate 500KHz Bandwidth Oscillometer

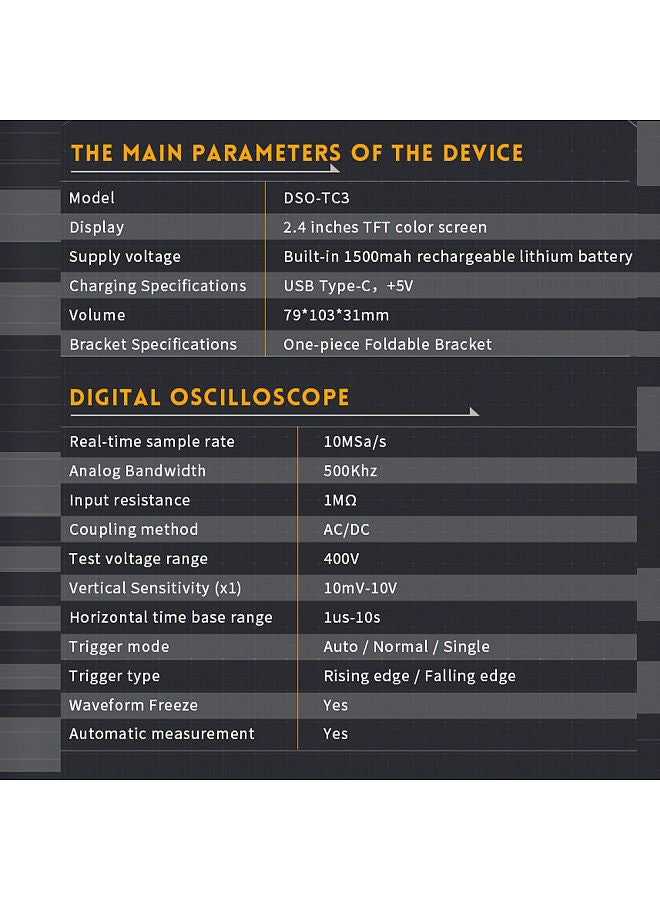

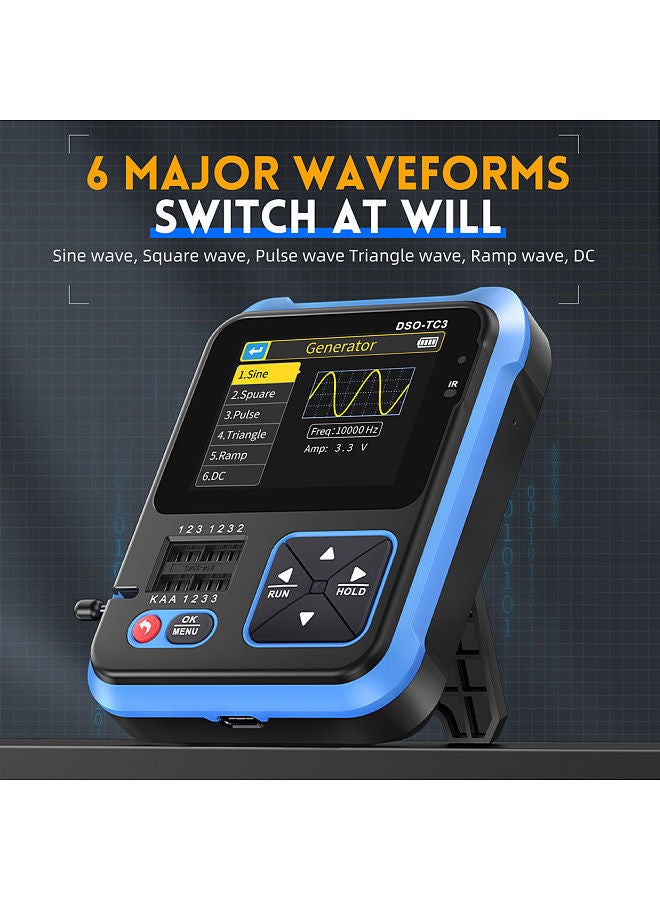

Specifications: Name: 3in1 Digital Oscilloscope Material: ABS Type: high configuration Display: 2.4 inches TFT color screen Battery: Built-in 1500mah rechargeable lithium battery (included) Charging interface: USB Type-C, +5V Digital Oscilloscope: 10MSa/s Real-time sample rate: 500Khz Analog Bandwidth: 1ΜΩ Input resistance: Alternating Current/Direct Current Coupling method: 400V Test voltage ranges: 10mV-10V  Vertical Sensitivity (x1): 1us-10s Horizontal time base ranges:  Trigger mode: Auto / Normal / Single Trigger type: Rising edges / Falling edges Waveform Freeze: Yes Automatic measurement: Yes Transistor Tester: Capacitor: 25pF~100mF Resistor: 0.01Ω ~ 50ΜΩ Inductor: 10uH~1000uH Battery: 0.1~4.5V Input voltage: 0~40V DS18B20: 0-85℃ DHT1: 0-60°C/5-95% Signal Generator: Sinewave: 1-10KHz/0-3.3V/50% Squarewave: 1-100KHz/3.3V/50% Pulsewave: 1-100KHz/3.3V/0-100% Trianglewave: 1-10KHz/0-3.3V/50% Ramp: 1-10KHz/0-3.3V/0-100% Direct current: 0-3.3V Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in Package weight: Standard configuration: 300g / 10.58ounce High configuration: 345g / 12.17ounce
