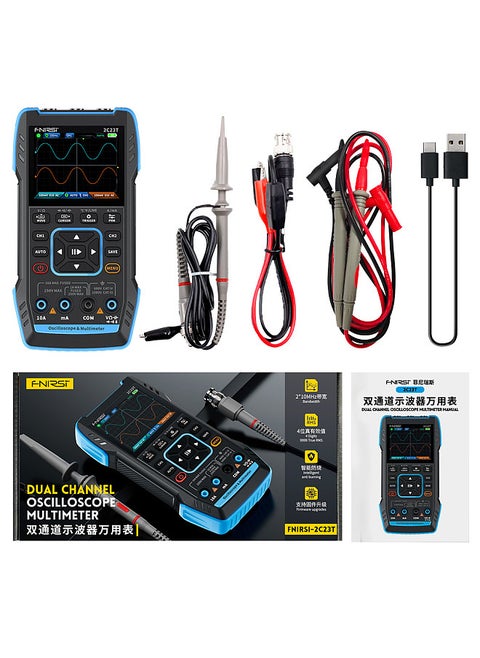

3in1 Oscilloscope Multimeter Signal Generator Machine 2.8inch IPS Display Oscope Meter Handheld Oscilloscope 10Mhz Bandwidth 50MSa/s Sampling Rate Dual Channel Oscillometer

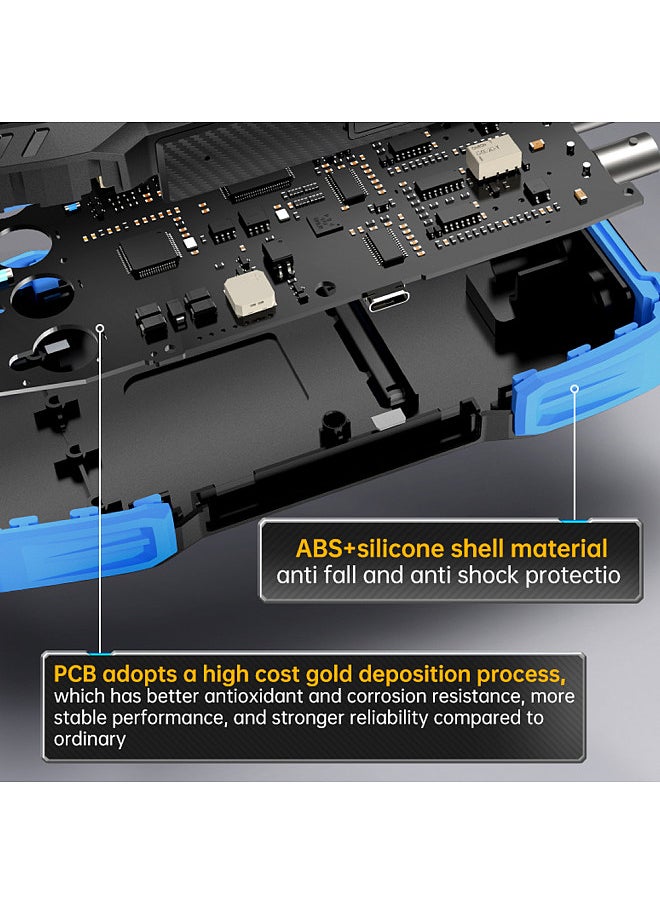

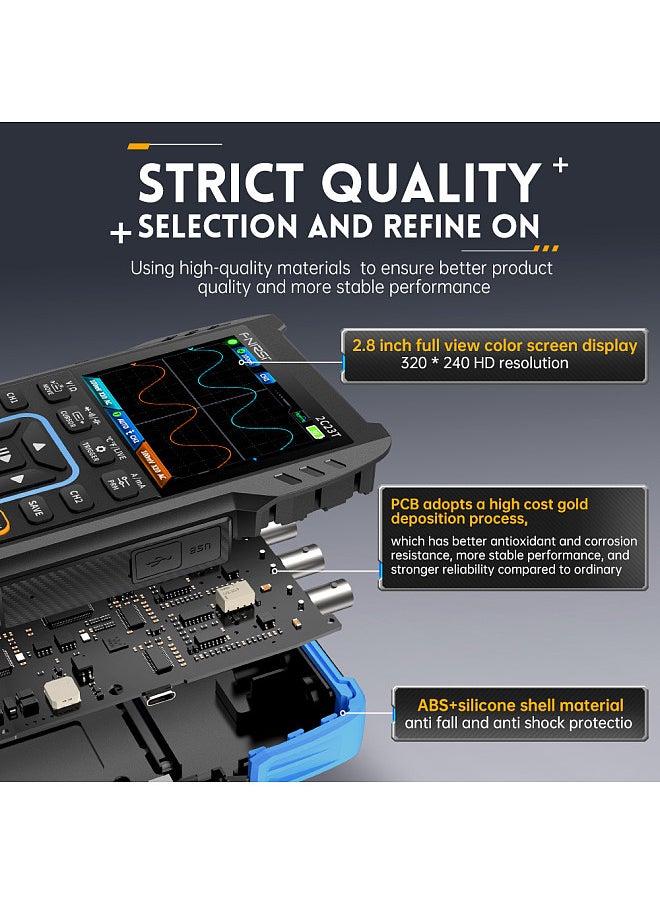

3in1 design, this product ingeniously integrates digital oscilloscope, multimeter, and signal source functions in one device. Equipped with a 2.8-inch IPS display. Multifunctional design, with voltage, current, resistance, capacitance, diode, and continuity test. Built-in waveform signal generator, it can output 7 kinds of waveforms, such as sinewave, squarewave, trianglewave, and so on. Dual channel oscilloscope function, with 10MHz bandwidth and 50MSa/s sampling rate. With perfect trigger function (automatic, single, normal). One button automatic adjustment will display the measured waveform, support waveform screenshots saving function, and you can export pictures to the computers, convenient for secondary waveform analysis. Features: High-precise Multimeter: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner). Digital Oscilloscope Function: The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, capturing waveform details without loss. With a real-time sampling rate of 50MS/s, 10Mhz bandwidth, built-in high-voltage protecting module, maximum support measured voltage of ±400V. Equipped with complete triggering function(automatic, single, normal) . Equipped with efficient automatic adjustmem.the measured waveform can be displayed without complicated adjustment. Support saving waveform screenshots, support exporting images to the computers, facilitate secondary waveform analysis. Intelligent Anti-burning: Full-grade overload protections, built-in intelligent anti-burn chip, and double ceramic fuses, to prevents the misuse of burn meter, safer to use. Specifications: Name: 3in1 Oscilloscope Multimeter  Material: ABS+silicone Type: standard configuration, high configuration (optional) Battery: 1 * built-in 3000mAh lithium battery (included) Display: 2.8inch color display, 320*240 Charging interface: Type-C 5V, 1A Oscilloscope: Real-time sample rate: 50Msps Analog Bandwidth: 10MHz Storage: 32Kb Impedance: 1ΜΩ Time Base: 5ns-10s Vertical sensitivity: 20mV/div~10V/div Peakvoltage:  ±40V Trigger mode: auto/normal/single Trigger type: rise/fall  Display mode: YT/roll Coupling: Alternating Current / Direct Current Screenshot: support Computerized viewing of waveforms: support Function Signal Generator: Channel: single channel Frequency: 1Hz-2MHz Amplitude: 0.1-3.3V Multimeter:  DCvoltage: 9.999V/99.99V/999.9V, ±(0.5%+3) AC voltage: 999V/99.99V/750.0V, ±(1%+3) DC current: 9999uA/99.99mA/999.9mA/9.999A, ±(1.2%+3) AC current: 9999uA/99.99mA/999.9mA/9.999A, ±(1.5%+3) Resistance: 9.999ΜΩ/999.9ΚΩ/99.99ΚΩ/9.999ΚΩ/999.9Ω, ±(0.5%+3); 99 99MΩ, ±(1.5%+3) Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, ±(2.0%+5); 9.999mF/99.99mF, ±(5.0%+20) Temperature: (-55-1300℃)/(-67-2372°F); ±(2.5%+5) Diode: support On/off: support Fireline detection: support Item size: 167 * 85 * 34mm / 6.57 * 3.35 * 1.34in Item weight: 290g / 10.23ounce Package size: 258 * 130 * 85mm / 10.16 * 5.12 * 3.35in Package weight: Standard configuration: 618g / 21.80ounce High configuration: 694g / 24.48ounce Packing List(Standard Configuration): 1 * 3in1 Oscilloscope Multimeter  1 * 10X Probe 1 * Clip Probe 1 * Meter Pen 1 * Cable 1 * Guideline OR Packing List(High Configuration): 1 * 3in1 Oscilloscope Multimeter  2 * 10X Probe 1 * Clip Probe 1 * Meter Pen 1 * Cable 1 * Guideline
