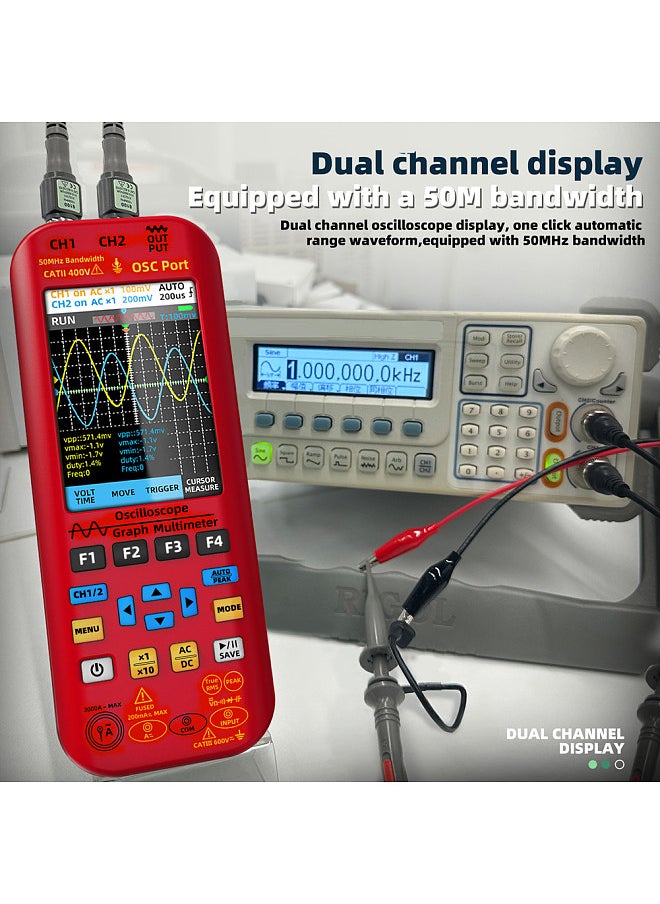

3in1 Oscilloscope Multimeter Signal Source 3.98inch TFT Display Oscope Meter Handheld Oscilloscope 50Mhz Bandwidth 250MSa/s Sampling Rate Dual Channel Oscillometer

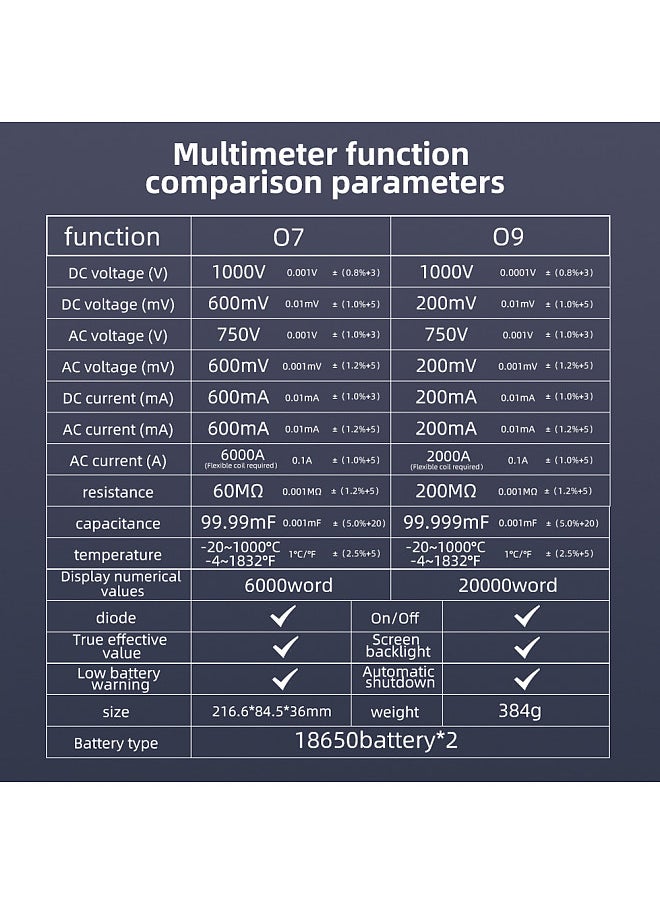

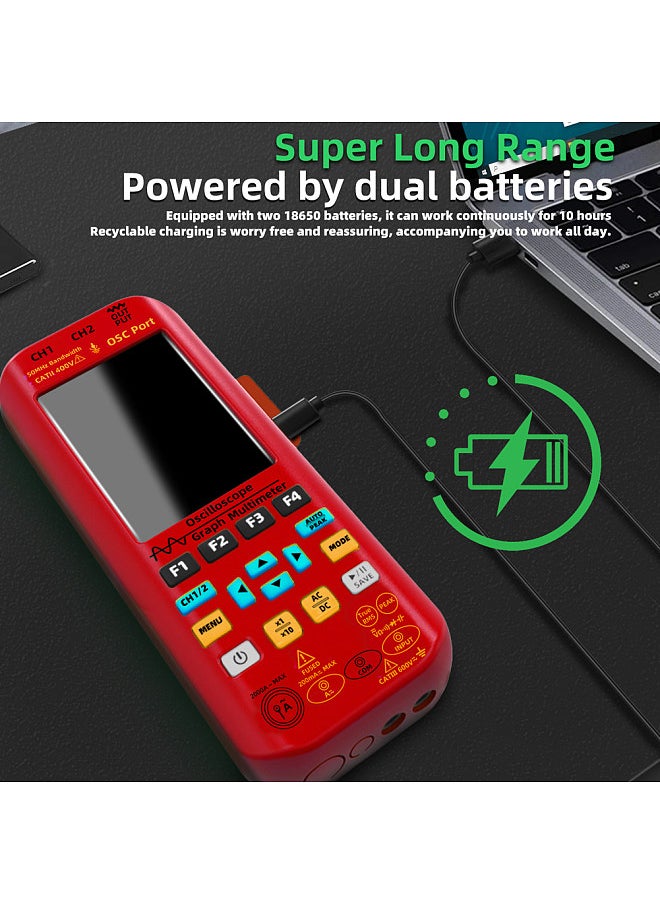

OverviewSpecifications: Name: 3in1 Multimeter Material: plastics+silicone Basic Parameter Battery: 2 * built-in 6000mAh battery (included) Screen size & resolution: 3.98 Inch TFT display Display value: 20000 count Screen backlight: √ Low battery reminder: √ Automatic shutdown: √ Working environment: 0-40℃, ＜75%RH Storage environment: -20℃ to 60℃, ＜80%RH Item size: 216.6 * 84.5 * 36mm / 8.53 * 3.33 * 1.42in Item weight: 384g / 0.85lb Package size: 240 * 128 * 73mm / 9.45 * 5.04 * 2.87in Package weight: 945g / 2.08lb Multimeter DCvoltage: 2.0000V/20.000V, ±(0.8%+3); 200.00V/1000V, ±(1.0%+5); 20.000mV, ±(1.0%+5); 200.00mV, ±(0.8%+3) ACvoltage: 2.0000V/20.000V, ±(1.0%+3); 200.00V/750V, ±(1.2%+5); 20.000mV, ±(1.2%+5); 200.00mV, ±(1.0%+3) AC voltage frequency response: 40Hz-1kHz DCcurrent: 20.000mA/200.00mA, ±(1.0%+3) ACcurrent: 20.000mA/200.00mA, ±(1.2%+5) Flexible current clamp/AC Current(A): 200.0A/2000A, ±(1.0%+5) Resistance: 200.00Ω, ±(1.2%+5); 2.0000KΩ/20.000KΩ/200.00KΩ, ±(1.0%+3); 2.000MΩ/20.00MΩ, ±(1.5%+5) Capacitance: 999.99nF, ±(5.0%+20); 9.999uF/999.99uF, ±(4.5%+5); 99.999mF, ±(5.0%+10) Temperature: (-20~1000℃)/(-4~1832℉), ±(2.5%+5) Diode: √ Connectivity: √ Signal Generator Channel: Single channel Frequency: 0-2MHz Channel: 1 Amplitude: 0.1V-3.0V Squarewave duty cycle: 1-99% Signal type: sinewave, squarewave, sawtoothwave, halfwave, fullwave, direct current signals, direct current Minimum resolution: 1Hz Oscilloscope Channel: Dual channel Analogue bandwidth: 50MHz Real-time sample rate: 250MSa/s Input coupling: Direct Current/Alternating Current Storage depth: max 128kByte Input impedance: 1MΩ,@16pF Probe attenuation: X1/X10 Maximum input voltage: X1 ＜150V, X10 ＜300V Sampling rate ranges: 1.5Sa/s-250MSa/s Waveform interpolation: (sinx)x Sweeprange: 100ns/div-20s/div Timebase accuracy: 20ppm Displacement ranges: 4 frames (positive and negative) Analogue bandwidth: 50MHZ Low frequency response: > 10HZ Rise time: ＜ 10ns Direct current gain accuracy: ±3% Automatic measurement: period, frequency, peaktopeak, maximum value, minimum value, duty cycle, root meansquare Trigger mode: automatic/normal/singleTrigger edges: rising/falling edges Signal generator output: squarewave, sawtoothwave, halfwave, fullwave Afterglow time: Min, 500ms, 1s,10s, Unlimited
