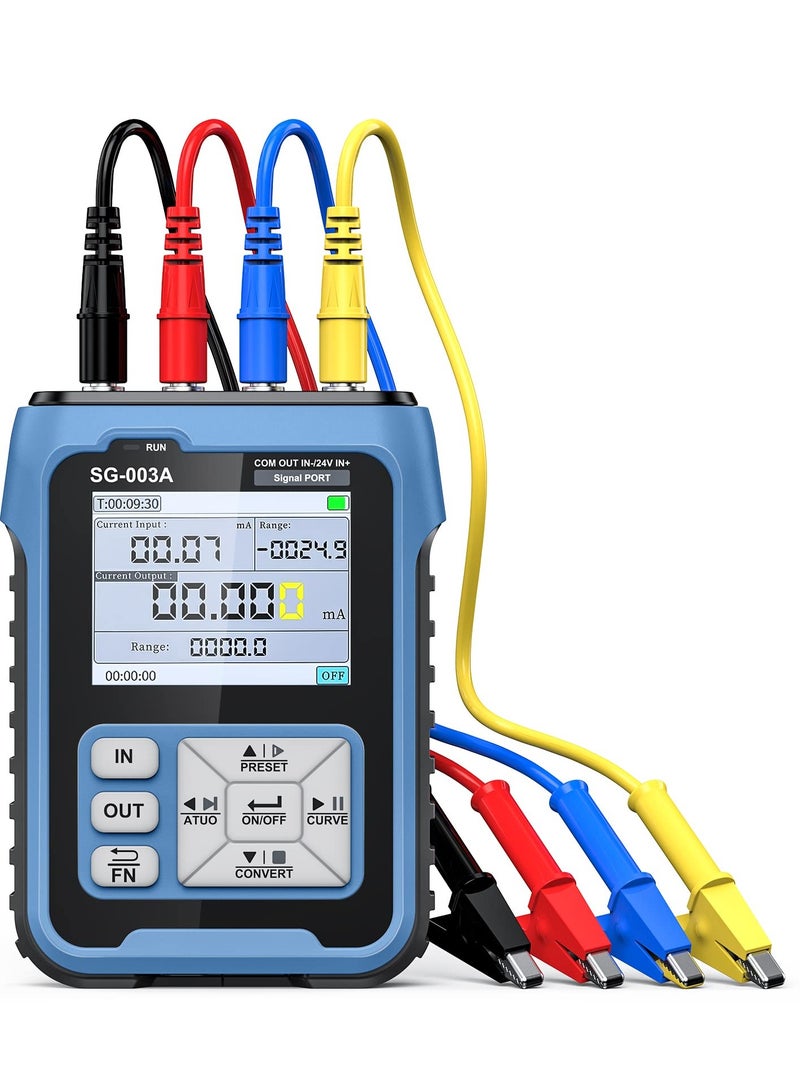

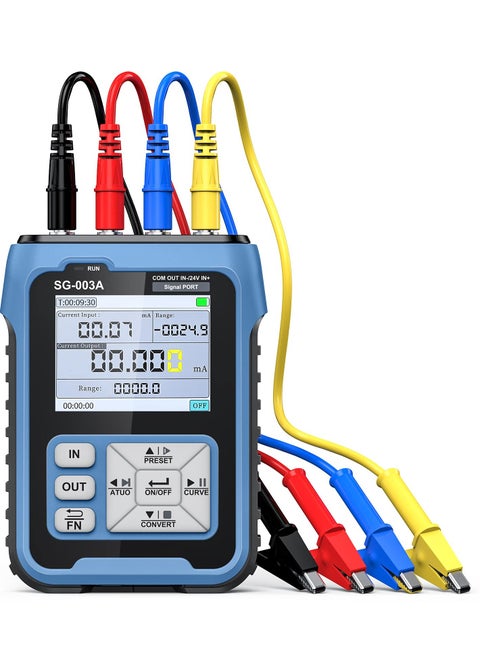

4-20mA 0-24V Current Signal Generator, Current Voltage Adjustable Analog Simulator, Real-time Curve, Multiple Signal Types, 3000ma-h USB Rechargeable, Preset Value, for PLC Testing

Upgraded 0-24mA/ 0-24V Current Signal Generator, Real-time Curve, Multiple Signal Types, 3000ma-h USB Rechargeable, Preset Value

* Our Advantages of the 0 to 24 ma Signal Generator*

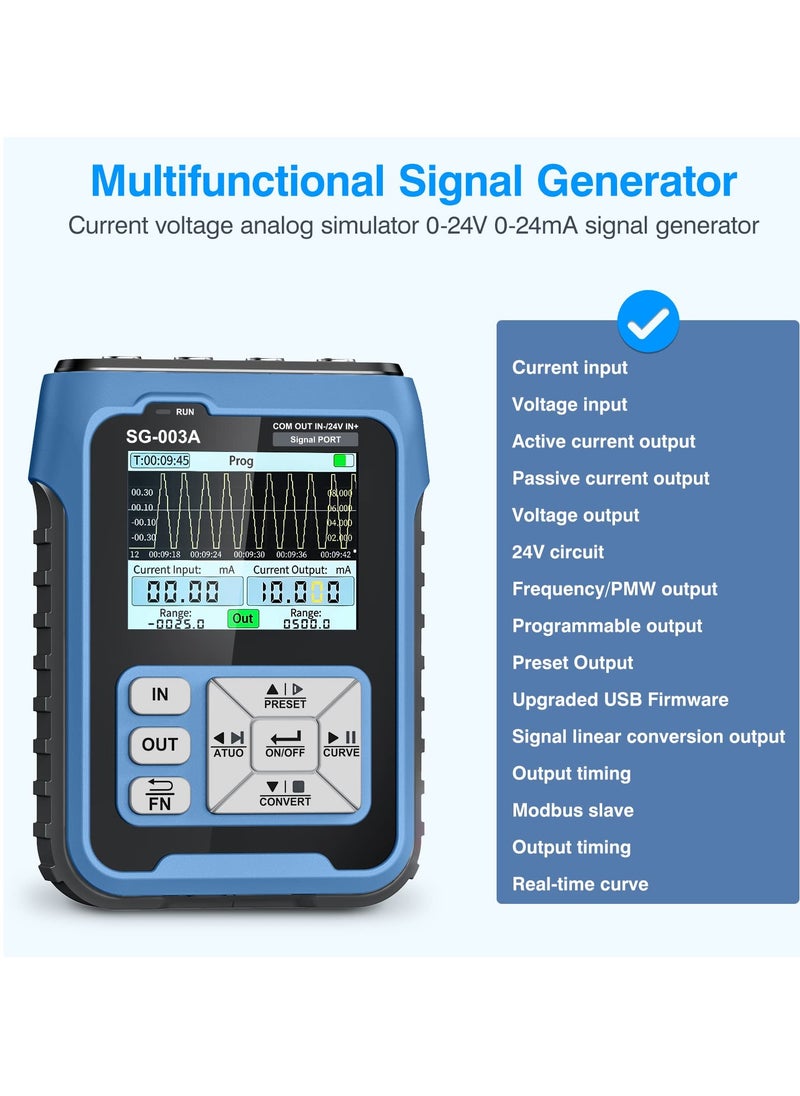

Precise Conversion of Various Signal Types --- The 2022 version signal generator is upgraded to support switching various signal modes available under different signal types: mA Current Signal(0 to 24 mA, precision 0.01mA), V Voltage Signal(0 to 24V, 0.01V), XMT Passive Current Signal(0 to 24mA,precision 0.01mA), Hz Pulse Signal(Frequency Output 0 to 9999Hz, precision 5 digits). The input signal can be converted into an output signal among different physical quantities.

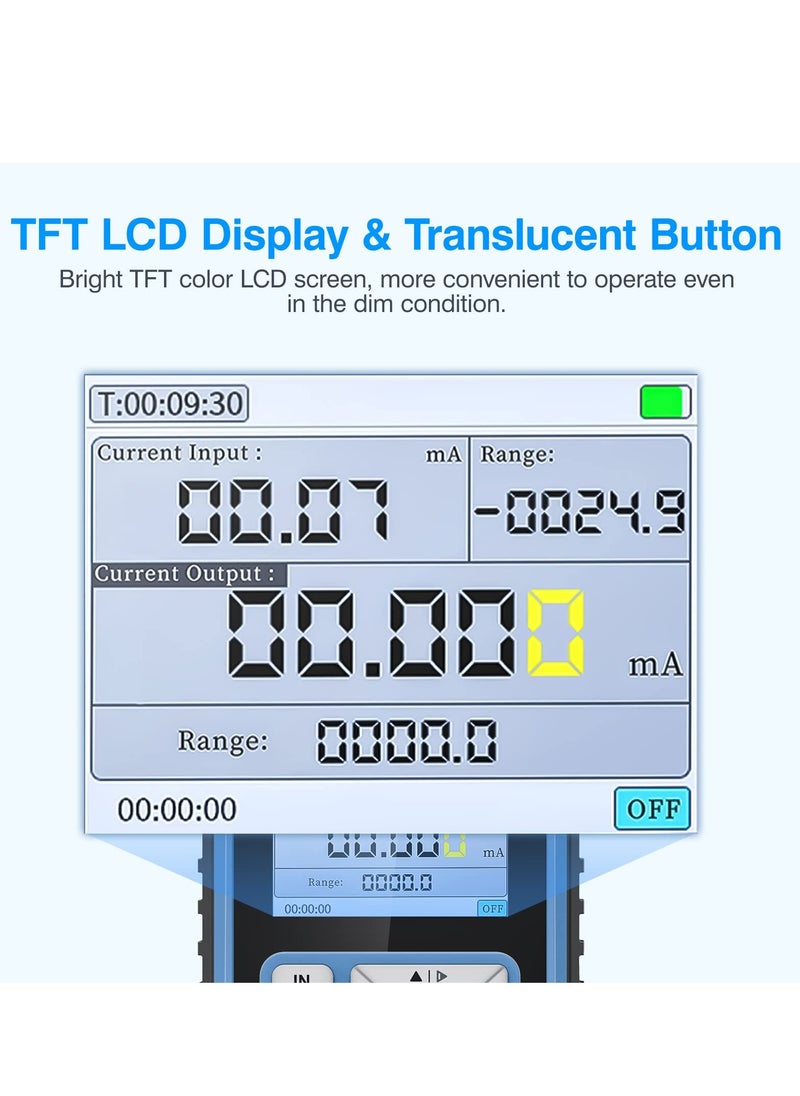

2.4 Inch TFT Colorful Screen --- Designed with an adjustable pressing button backlight and a high-definition resolution 240*320 TFT color LCD screen making it easier for users to operate at night and during the day.

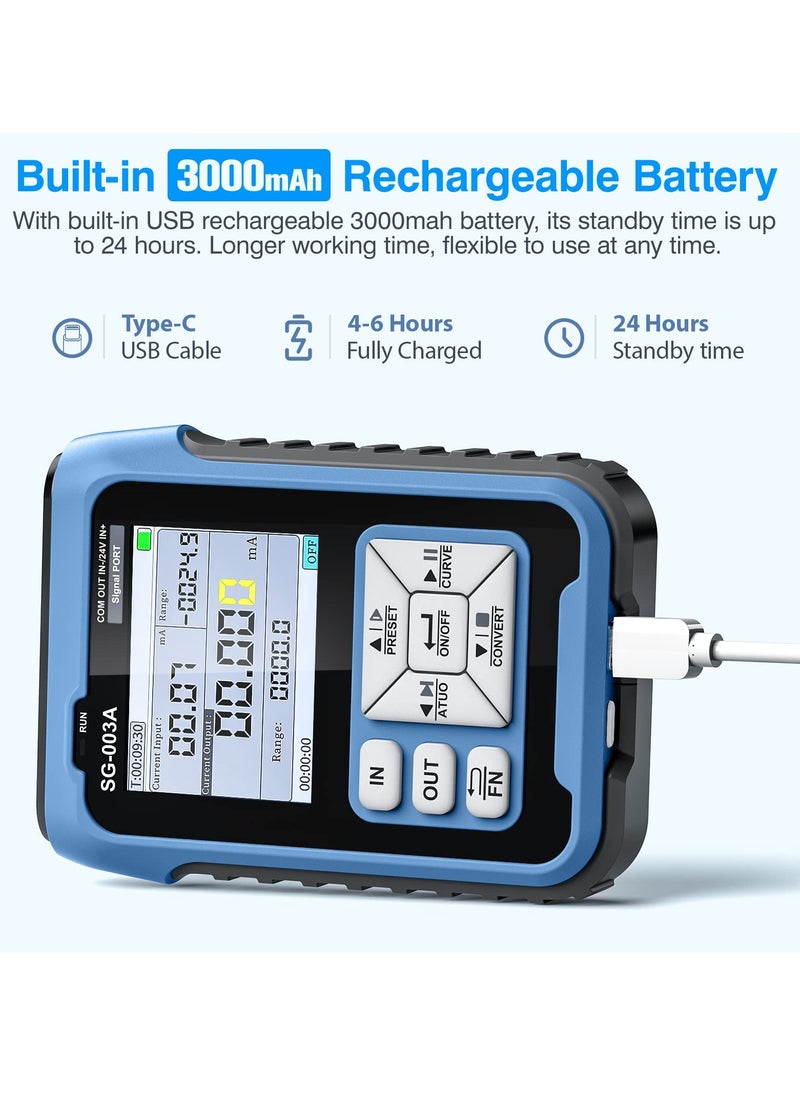

Built-in 3000 mA-h USB Rechargeble --- With 3000mA-h 3.7V built-in USB rechargeable battery embedded inside (charged via micro 5V USB port), it can be fully charged within 4-6 hours. Its working time can reach up to 26 hours which provides you with a long working time.

Multiple Interfaces to Choose --- Main interface programmable output. Input waveform interface: switchable input current graph display, input voltage graph display. VCA conversion interface: switchable voltage to active current,voltage to passive current, current to voltage. Automatic interface: automatic mode can be set for single ascent, single drop, and loop. PWM interface: Output PWM signal,voltage,frequency,duty cycle can be set.

Programmable Output --- The 4 20ma signal generator has the output function of auto and continuously changes the size according to the set parameters and chooses three modes: monotonous rise, monotonous fall, and cycle.
