4 Way Joystick Crane Button

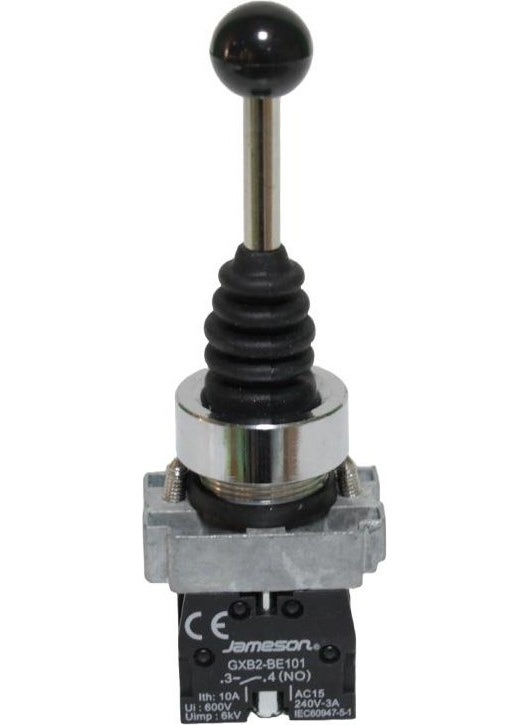

JAMESON 4 Way Joystick Crane Button

Technicial Specifications

• 10A [lth] conventional open air thermal current,
• 600V [Ui] nominal insulation voltage,
• 6kV [Uimp] nominal impulse withstand voltage,
• 0.1A 250V; 0.22A 250V, DC-13, R300 [le] nominal operating current,
• Chrome-plated metal slope material,
• Time fixing ring material,
• 22 mm mounting diameter size,
• Spring loaded to 0 position, long working shaft 54 mm length operator type,
• 5-position operator information,
• 4-way operator direction information,
• 1 NO contact type and arrangement,
• Slow breaking contact operation,
• Operating Ambient Temperature Between -25°C and +70°C,
• IP66 Protection degree,
• CE, CCC, IEC 947-5-1 and EN60947-5-1 Certified,
• 2 Year Manufacturer's Warranty.
