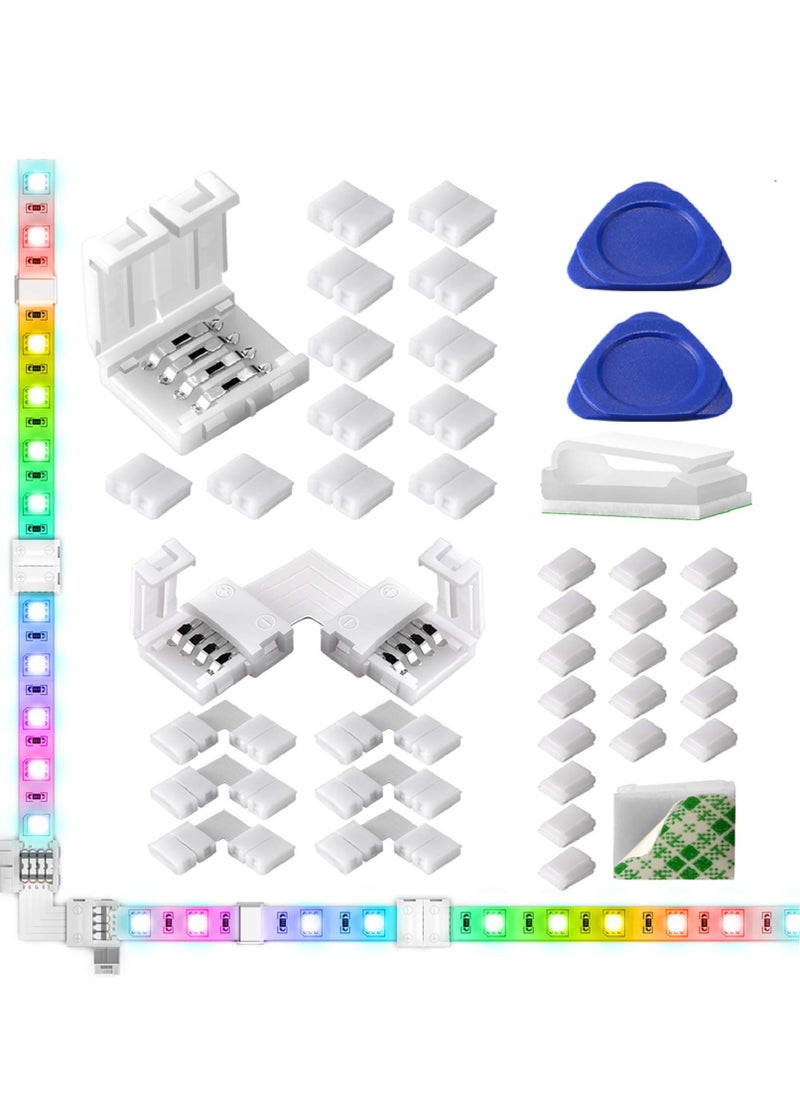

40 Packs 10mm Unwired 4 Pin LED Light Strips Connectors Kit 12 Gapless Connectors 6 Corner Connectors for Multicolor LED Strip

KASTWAVE LED CONNECTORS ELECTRIC ITEMS

The connectors apply to 4-Pin 5050 RGB LED SMD Light Strip.

【Product Material】

Housing: Nylon 66UL94V-0

Contact: Over brass tin

【Product Specification】

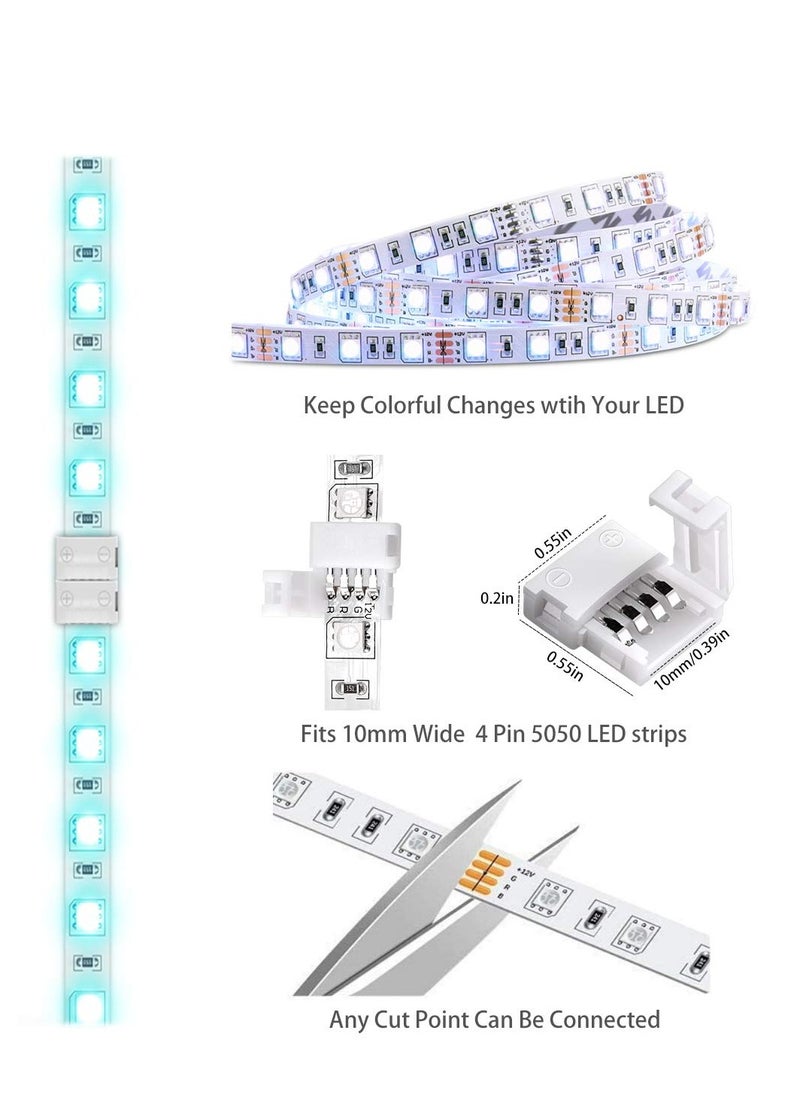

Applicable light strip width: 10mm(0.39inch)

Applicable light strip thickness: 0.3mm-0.4mm

Applicable lines range: AWG22#/20#

Current: 5A, AC, DC

Voltage: DC 0-24V

Working temperature: -40℃ +105℃

Breakdown voltage: 1500V, AC/min

Contact resistance: 30mΩMAX

Insulation resistance: 1000mΩMIN

Product bite traction: >12N

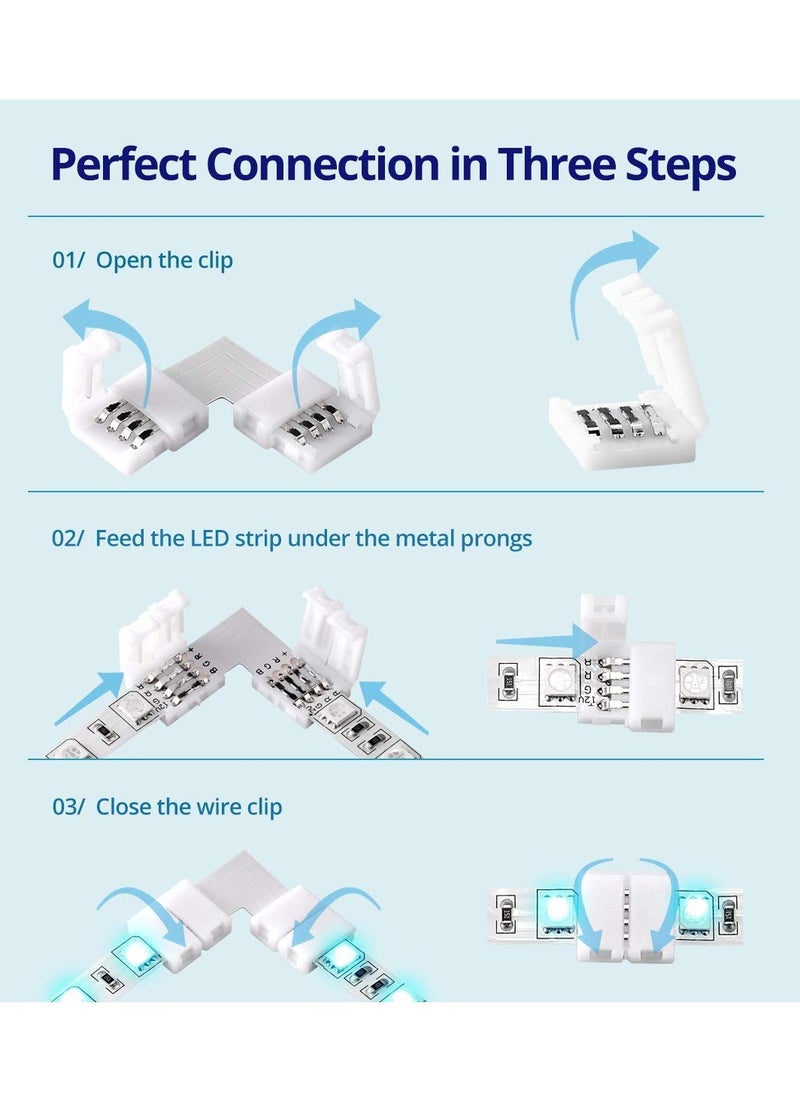

【Connector Instruction】

 1.Ensure your light strips work well.

 2.Cut along the suggested line of the LED strip evenly.

 when used for waterproof LED strips, please strip the silicone on the contact area (about 0.25inch).

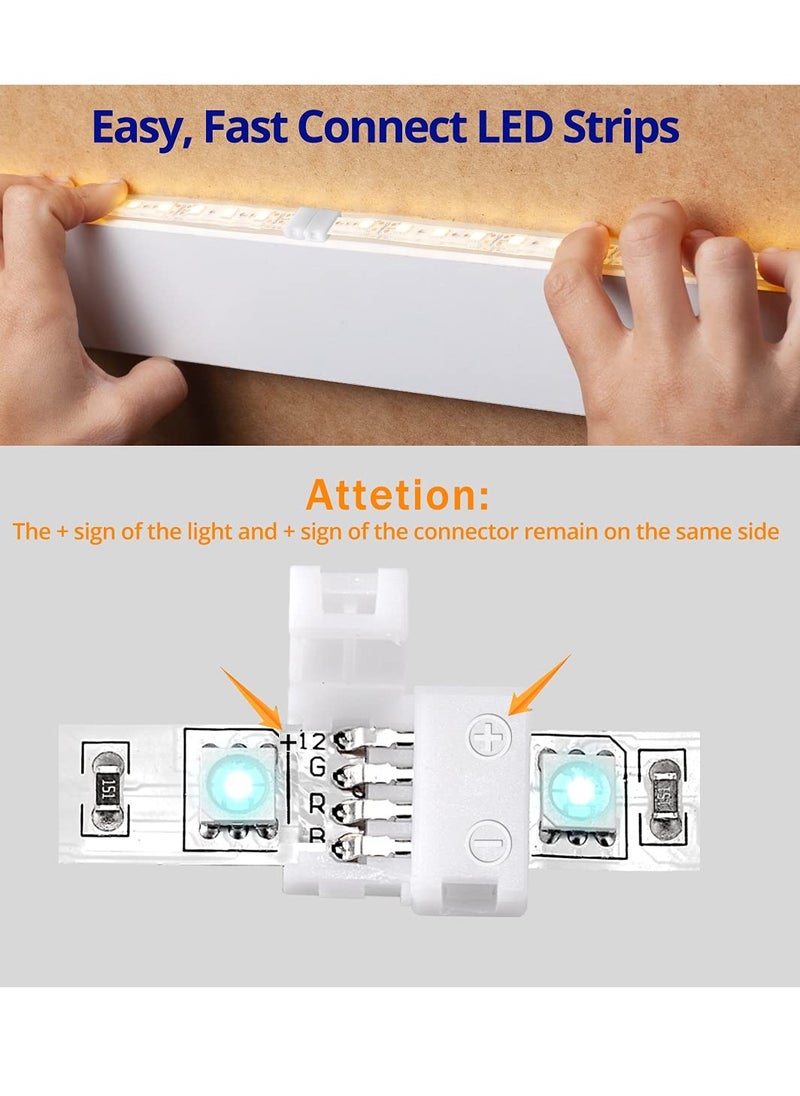

 3.Align the "+" on the light strip with the side with the cover on the connector.  Ignore the RGB/BGR labels, which are irrelevant.

 4.Slide the LED strips to the connector from the slots on the connector sides.

 5.Make sure that each metal pin on the connector is pressed above the brass contact point of the light strip.

 6.Turn on the power to make sure that each LED is working. Then close the lids of connectors.
