4K HDMI Video Capture Card, HDMI to USB 3.0 Record Capture Device, 1080P 60FPS Record Capture Device Adapter, HD HDMI Video Capture Card Hdmi to USB Capture Card 1080p Game Live Video Recording OBS

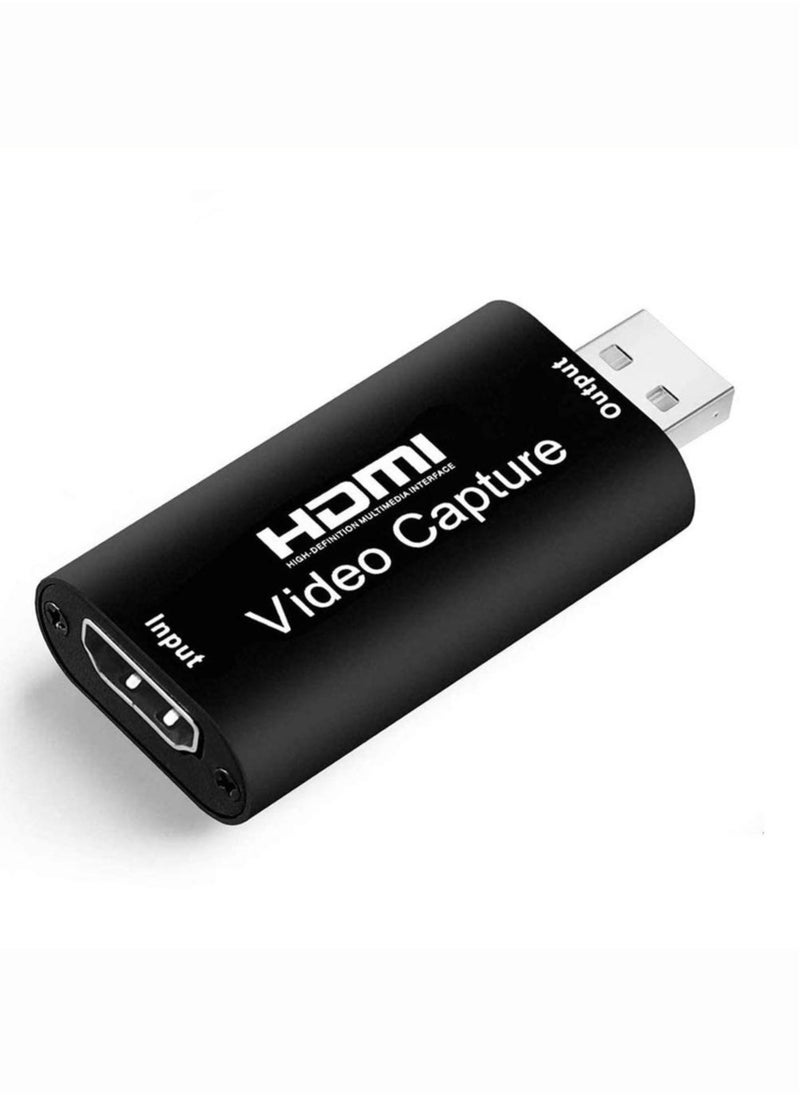

[Product Name] HDMI to USB3.0 video capture card

[Product Alias] Video live capture card, USB3.0 video capture card, HDMI video capture card

[Product Introduction] This USB3.0 capture card has a small appearance and can be carried with you. It can be plugged and played without power supply. It has high definition and no lag. It can capture HDMI video and HDMI audio at the same time. It can transmit audio and video signals to the computer. , preview and save on your smartphone. It is suitable for high-definition collection, teaching recording, medical imaging, etc. Through many free third-party playback and collection software, functions such as preview, recording, collection, and live broadcast can be realized. HDMI video collection complies with UVC and UAC standards and is easy to use.

【Features】

1. Support input maximum resolution 3840×2160@30Hz;

2. Supports output maximum resolution 1920×1080@30Hz;

3.Support 8/10/12-bit deep color;

4. Supports AWG26 HDMI standard cable: input up to 15 meters (1080P and below resolution);

5. Supports most acquisition software, such as VLC, OBS, Amcap, etc.;

6.Support Windows, Android and MacOS operating systems

7. Supports all third-party player software compatible with UVC and UAC protocols;

【Product specifications】

1. Input interface: 1*HDMI interface;

2. Output interface: 1*USB3.0 interface;

3.HDMI input: maximum resolution 3840×2160@30Hz

4.USB output: maximum resolution 1920×1080@30Hz;

5. Video output format: YUV, JPEG;

6. Audio output format: L-PCM;

7. Input cable distance: ≤15m, AWG26 HDMI standard cable;

8. Audio and video capture: Compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards;

9. Maximum working current: 0.4A/5V DC;

10. Working temperature: -10-55 degrees Celsius.

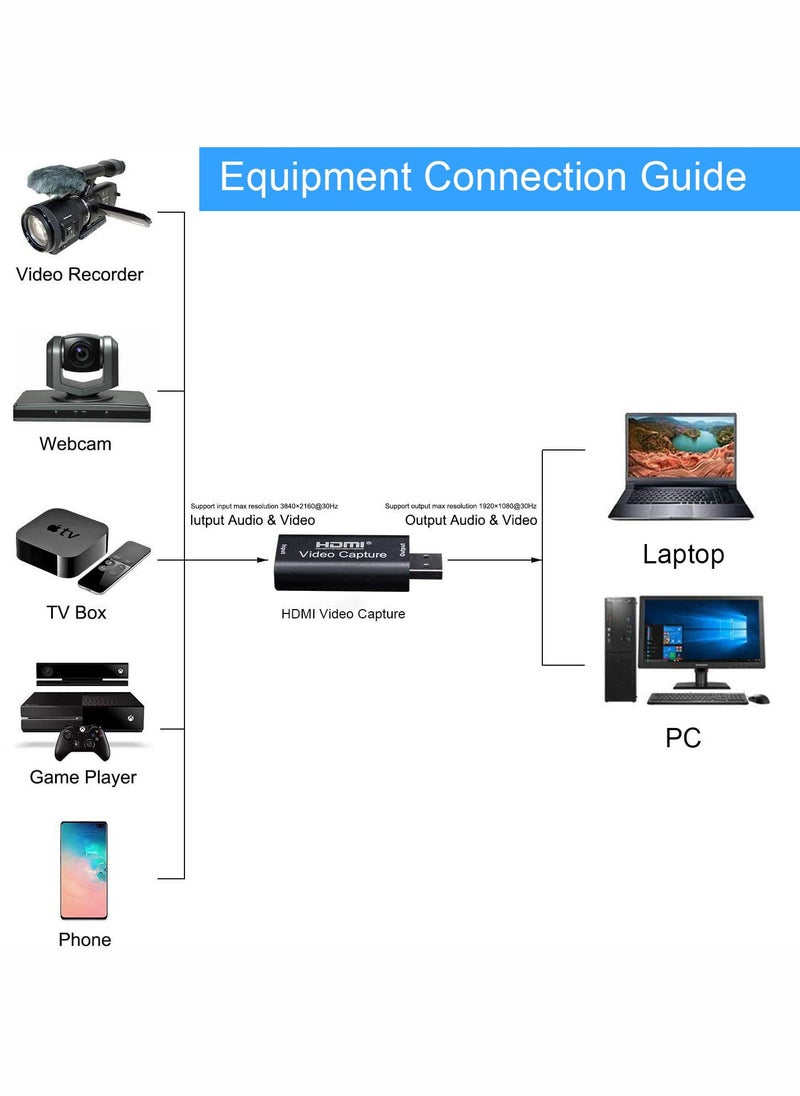

【Connection Instructions】

1. Use an HDMI cable to connect the UHD signal source to the HDMI input of the video capture.

2. Connect your computer to the video capture USB port using a USB cable.

3. USB video capture (OBS) operation steps: Open the software → Select the source '+' number → "Video Capture Device" →Set the image size →Select "Studio Mode" →Select "Start Recording".

[Packaging list] 1 HDMI capture card, 1 product manual, 1 color box packaging.
