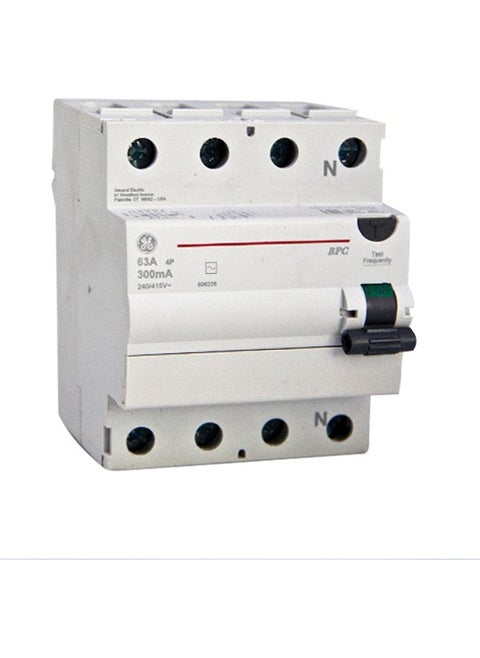

4X63A 300MA Residual Current Relay BPC463/300

Type	Electric panel

Specifications Series  Residual current circuit breaker

Range BP

Type Type AC

Serie Series AC Un 240/415 Vac

Poles 4P

Rated current In 63 A Residual current 300 mA

Operating time Instantaneous AC/DC AC

Number of modules 4

Terminal capacity flexible/rigid cable 35-50 mm²

Tropicalisation according to IEC 60068-2-28/2-30 95%RV at 55°C

Electrical service life 20000/10000

Selectivity class 3 Minimum service voltage 205 V

Frequency 50/60 Hz

Operating temperature -5°C / +40°C

Storage temperature -25°C / +70°C

shock voltage 6

Protection Degree IP20

Ambient temperature -5 / 40°C

Nominal current Un 240-415 Vac

Nuisance tripping resistance 250 A 8/20 µs

Rated current Im = 500 A

Differential making and breaking capacity I(Δ)m >= 10 In

Short circuit capacity Inc = 10000A at 240V/415V

hort circuit capacity / norm fuse 80A gG
