600W MPPT Solar Controller 10-30V Voltage Adjustable with LCD Display Maximum Power Point Tracking Photovoltaic Step-down Controller Adapt to Various Batteries

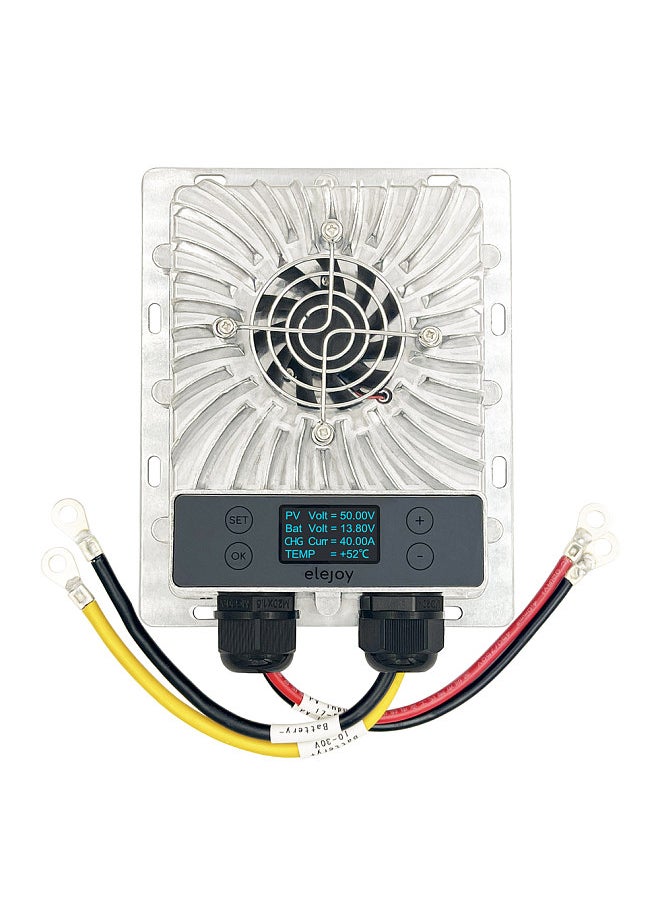

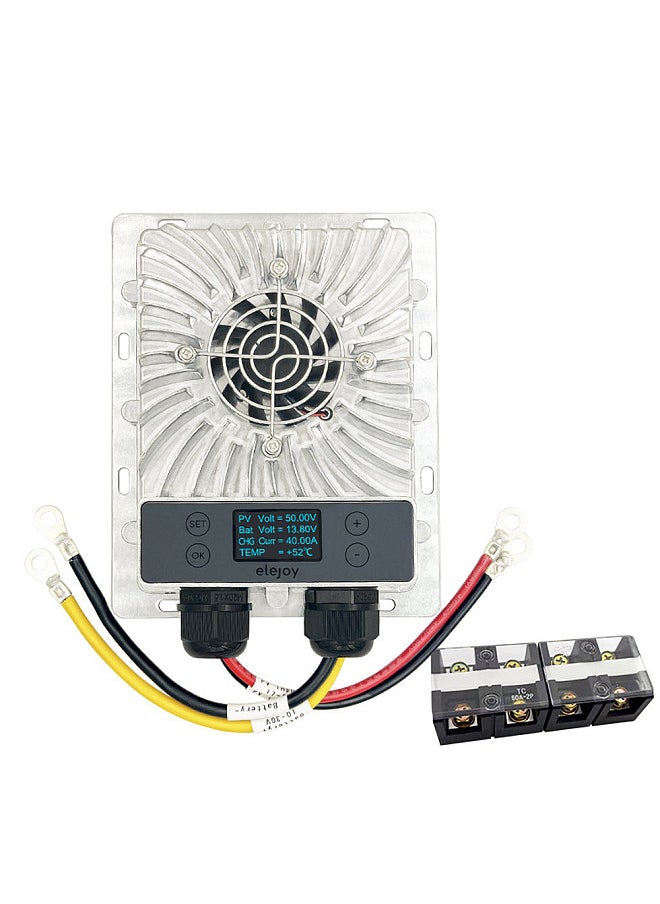

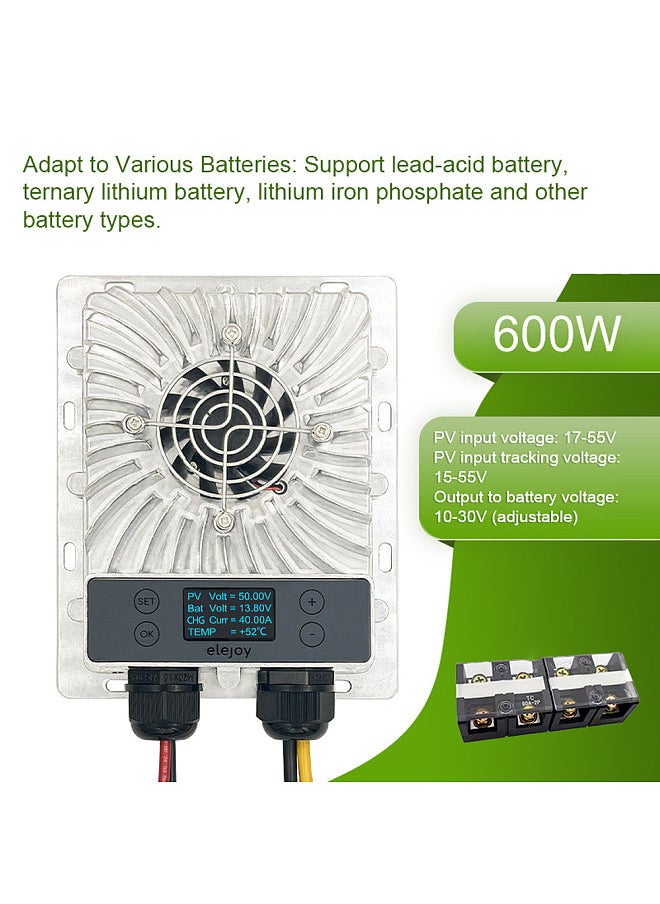

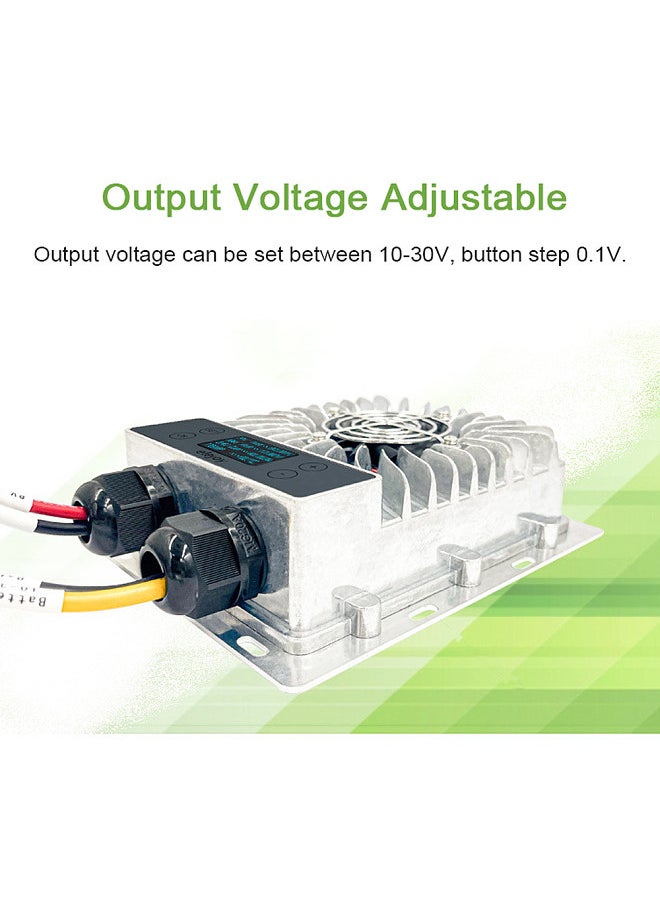

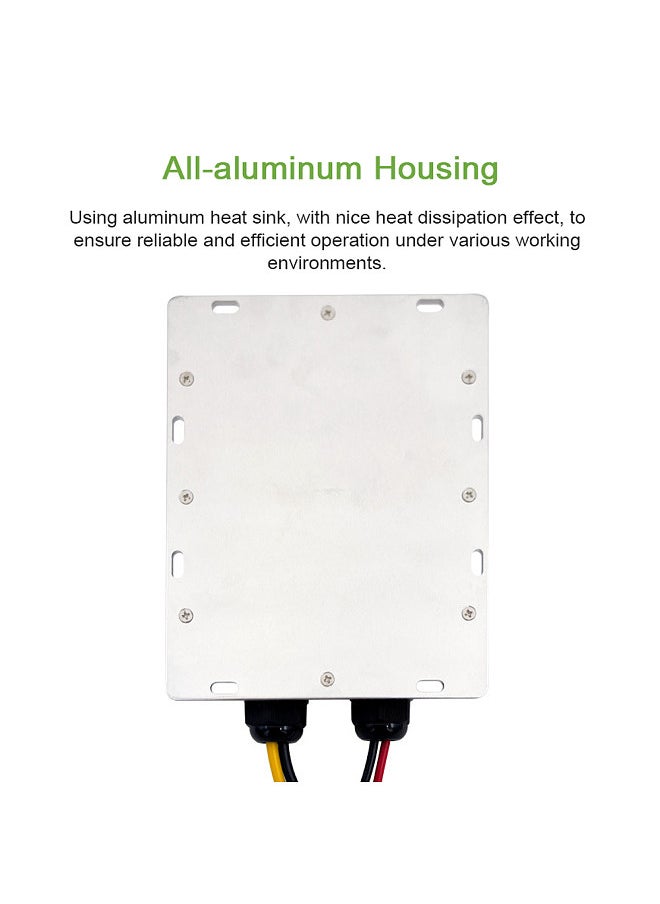

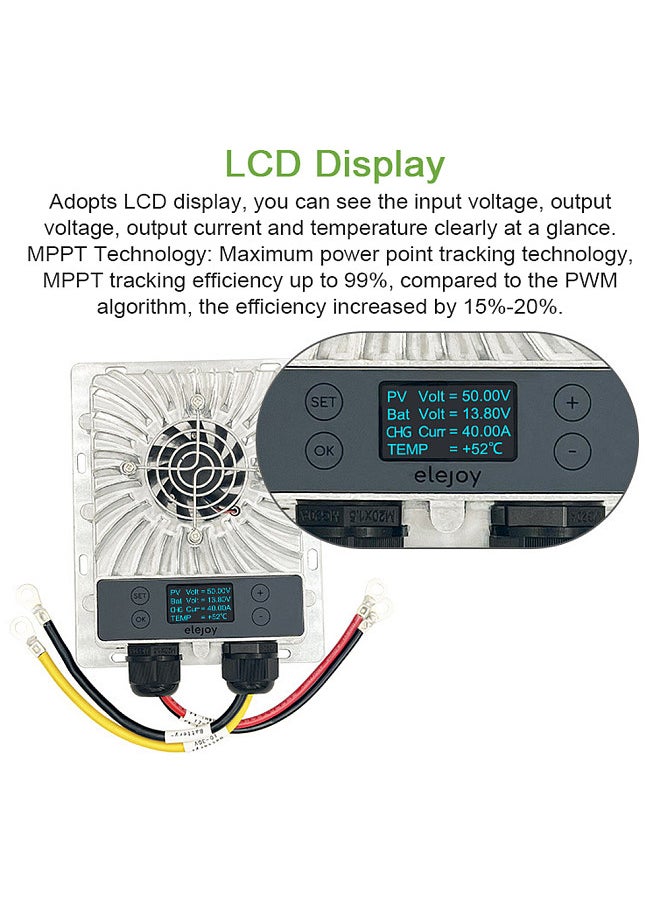

OverviewThis solar controller adopts LCD display, you can see the input voltage, output voltage, output current and temperature clearly at a glance. Maximum power point tracking technology, MPPT tracking efficiency up to 99%. Intelligent temperature control, fan cooling. Support lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types. Features: All-aluminum Housing: Using aluminum heat sink, with nice heat dissipation effect, to ensure reliable and efficient operation under various working environments. LCD Display: Adopts LCD display, you can see the input voltage, output voltage, output current and temperature clearly at a glance. MPPT Technology: Maximum power point tracking technology, MPPT tracking efficiency up to 99%, compared to the PWM algorithm, the efficiency increased by 15%-20%. Output Voltage Adjustable: Output voltage can be set between 10-30V, button step 0.1V. Synchronous Rectification: The circuit adopts high efficiency synchronous rectification to circuit structure. The use of extremely low on-state resistance of high-frequency switching MOSFET instead of the traditional rectifier diode, greatly improving the efficiency of the converter, reduce the temperature of the entire machine housing, to achieve the smallest housing to achieve greater power output.  Cooling Fan: Intelligent temperature control, fan cooling. When the internal ambient temperature of MPPT controller exceeds 65℃ or the charging current is greater than 30A, MPPT controller will automatically turn on the fan. When the internal temperature of MPPT controller is lower than 45℃, MPPT controller will automatically turn off the fan. Perfect Protecting Mechanism: With perfect protections mechanism for under voltage, over temperature, short circuit, output over current, over load, backflow preventions, etc. Adapt to Various Batteries: Support lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types. Specifications: Name: MPPT Solar Controller Material: plastics Display: LCD display PV input power: 600W PV input voltage: 17-55V PV input tracking voltage: 15-55V Output to battery voltage: 10-30V (adjustable) Output to battery current: 40A No-load loss: 0.5-0.8W Voltage Adjustment Rate: 1% Load Adjustment Rate: 5% MPPT efficiency: 99% Operating temperature: -40℃ to +65℃ Installation wire length: 100mm / 3.94in Item size: 172 * 38 * 47mm / 6.77 * 1.50 * 1.85in Item weight: 1000g / 2.20lb Package size: 200 * 150 * 60mm / 7.87 * 5.91 * 2.36in Package weight: 1100g / 2.43lb Packing List: 1 * MPPT Solar Controller
