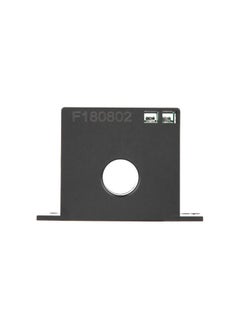

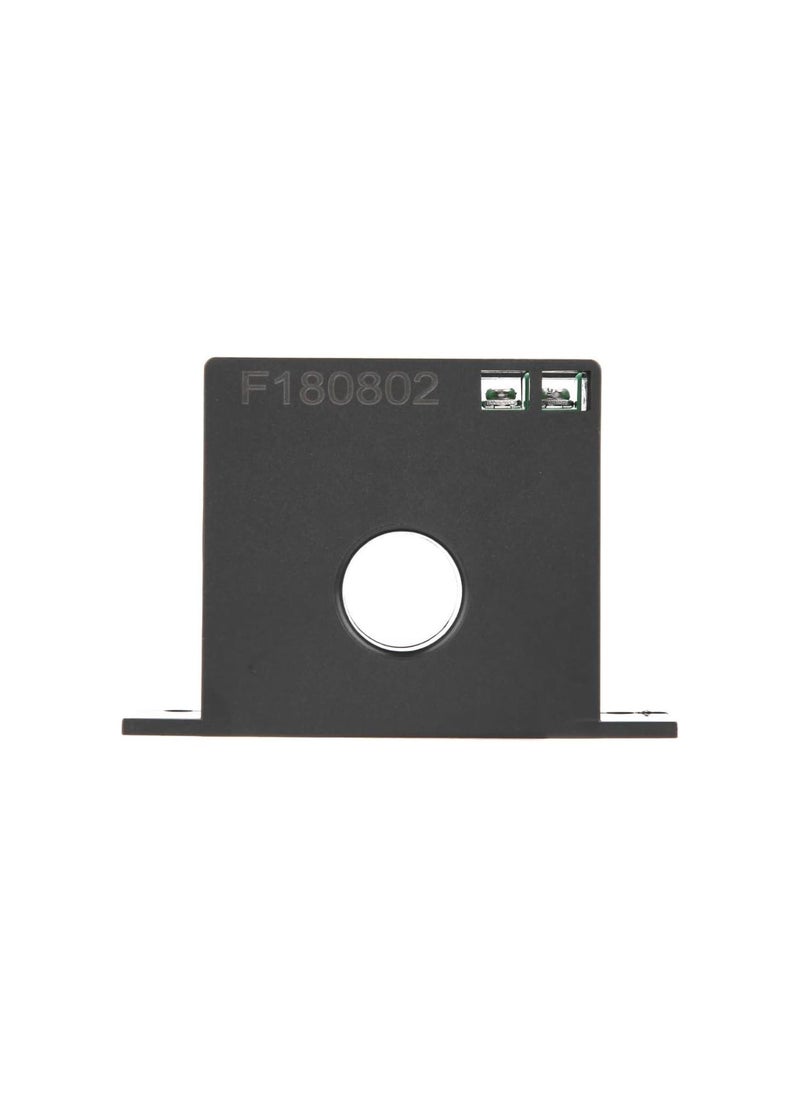

AC Current Transmitter, AC Current Transducer Transmitter Current Mutual Inductor AC 0-50A to DC 0-10V SZT15-CH-10V ac?Current?Sensing AC Current Transducer DC 0-10V

Features:

1. Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.

2. Self-powered, no external power supply required.

3. Easy to install and use, no need to connect DC into the circuit when measuring.

4. Measured current AC 0-10/20/50A, output signal DC 0-10V.

5. Straight-through structure design, isolation withstand voltage up to 2000V.

6. Hysteresis is less than 1% and can be used under strong magnetic conditions.

7. The outer casing is made of self-extinguishing material ABS.

8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Specification:

Model: SZT15-CH-10V

Supply power: Not required

Output type: 0-10V DC

Input straight-through current: AC 0-10A/20A/50A

Switch on minimum: 0.5±0.2A

Maximum overload of straight-through current: 200%

Accuracy: ±1%

Power consumption: ≤1W

Leakage current: ≤1mA

Hysteresis: ≤1%

Linearity: 10%-100%

Straight-through wire diameter: 0.35-20mm

Response time: ≤200ms

Withstand voltage: 2000VAC 50/60Hz 1min

Working environment: -20~60℃, 5-95%RH

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in

Hole diameter: 20mm / 0.8in

Package weight: Approx. 107g/3.8oz

Package list:

1 * AC Current Transmitter

Note:

1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2. Please allow slight error due to manual measurement. Thanks for your understanding.
