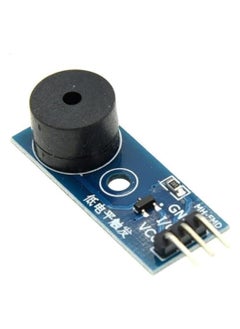

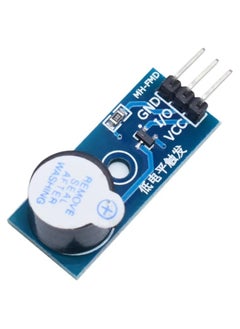

Active Buzzer Module High Level Modules Compatible with Arduino DIY Kit (Active Buzzer)

The characteristics of a passive buzzer are:


1. There is no vibration source inside the passive source, so it cannot be made to sound if the DC signal is used. It must be driven by a square wave of 2K~5K

2. The sound frequency can be controlled, which can make the effect of "Dolemifasolasie".

3. In some special cases, you can reuse a control port with the LED


The characteristics of an active buzzer are:


1. The active buzzer has a shock source inside, so it will call as long as it is powered on

2. Convenient program control, single chip microcomputer a high and low level can make it sound, but passive buzzer can not do.

The weight of each set is about 6g

Module description:

1. The module is driven by 9012 triode

2. Operating voltage 3.3V-5V

3. Fixed bolt hole is provided for easy installation

4. PCB size: 3.3cm * 1.3cm

Module Interface Description (3-wire system)

1.VCC external 3.3V-5V voltage (can be directly connected to 5V microcontroller and 3.3V microcontroller)

2. The GND external GND

3.I/O External I/O port of the microcontroller
