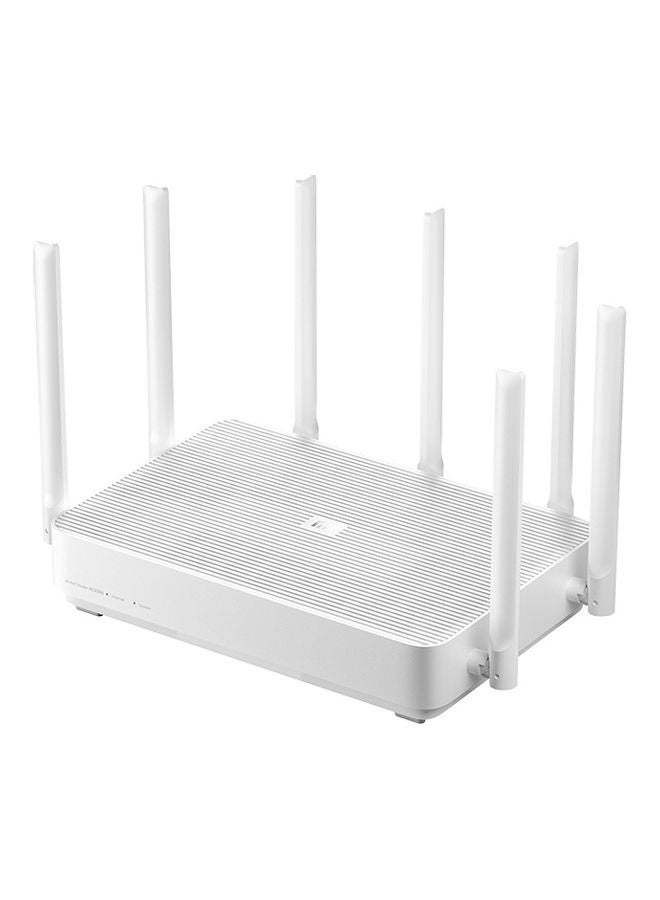

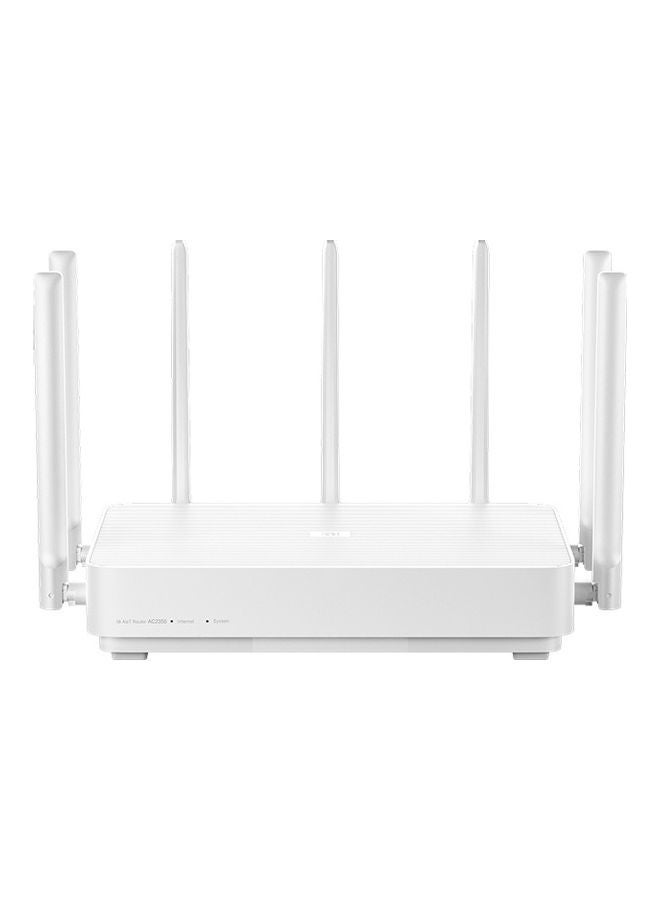

AIoT AC2350 Router With 7 High Gain Antennas White

OverviewFeatures:
Up to 2183Mbps Wireless Theoretical Rate
It delivers Up to 2183Mbps wireless theoretical rate, supports up to 1733Mbps WiFi speed on 5GHz band and 450Mbps WiFi speed on 2.4GHz band.
High-performance CPU
Equipped with Qualcomm CPU, strong processing power, more stable operation.
Strong&Stable Signal
7 external antennas and power amplifiers cast Wi-Fi signals to every corner of your home, even some far-away and low- powered devices can be connected.
AloT Intelligent Antenna
Equipped with built-in AloT smart antenna, you can open Mijia APP to automatically find uninitialized Xiaomi smart devices around you.
128MB Memory
Adopt 128MB large memory, support up to 128 devices connect simultaneously, to ensure the stability of data transmission.
MU-MIMO Technology
It allows the router's multiple antennas to serve multiple devices simultaneously, suppors concurrent transmission of data from multiple devices at the same time, provides smoother and more stable signal transmission.
Gigabit Ports
It provides 1 gigabit WAN port and 3 gigabit LAN ports, which can meet the broadband access requirements of 100M and above, and the maximum high-speed bandwidth of 1000M.
Good Heat Dissipation
Large area aluminum alloy heat sink is used to improve heat dissipation efficiency. Both upper and lower covers have heat dissipation holes, which constitute good air convection to ensure long-term and reliable use.

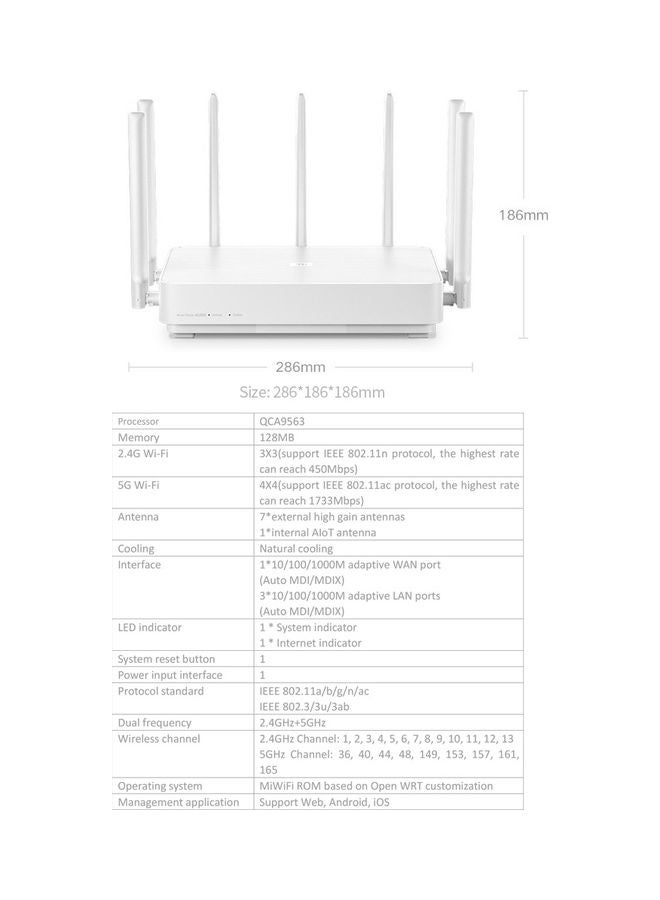

Specification:
Brand: Xiaomi
Model: AIoT AC2350
Color: White
Hardware Configuration
Processor: QCA9563
Memory: 128MB
2.4G Wi-Fi: 3X3 (support IEEE 802.11n protocol, the highest rate can reach 450Mbps)
5G Wi-Fi: 4X4 (support IEEE 802.11ac protocol, the highest rate can reach 1733Mbps)
Antenna: 7 * External high gain antennas+1 * Internal AIoT antenna
Cooling: Natural cooling
Interface: 1 * 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
                3 * 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
LED indicator: 1 * System indicator, 1 * Internet indicator
System reset button: 1
Power input interface: 1
Protocol standard: IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u/3ab
Wireless Parameters
Dual frequency: 2.4GHz+5GHz
Wireless channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
                             5GHz Channel: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation: 11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps)
                     11a/g: OFDM: BPSK(6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)
                     11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCSO~MCS23
                     11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0~MCS9 (support 4 streams)
Software Parameters
Operating system: Smart router operating system MiWiFi ROM based on OpenWRT deep customization
Wireless security: WPA-PSK/WPA2-PSK encryption, wireless access control(black and white list), SSID hiding, intelligent anti-rubbing network
Management application: Support Web, Android, iOS
Working Environment
Working environment temperature: 0~40℃
Working humidity: 10%~90%RH (non-condensing)
Storage temperature: -40~70℃
Storage humidity: 5%~90%RH (non-condensing)
Item size: 28.6 * 18.6 * 18.6cm /11.26 * 7.32 * 7.32in
Packing list:
1 * Router
1 * Network cable
1 * Power adaapter
1 * User manual
