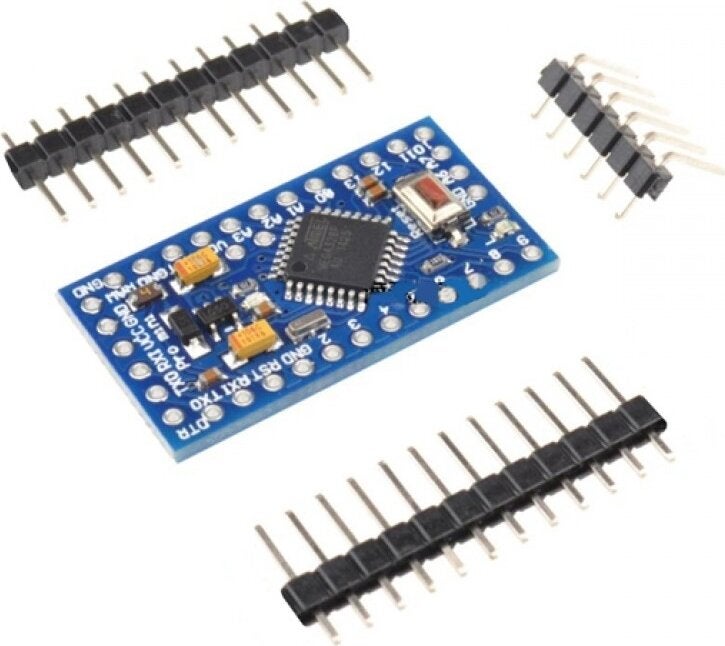

Arduino Pro Mini 328 3.3V/8MHZ - with Header

Arduino Pro Mini 328 3.3V/8MHz

Arduino Pro Mini; It is a microcontroller card based on ATmega328. It has 14 digital input / output pins (6 PWM outputs), 8 analog inputs, 8MHz crystal and a reset button. This card, which does not contain a USB socket and programmer, is a USB-Serial Converter. It can be programmed with.


Technical Specifications

• ATmega328  running at 8 MHz
• Designed for low voltage, the card can be directly connected to devices and modules (GPS, accelerometer, sensors, etc.) operating at 3.3V.
• Auto-reset support
• 3.3V regulator circuit
• Max 150mA output
• Overcurrent protection
• DC input between 3.3-12V
• Number of Analog Pins: 8
• Number of Digital I/O pins: 14
• Length: 33mm
• Width: 18mm
• Weight:  <2 grams
