Generic - AT312G 3 in 1 Oscilloscope Digital Scope Multimeter with 12MHz Bandwidth 50MSa/s Sampling Rate Built-in Generator Multiple Multimeter Tester Function - Image 1

Generic

AT312G 3 in 1 Oscilloscope Digital Scope Multimeter with 12MHz Bandwidth 50MSa/s Sampling Rate Built-in Generator Multiple Multimeter Tester Function

529.90

 1059.75

Inclusive of VAT

Saving:

 529.85

49% Off

Free Delivery

Get it by 16 July

Order in 6 h 19 m

Coupons

Delivery by noon

Cash on Delivery

Secure Transaction

BANK OFFERS

Earn  26.50 cashback with the Mashreq noon Credit Card.

SELLER

Sold by

Vae Squirrel

Not enough ratings to show

Partner since

1+ Y

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

Detection Range: DC Voltage: 0 ~ 1000V, AC Voltage: 0 ~ 750V, DC/AC Current: 0~10A, Resistance: 0 ~ 60MΩ, Capacitance: 10nF ~ 100mF, Frequency: 1 ~ 20MHZ, Diode / Continuity open circuit voltage 2.8V, judgement resistance 50Ω, Fuse specification: 750

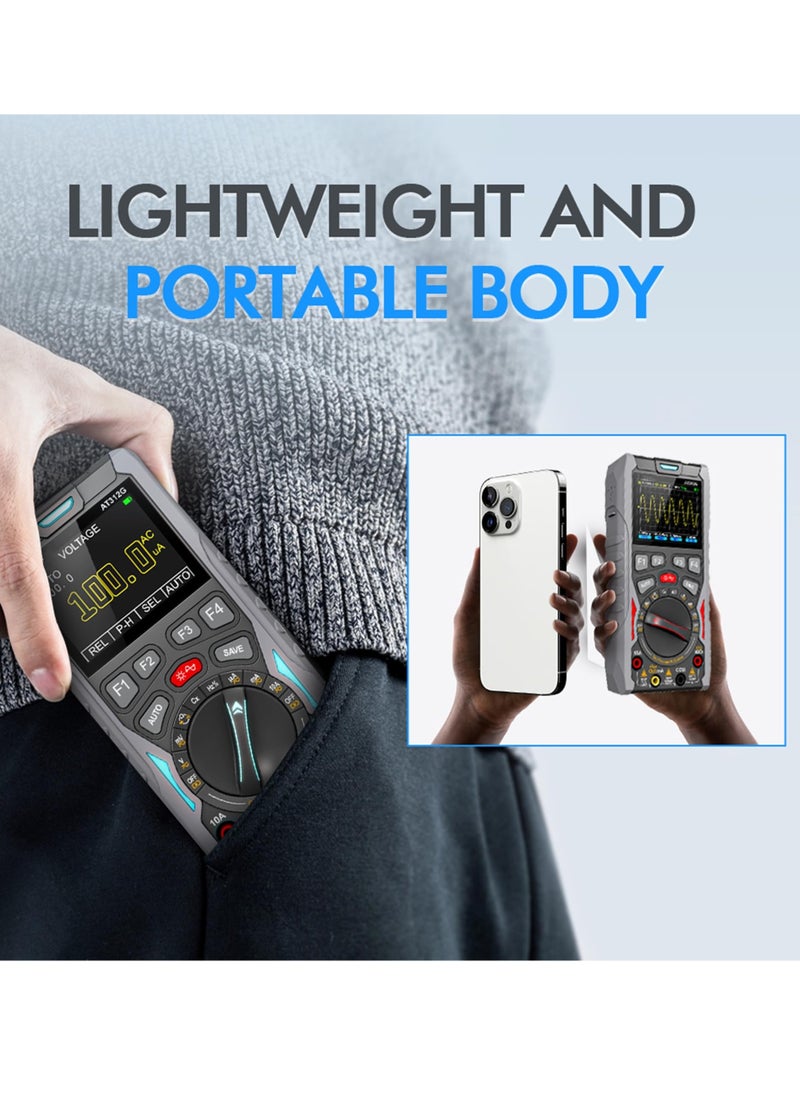

3 in 1: Built in 12MHz bandwidth oscilloscope, 6,000 counts digital multimeter and waveform generator. Lightweight (device: about 260g), 240 x320 color screen and built-in battery. It is a practical u0026 portable oscilloscope multimeter.
Generator: Three waveform output function: sine wave(100HZ~100KHZ), triangle wave(100HZ~50KHZ) and square wave(100HZ~20KHZ), can adjust frequency, duty and volt parameter. Support automatic measurement function: Vp-p, Vavg, Vrms, Hz.
Function: One key to see the wave of voltage gear, there are three waveform scanning modes such as automatic / conventional / single. Data waveform hold function during measurement, 100 sets of data and 10 waveforms can be stored. Automatic/manual ra
Widely use: This AT312G is a cost-effective handheld oscilloscope multimeter with generator, applicable for many fields, such as primary users, DIY application, home appliance repair, car maintenance, measuring electricity, experimental teaching, etc

Overview

50Msps high-speed sampling chip 12MHz analog bandwidth 6000 code digital multimeter.

One key to see the wave of voltage gear, there are three waveform scanning modes such as automatic / conventional / single.

Signal source outputs three types of waveforms, such as sine, triangle and square waveforms. Signal source output range, frequency, duty cycle, fixed point, adjustable.

Data waveform hold function during measurement, 100 sets of data and 10 waveforms can be stored

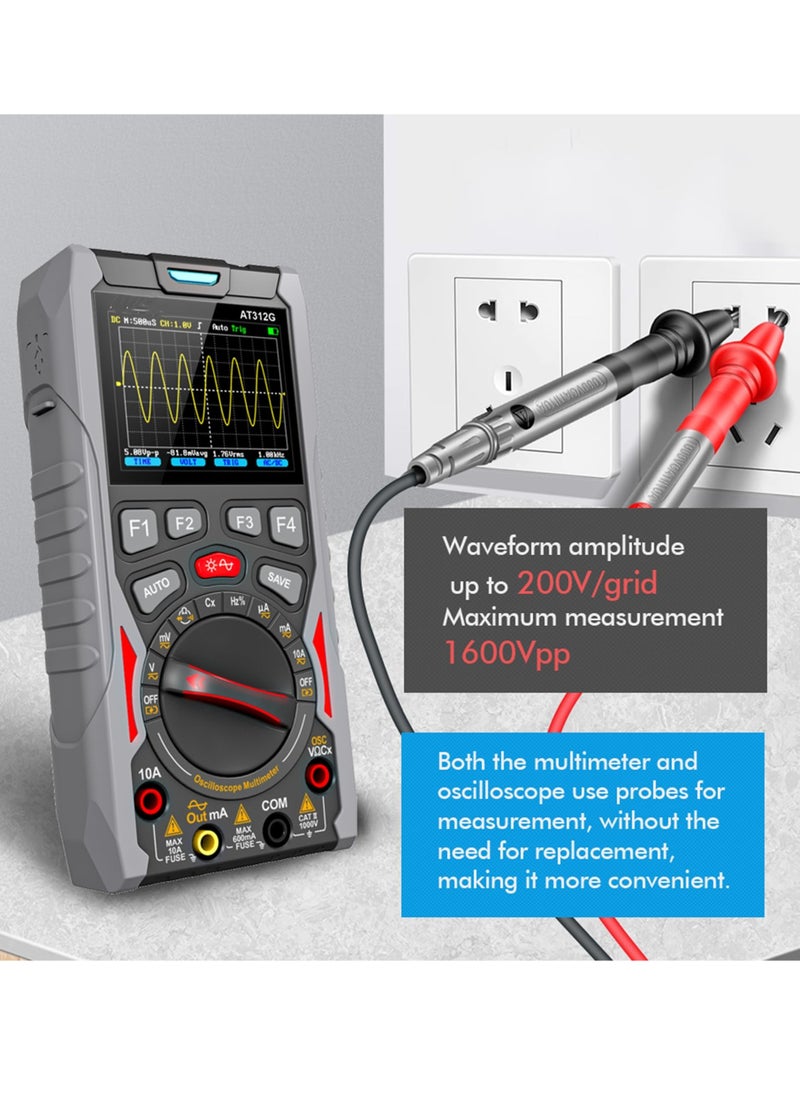

Waveform range up to 200V/grid, The highestup to 1600Vpp measurement. Relative value measurement, effectively eliminating lead resistance, distributed capacitance or interference signals.

Multimeter functions include voltage/current, resistance, capacitance, frequency, duty cycle, diode/on/off testing.

Automatic/manual range switching, displaying real-time data and stored data on the same screen.

Overload protection 750mA;10A double fuse,double protection instrument.

15 minutes no operation auto-sleep function.

2.4 inch color screen display, clear display.

Panel calibration, memory calibration factor without potentiometer adjustment, higher reliability
