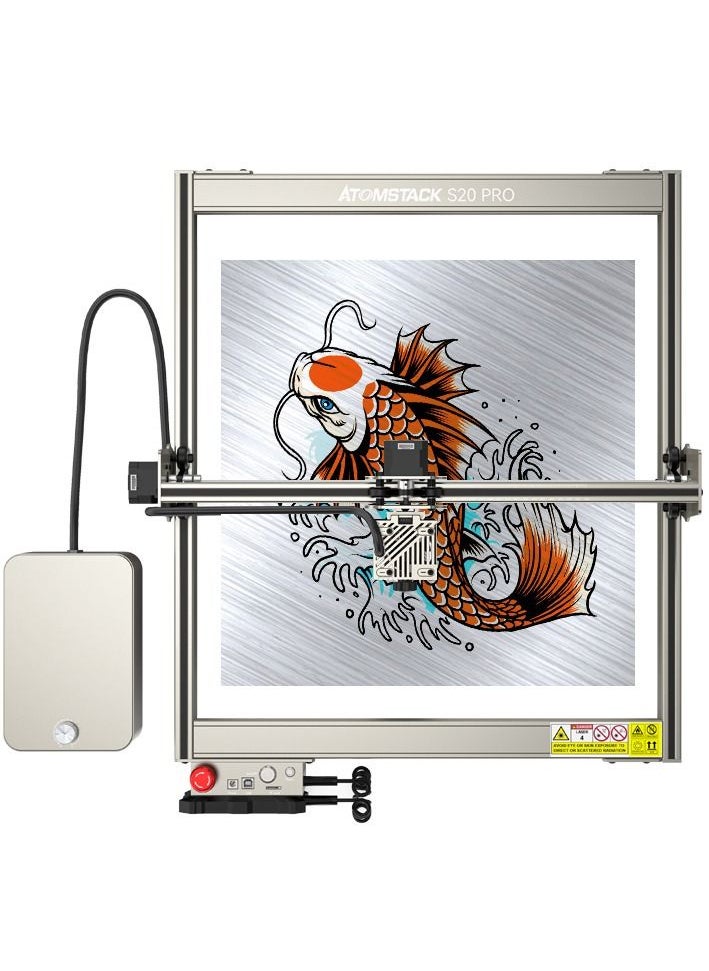

ATOMSTACK S20 PRO Laser Engraving Machine,20W Output Power, 130W Laser Engraver Cutting Machine,Laser Cutter and Engraver Machine

Sorry! This product is not available.

Product Overview

Highlights

▶【Upgrades in Configurations】- ATOMSTACK S20 Pro laser engraver is the first 130W semiconductor laser engraving machine. It uses the newest generation of four 6W laser coupling technology to produce the output optical power soars to 20W. Also it is e
▶【Engraving in Vibrant Colors】- ATOMSTACK laser engraver with a 32-bit motherboard works more smoothly and stable. The advanced built-in 256-bit color scale with 0.08 * 0.1mm laser spot area makes the engraved pattern more contrast and more obvious.
▶【Cutting on Thicker Materials 】- ATOMSTACK laser cutter with the most advanced 20W compressed spot makes cutting more powerful and faster. It can cut 15-20mm thick tung wood board and 8-10mm thick black acrylic board at one pass and easily cut more

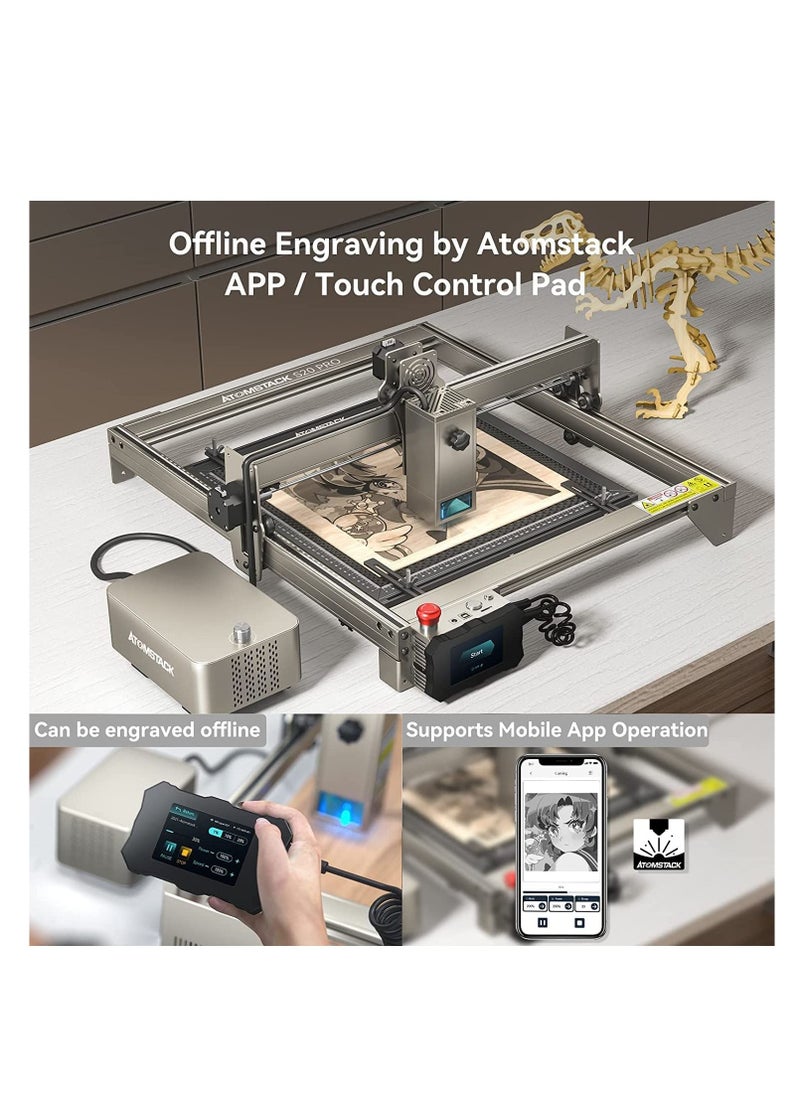

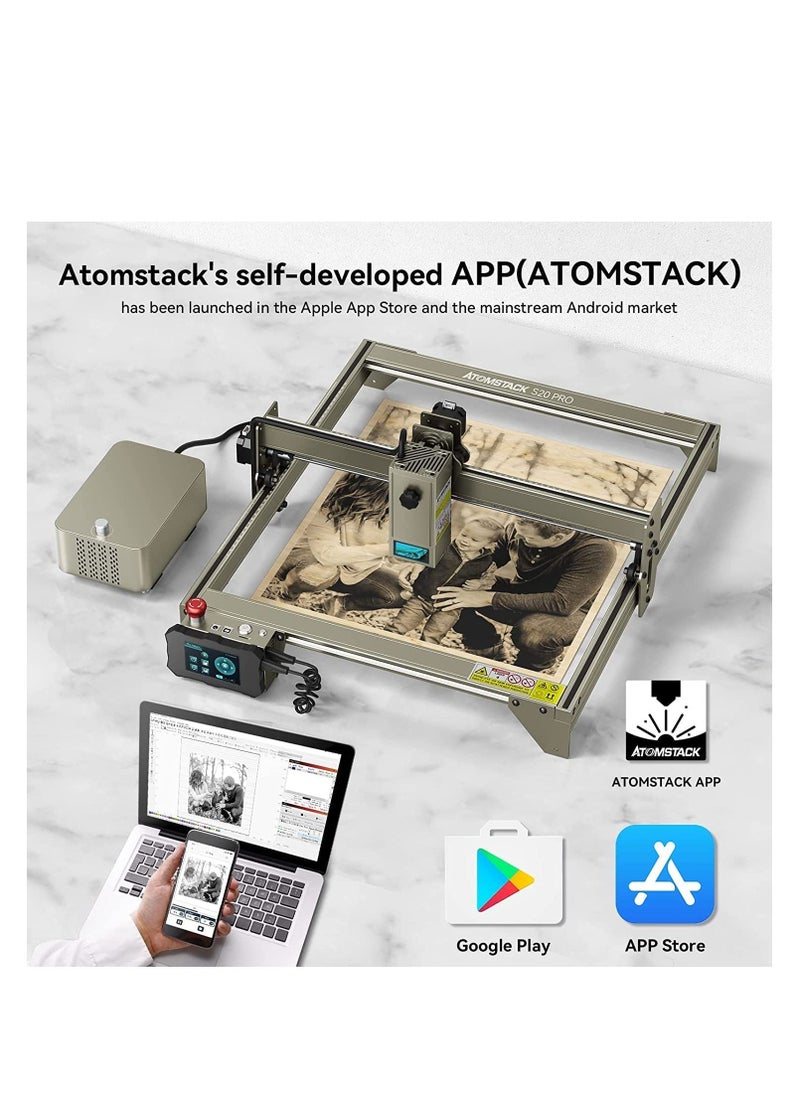

▶【Operating in Three Methods】- There are 3 operating methods (Computer Software / Machine Control Board by TF Card / Mobiles APP). We have developed an ATOMSTACK APP to connect to the S20 Pro laser engraving machine, supporting Android and Apple mobi
▶【Equipped with Air Assist Kits】- The S20 PRO laser cutting machine is equipped with an upgraded F30 pro air assist kit, which have dual built-in air-assist pumps. It makes it twice as efficient as other air assist units. The air assist kit keeps the

Overview

Product description:

Item model number: ATOMSTACK S20 PRO

Print Size: Recommend Print Size 400*400mm

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective

Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

：130W

Laser power: 90W

Laser output power: 20-21W

Wave Length: 445 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

Note:

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

● Please do not touch the laser emitter with your hand, or it may burn your hand.

● Please avoid strong impact on the machine.

● Children under 14 are not allowed to use this product and children over 14 need adult supervision.

● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
