Color

Metallic Gray

B05 Series

• 15° with ratchet function angled star mouth
• Straight type
• 31CrV3 steel
• Shiny chrome plated surface



Code	Width(mm)	L(mm)	e1(mm)	e2(mm)	b1(mm)	b2(mm)	grams	Piece
B05-08	8	136	4.8	7.5	17.2	17.4	36	6
B05-09	9	143	4.8	7.5	21.3	21.1	40	6
B05-10	10	160	5.8	7.5	21.3	21.2	60	6
B05-11	11th	168	5.9	8.7	23.4	23.1	72	6
B05-12	12	174	6.0	8.7	25.4	24.0	76	6
B05-13	13	180	6.3	8.8	27.8	25.7	93	6
B05-14	14	193	7.2	8.8	29.4	27.6	119	6
B05-15	15	200	7.3	10.3	31.9	29.2	141	6
B05-16	16	216	7.5	10.3	33.7	30.9	156	6
B05-17	17	233	8.2	10.3	35.3	32.2	185	6
B05-18	18	239	8.8	10.5	37.6	34.4	200	6
B05-19	19	250	8.8	10.7	39.1	35.6	240	6
B05-21	22	285	9.5	13.0	46.0	42.0	340	6
B05-22	22	285	9.4	13.1	45.8	43.4	340	6
B05-24	24	325	9.7	13.6	52.5	47.4	470	6
B05-27	27	354	11.8	15.0	56.3	50.0	580	3
B05-30	30	425	12.4	18.0	66.4	63.0	940	3
B05-32	32	425	12.5	18.2	65.8	63.2	900	3
B05-36	36	482	15.2	19.8	75.4	64.2	1445	2nd

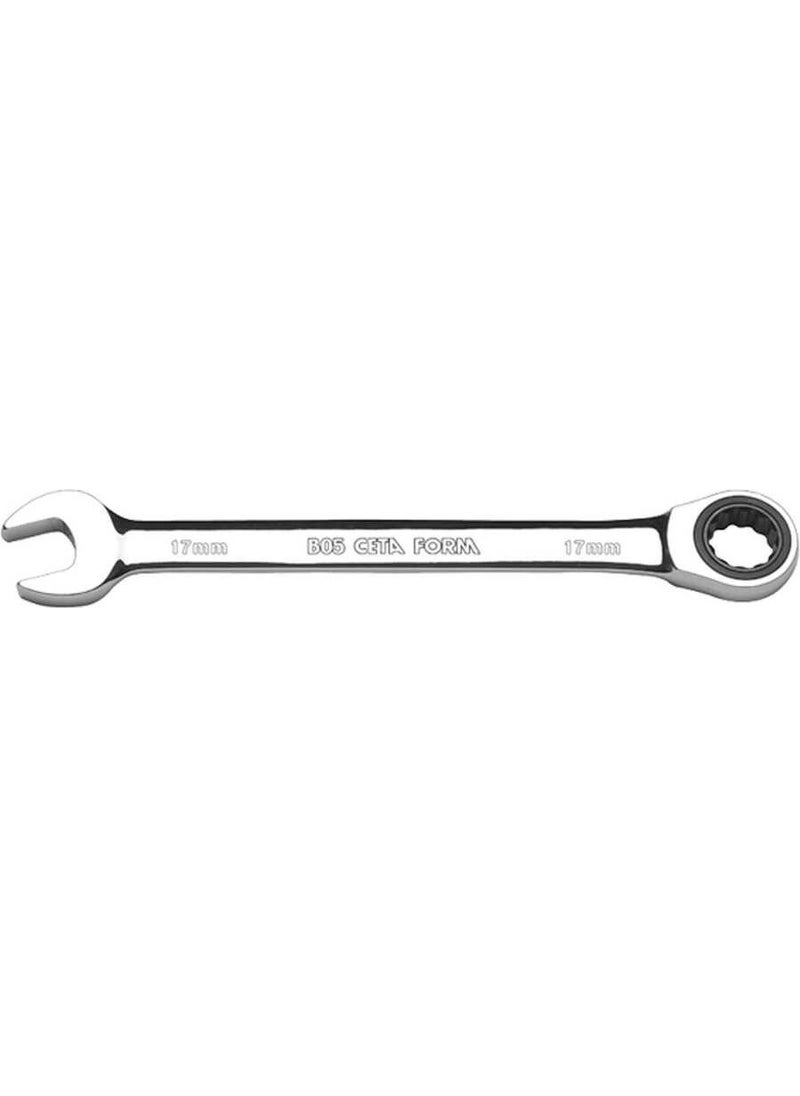

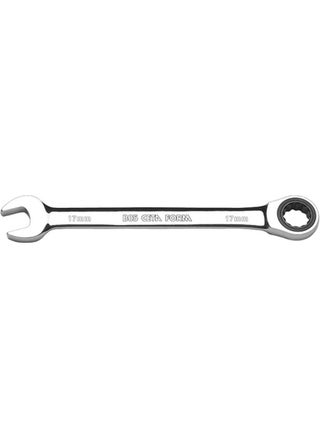

 C-GEAR Ratchet Combination Wrenches (Straight)
