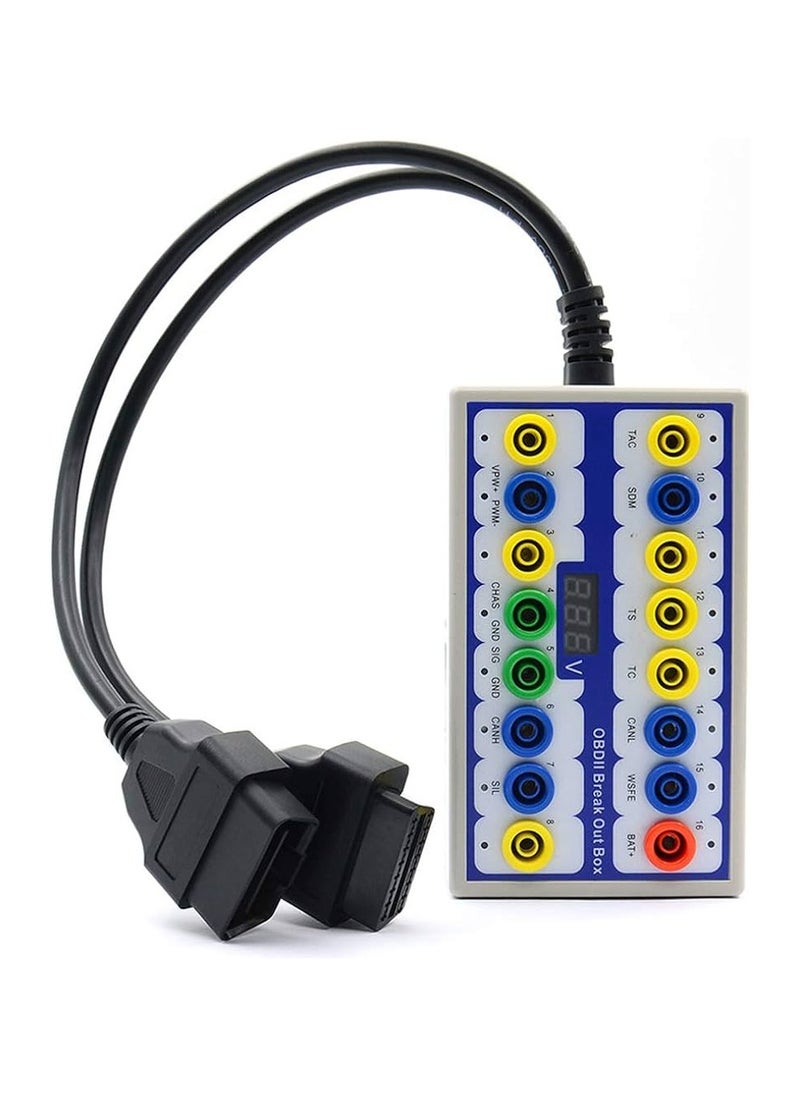

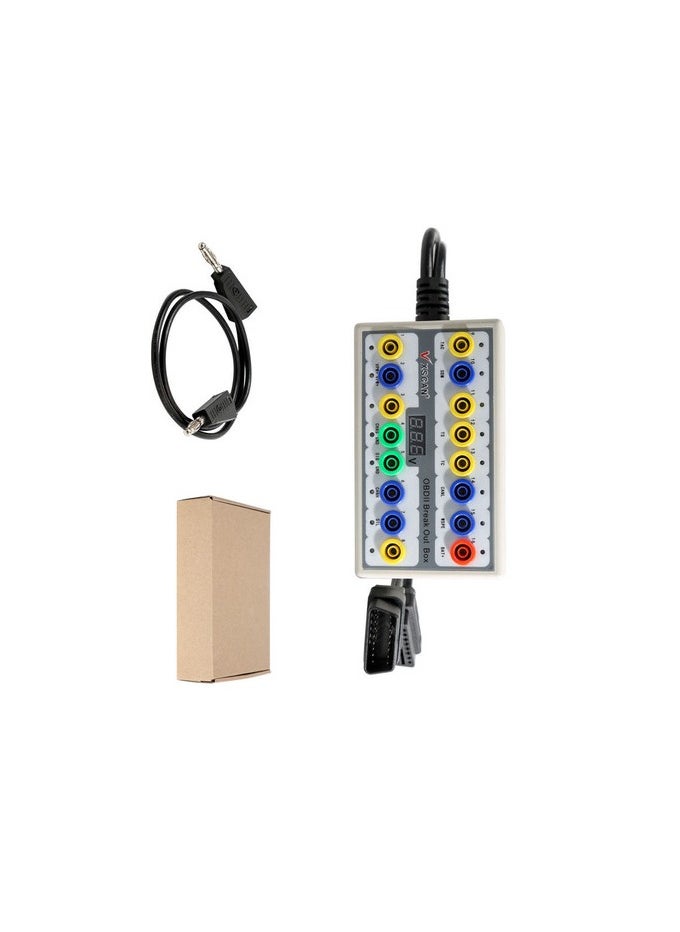

Car OBD Port Connection Protocol Detector Breakout Box CAN Data Line Signal, Car Fault Diagnostic Scan Tool White

The OBDII Break Out Box protocol detector mainly used car OBD line signal judgment and signal transfer. Using the car fault diagnosis instrument can quickly determine the signal reception of the car's OBD. The signal may not meet the angle may take another angle of signal transfer. The application is very convenient and solves risks throughout the line A. In the process of using the decoder, the error can be found and diagnosed by the OBD connector link B. It can monitor the voltage and ground of the OBD interface , showed low tension. Display diagnostic sewing error C. Skip for OBD interface signals. Signal lines as decoder 7 to 15 vehicles online D. Quick detection of OBD2 diagnostic connector if every stitch of normal communication E. Replace the battery, save car data function. When replacing the battery, please connect the OBD2 connector to the car, at the same time connect additional power to the control box, to ensure that the vehicle data is not lost This OBDII protocol detector and Break Out Box has a wide range of applications in diagnostics, key programming and chip tuning: To monitor data steam while testing on the vehicle using a Scantool This makes it possible to both run a test and simultaneously monitor the testing process Displays the test voltage on the car or truck Show communication pin number It is an extension of the OBD Diagnostic Link Connector (DLC) Package: 1 x Detector Breakout Box. 1 pin cable
