Cordless Magnet Wire Stripping Machine 2000mAh 50W for Enameled Wire 0.0118”-0.0984”, Handheld Enameled Wire Stripper w/Extra Battery

• Applicable enameled wires
• Suitable for scraping wire: This enameled wire scraper can only scrape enameled wire, not suitable for scraping too fine enameled wire.
• Aluminum enameled wire: suitable for diameter in the range of 0.6-2.5 mm/0.0236-0.0984 inch, applicable specifications: AWG 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22.
• Copper enameled wire: suitable for diameter within 0.3-3 mm/0.0118-0.1181 inch, applicable specifications: AWG 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26.
• Questions & Answers:
• What should I do if the enameled wire is broken during the stripping process?
• When stripping the enameled wire below 0.4mm (0.0157") , there is a possibility of wire breakage.
• The reason is that the blade is sharper, or the speed of the machine is fast.
• When stripping thin magnet wires, it is recommended to adjust the speed to the slowest first, and then pull out the enameled wire faster.
• If the wire is still easy to break when stripping at the lowest speed, you can use a blunt blade to strip the wire.

• Note:
• Before scraping the paint, the enameled wire must be slightly straightened by hand to avoid the enameled wire being unable to align with the center of the cutting edge.
• When scraping to the end of the enameled wire, please do not immediately make the wire leave the three-jaw cutter head until it stops rotating. So as to avoid the enameled wire suddenly detaching from the cutting edge and damaging the cutting edge during rotation.

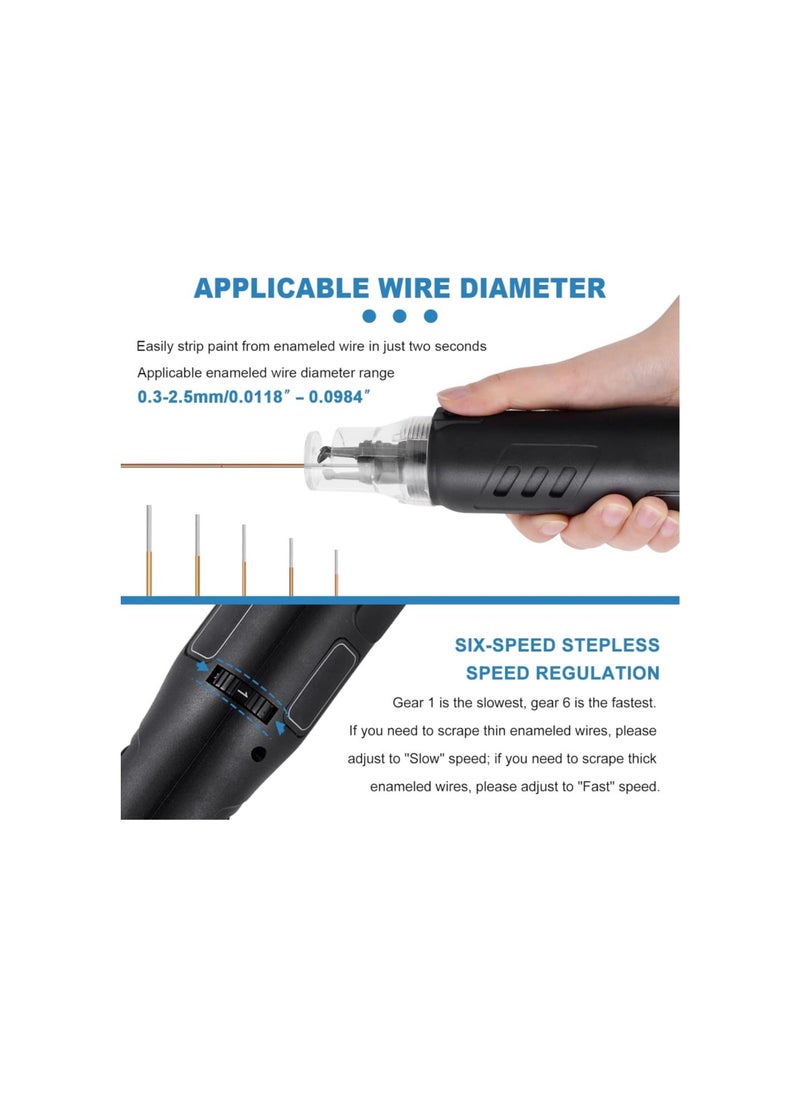

• How to adjust the speed:
• When the enameled wire with different specifications, you can adjust the speed regulating potentiometer. The small wire diameter is adjusted toward the slow speed, and the large wire diameter is adjusted toward the fast direction; when the paint film of the enameled wire is not cleaned off, the speed should be increased until it is cleaned. If the enameled wire is scratched by the stripping machine during speed regulation, the speed should be reduced until it meets the requirements. Please select the most suitable speed according to the above method.

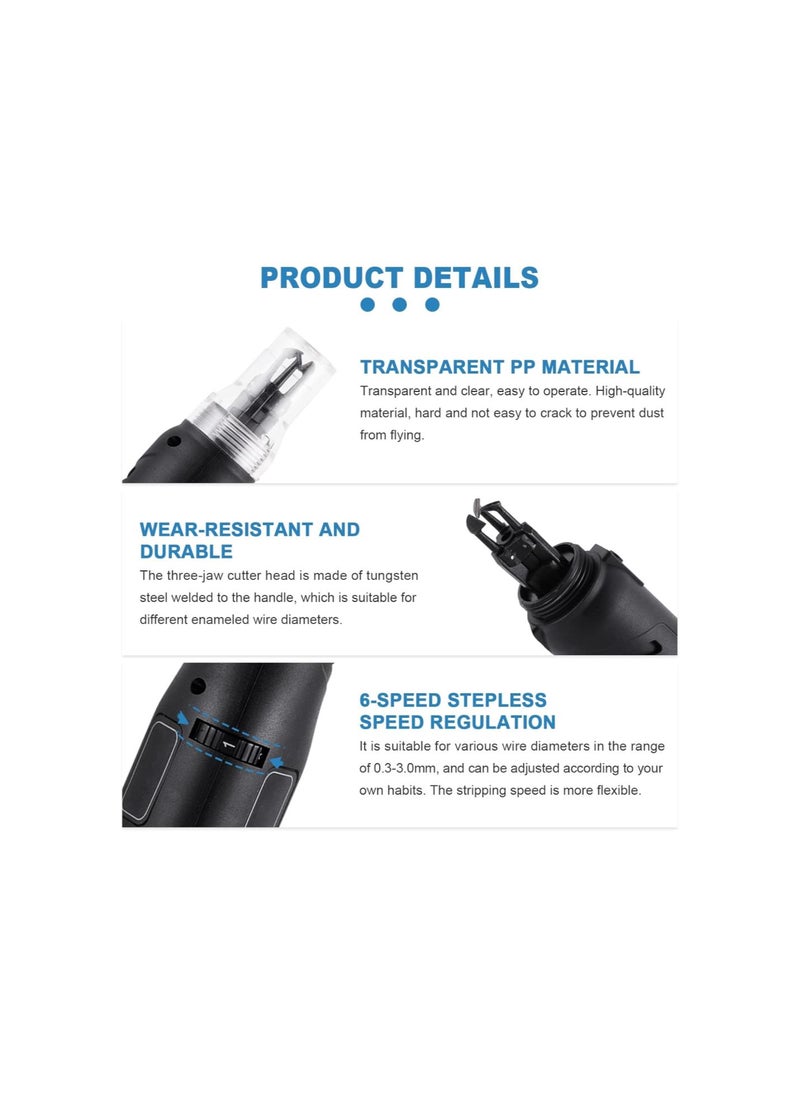

Wear-resistant and durable: The three-jaw cutter head is made of tungsten steel welded to the handle, which is suitable for different enameled wire diameters. High-strength operation, wear-resistant and durable, paint smooth and clean.

6-speed stepless speed regulation: It is suitable for various wire diameters in the range of 0.3-3.0mm, and can be adjusted according to your own habits. The stripping speed is more flexible.

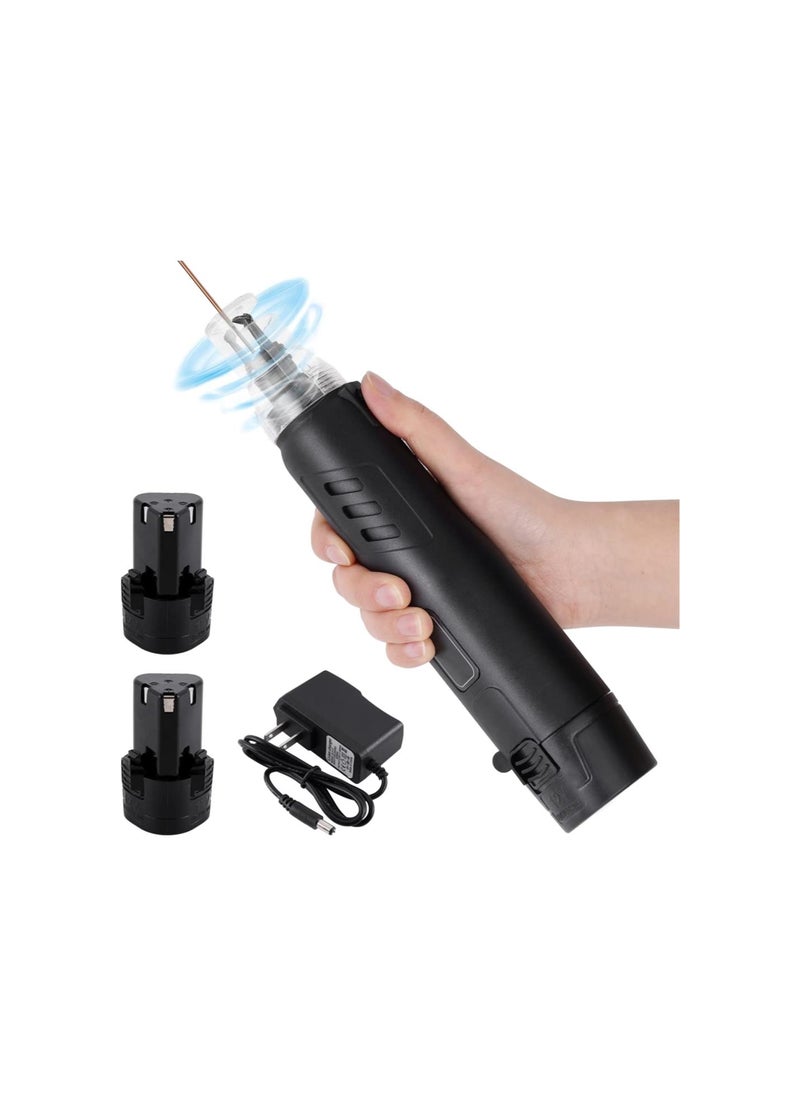

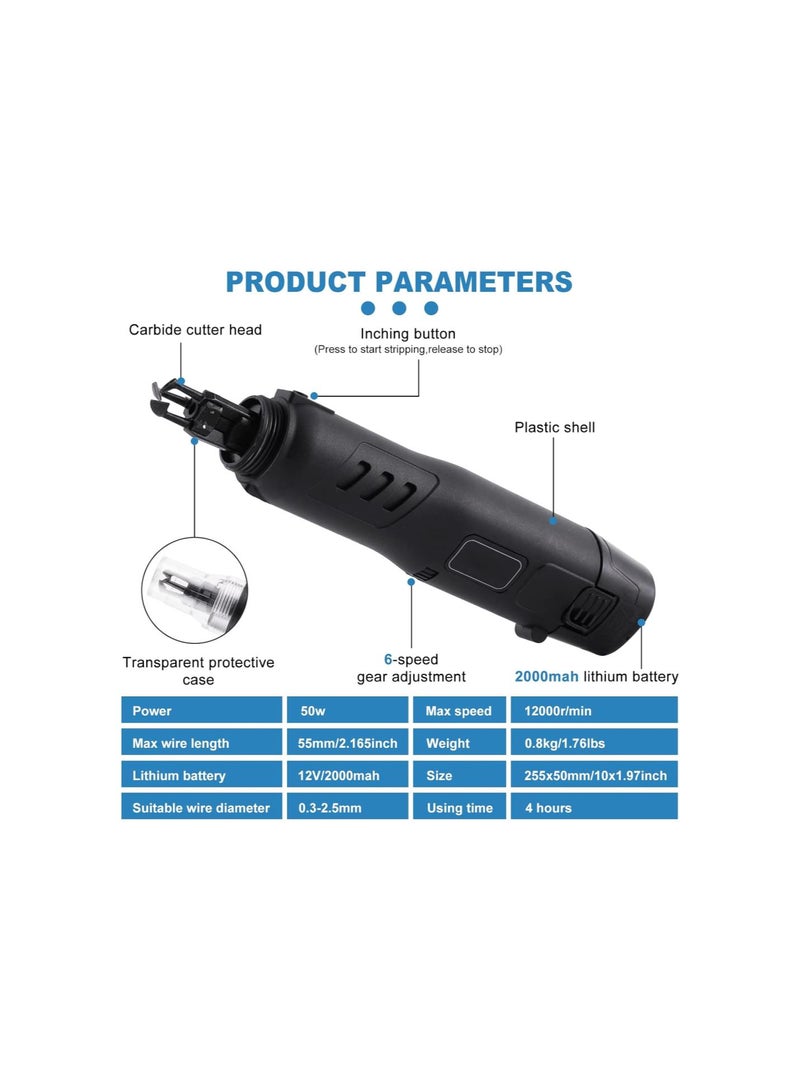

Cordless Magnet Wire Stripping Machine

Equipped with two 2000mAh lithium batteries

Lithium battery: 12V/2000mah

Using time: 4 hours

Adopt a new generation of high-torque DC motor with double-bearing transmission system to reduce interference and friction, smooth operation and durable use. More powerful, more scientific, low noise.

Tungsten steel cutter head

6-speed gear adjustment

2000mAh lithium battery

High-efficiency DC motor
