DALY Hardware 1A Active Balancer Equalizer Energy Transfer Board for Lifepo4 or Li-ion Lithium Battery Pack

Name: noon E-commerce
Address: Boulevard Plaza Tower 2, Sheikh Mohammed bin Rashid Boulevard, Dubai, Dubai, 454602, AE
Telephone: +971551972585
Price range: $ - $$$

Sorry! This product is not available.

Size

Select

Colour Name:

Product Overview

Highlights

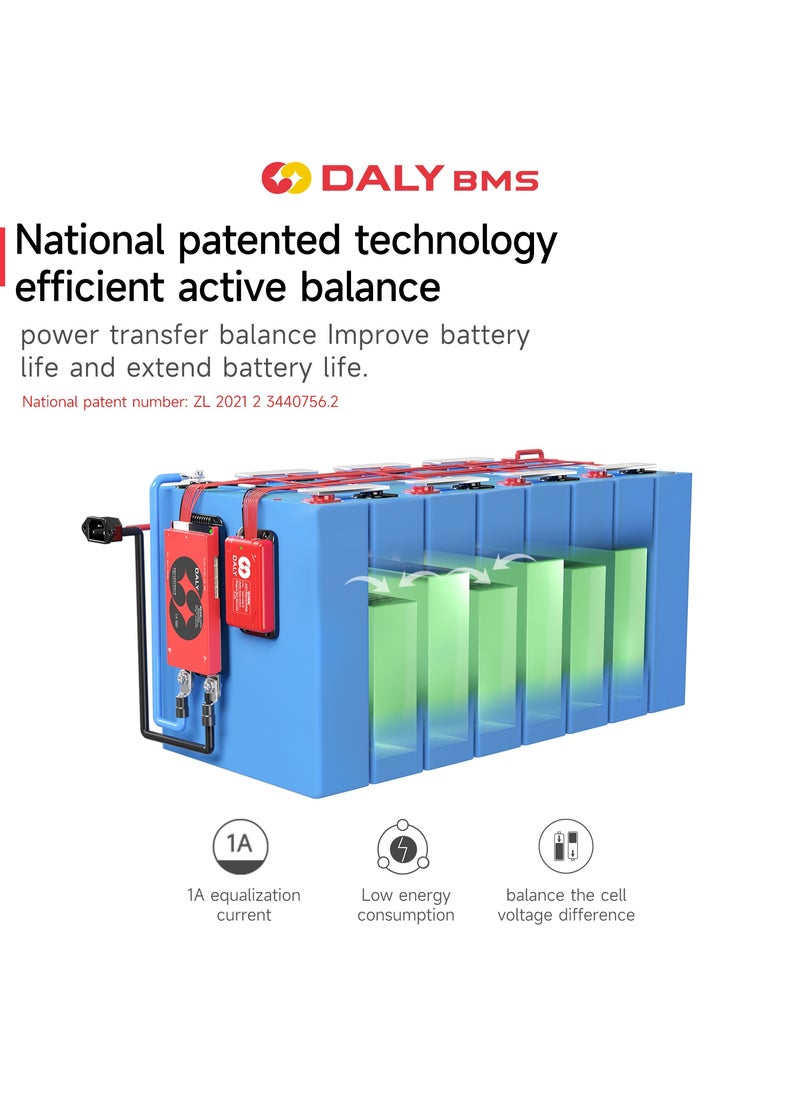

Active Balancing Technology: Uses active balancing (as opposed to passive balancing), which transfers energy from higher-voltage cells to lower-voltage cells, rather than dissipating excess energy as heat. This is not a smart active balancer and does NOT HAVE communication function(Does not have Bluetooth APP&PC software).
Wide Voltage Range: Supports battery packs with voltages commonly used in LiFePO4 or Li-ion batteries (typically 3.0V to 4.2V per cell for Battery pack).
Balancing Accuracy: With ±0.01V accuracy,High accuracy in balancing means that the cells will discharge and charge more evenly, reducing the likelihood of certain cells being overused or underused. This prolongs the overall lifespan of the battery pack.
Low Power Consumption: Active balancers are designed to have minimal power consumption during operation, allowing them to operate for long periods without draining the battery.
NOTE: Active balancers are designed to manage the number of cells in series in a battery pack. For example, for a 4S battery pack (four cells in series), the balancer must select the 4S.

Overview

Specification	Details
Balancing Current	0.01~1A
Balance Mode	Capacitive Active Balance
Suitable Battery Types	Li-ion & LiFePO4 Lithium Battery (Not for LTO)
Battery Voltage	≥10V
Working Power Consumption	<1mA
Sleep Current	<5µA
Balance ON Condition	First string voltage ≥ 3.1V ± 0.1V & Voltage difference > 0.01V
Balance OFF Condition	First string voltage ≤ 3.0V ± 0.1V & Voltage difference < 0.01V
Working Temperature	-20℃ ~ +60℃

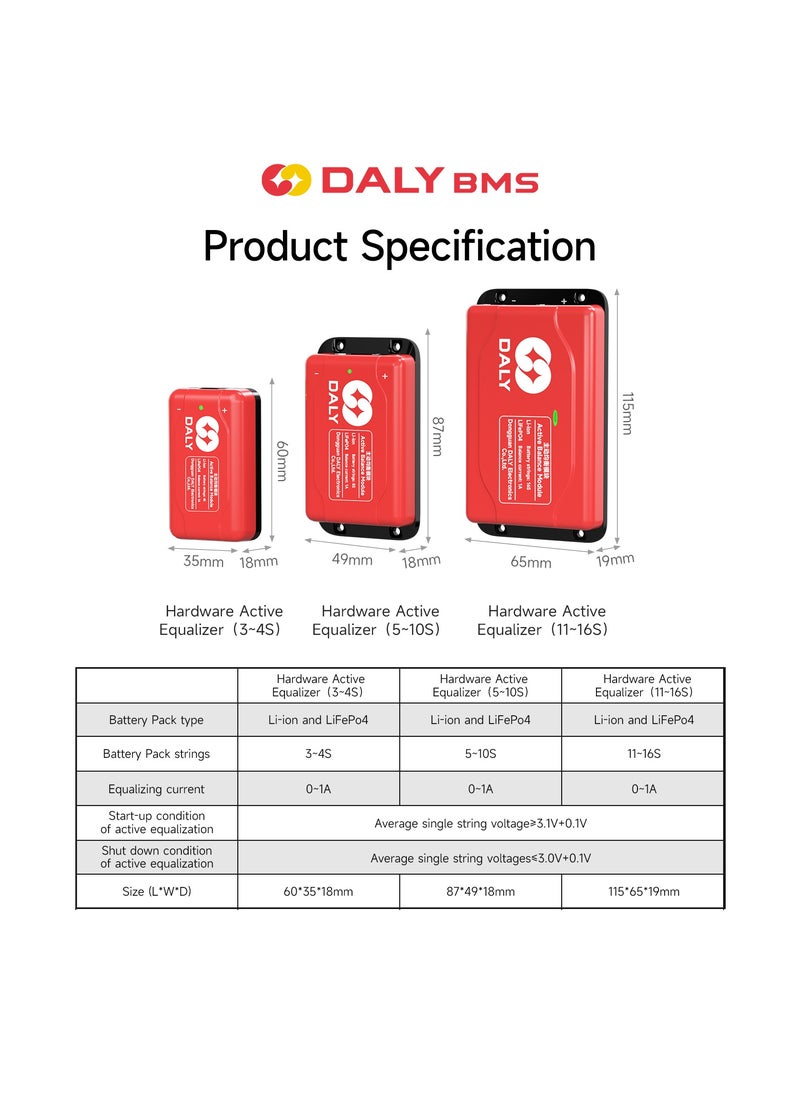

Product Dimensions	3S/4S: 60mm x 35mm x 18mm, 27g 7S/8S/10S: 87mm x 49mm x 18mm, 53g 13S/14S/16S: 115mm x 65mm x 19mm, 96g

How to Select the Active Balancer for Your Battery Pack

Consider the Battery Type: DALY hardware active balancer supports LFP or Li-ion Battery Pack. DALY smart active balancer supports LFP, Li-ion, or LTO Battery Pack.
Number of Cells: Select based on the number of cells in series (e.g., for a 4S battery pack, choose the 4S balancer).
Current Transfer Rate: Choose higher balance current (e.g., 1A or 5A) for larger battery packs.
Integration with BMS: For viewing voltages and setting parameters, select the Smart Active Balancer with communication function. Note: Hardware Active Balancer lacks communication features.

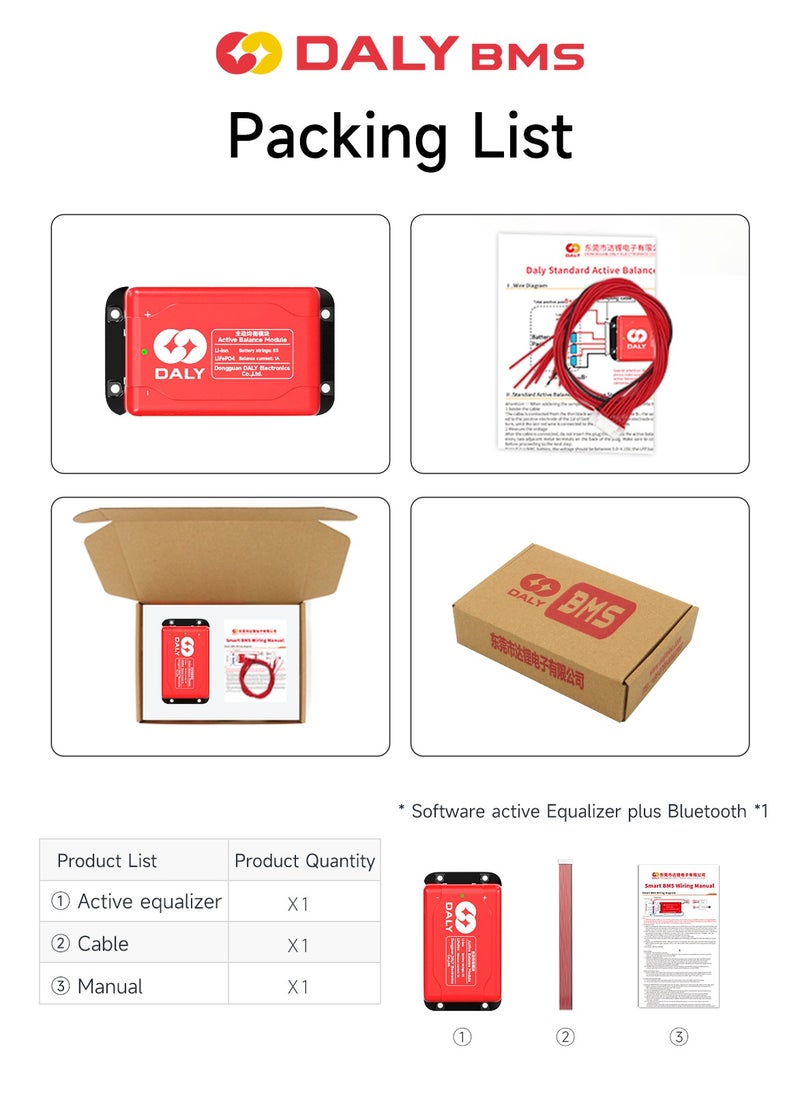

Packing List

1A Hardware Active Balancer *1
Sampling Cables *1
User Manual *1

Specifications

Colour Name	1A Active Balance
Product Length	115 mm
Product Height	65 mm
Product Width	19 mm
What's In The Box	1A Hardware Active Balancer 1 Sampling Cables1 Users Manual*1
Model Number	1A active balancer
Model Name	1A active balancer
