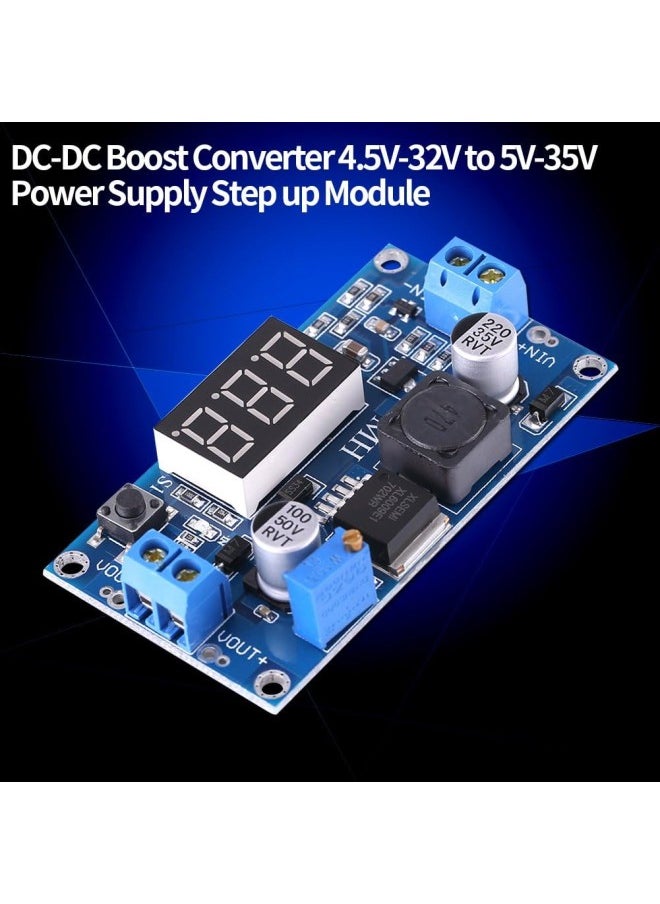

DC-to-DC Boost Module, 4.5V-32V to 5V-35V Adjustable Constant Current Voltage Buck Boost Converter Display

Sorry! This product is not available.

Product Overview

Highlights

Touch button switch changes measurement of input or output voltage, and there is indicator light shows which voltage is measured
Using the internal oscillation frequency of 400kHz, belong to second generation of the switch voltage regulator, low consumption, high efficiency

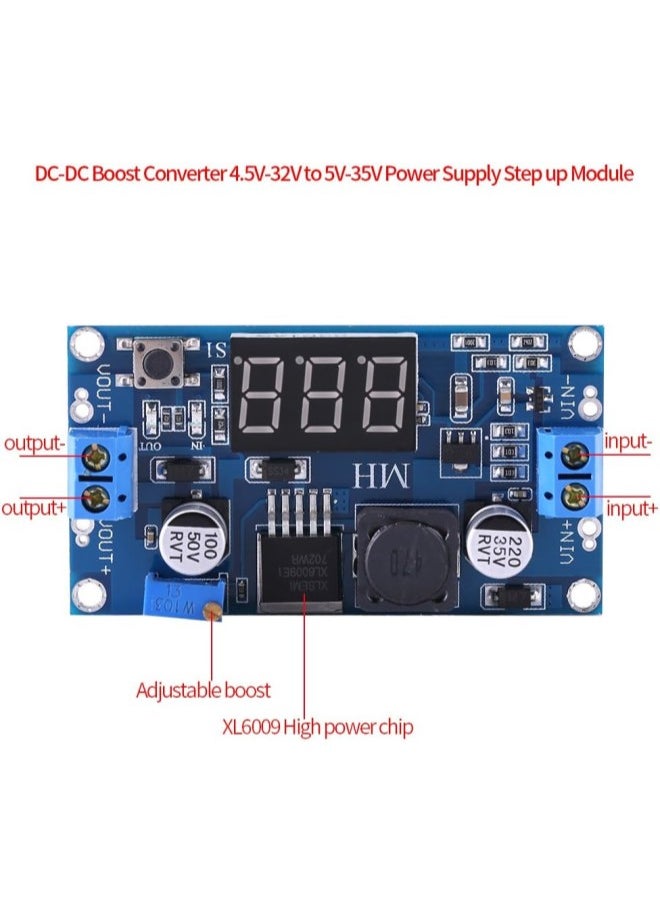

Input and output have screw terminals for convenient connection even with no soldering iron, and keep solder pad for soldering connection
The maximum output current can be up to 4A; it is recommended that the working current in about 2A, and add heat sink please if more than 2A
Designed with voltmeter, voltmeter error is ±0.1V, measuring range is 5V~35V

Overview

Specifications:

Input Voltage: 4.5V-32V
Output Voltage: 5V-35V (adjustable)

Max. Output Current: 4A

Efficiency: <92%

Output Ripple: <30mV

Switch Frequency: 400kHz

Operating Temperature: -40℃~+85℃

Size: 66*36*14mm/2.59*1.41*0.55"

Note:
1. If input voltage is lower than 4.5V, the voltmeter will not work and display.
2. Input voltage must be at least 1V higher than output voltage.
3. When power is over 20W, a heat sink is recommended to enhance heat dissipation.
4. If output voltage is always equals to input voltage and cannot be adjusted,turn potentiometer more than 10 circles counterclockwise please, then voltage can be adjusted normally.
