WYBOT

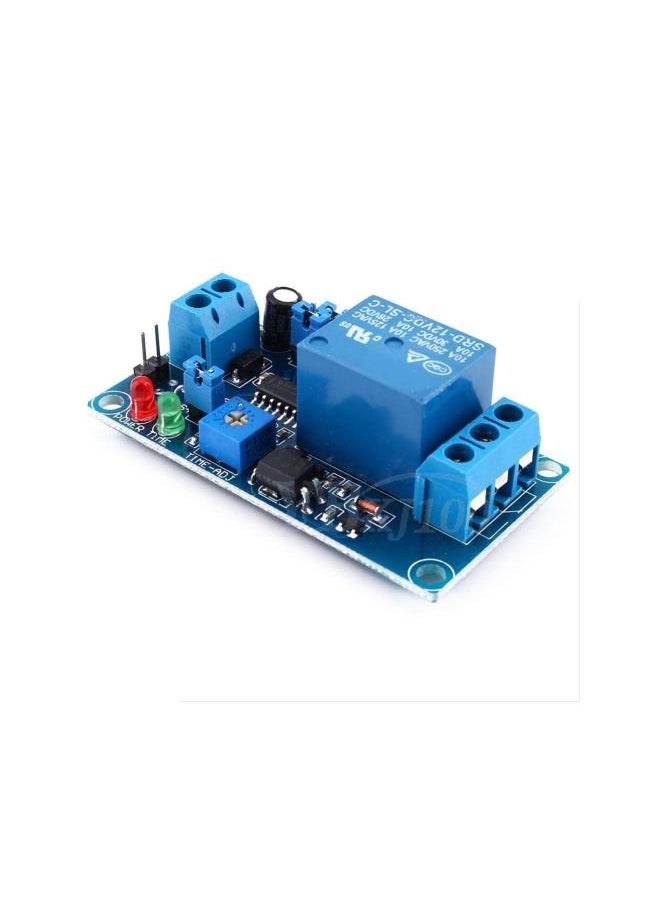

Delay Relay Board, DC 12V Delay Turn Off Switch Module with Timer,Relay Delay for Smart Home Tachograph GPS Industrial Control Electronic Experiment Arduino Robot,Trigger

Sorry! This product is not available.

Product Overview

Highlights

【Adjustble Time Range】Timer Relay is with Delay time range selection method, put S 124 switch to different position, the potentiometer can adjust different time ranges. The timing relay of the closed cycle module has high design precision. It has a wide adjustable time range 0.1s to 60min
【Long Time to Use】Delay-off Cycle Timer With delay adjustment potentiometer clockwise adjustment time longer. Trigger Delay Switching Relay Module With 8 time ranges selected shortest 0.1s most up to 1 hour.
【Large Current Load】The Delay Controller Board can be accessed by a large current load (250V AC 10A or 30V DC 10A). High performance control chip for high stability and low power consumption.
【Better Protection Module】Time Delay Relay is with protection against power reversal protection diode, better protection module;
【Wide Application】 Time delay relay can be used in robotics, car lamp delay, intelligent product development, automation equipment, PLC development, intelligent home, burglar alarm delay, and development of electronic

Overview

Electrical parameter:
Input Voltage: 12V
Quiescent Dissipation: 13mA
Maximum Power Consumption: 48mA
Relay Load Capacity:
250V 10A AC (2500W ideal power AC)
30V 10A DC (300W ideal power DC)
Size: 5.5*3cm/2.16*1.18"
Quantity:1pc

1 x 12V Delay Relay Turn on/ Turn off Module
