DENAP Electronics Development Set

DENAP Electronics Development Set

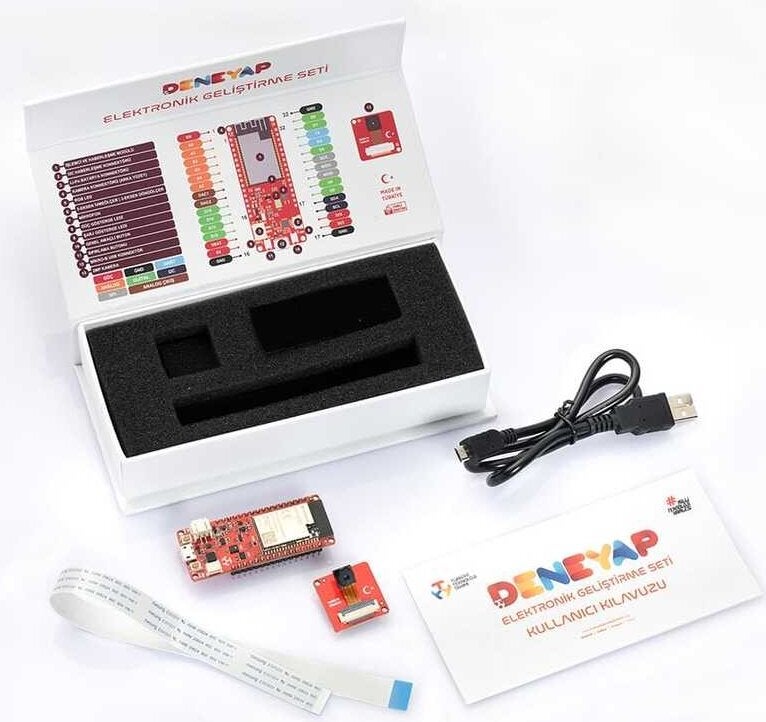

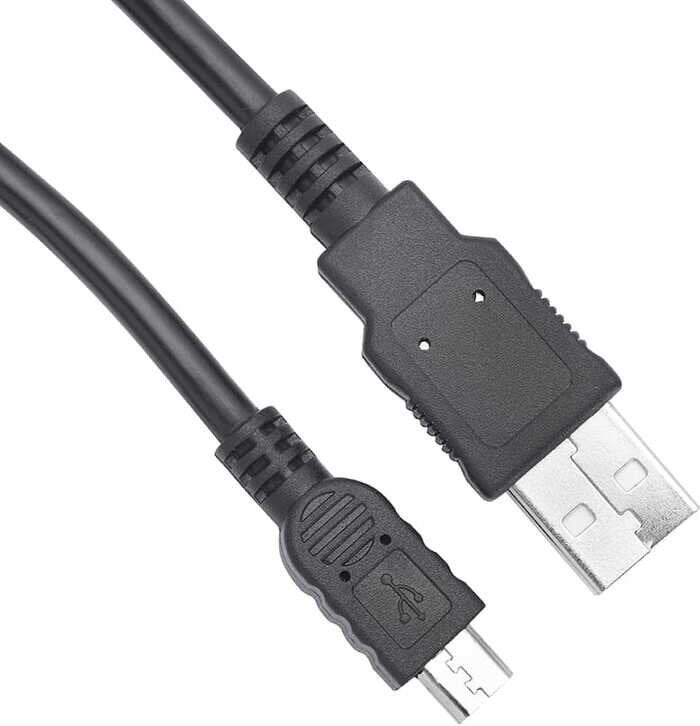

Desenap Card, Deneyap Camera, USB cable and Deneyap Camera connection cable are ready for you in a single box. Push the limits of your imagination with Deneyap Electronic Development Set!

Deneyap Card:

• The versatile and powerful electronic development board of the Deneyap family was developed using the original ESP32-WROVER-E module.
• With its powerful dual-core Tensilica Xtensa LX6 microprocessor, you can start machine learning and artificial intelligence-based projects with Tensorflow Lite.
• Thanks to its built-in Wi-Fi and Bluetooth communication features, it will enable you to prepare internet of things and cloud-based projects.
• You can exchange data between your system and your cloud-based application using the Wi-Fi communication feature. You can establish a closed-loop wireless communication network by using Deneyap Kart as a server.
• With the dual mode Bluetooth feature, you can exchange data with devices that have both BLE and Bluetooth EDR infrastructure. DENAP Card; smart home, smart agriculture, smart vehicles, mobile health, etc. It offers you great convenience in Internet of Things projects where you can implement applications in areas. Deneyap Kart has an internal high-sensitivity LSM6DSM sensor. With this sensor, you can measure 3-axis acceleration and 3-axis rotation and monitor the temperature of your system.
• With its built-in MP34DT05 microphone with MEMS technology, Deneyap Kart not only detects the intensity of surrounding sounds; It allows you to make speech and voice recognition applications.
• It has a rich connection interface such as UART, I2C, SPI, I2S, Ethernet, SDIO, Capacitive Sensor. Additionally, to provide you with flexibility, some of these connection interfaces can be used from any pin you want according to your needs.
• It has 24 pins that can be used for general purposes. Among these pins used as digital input/output, they are protected against overcurrent with a PTC fuse.
• A dedicated Li-Po connection connector is included to help you reliably power your system. Moreover, you can charge your Li-Po battery using this connection connector.

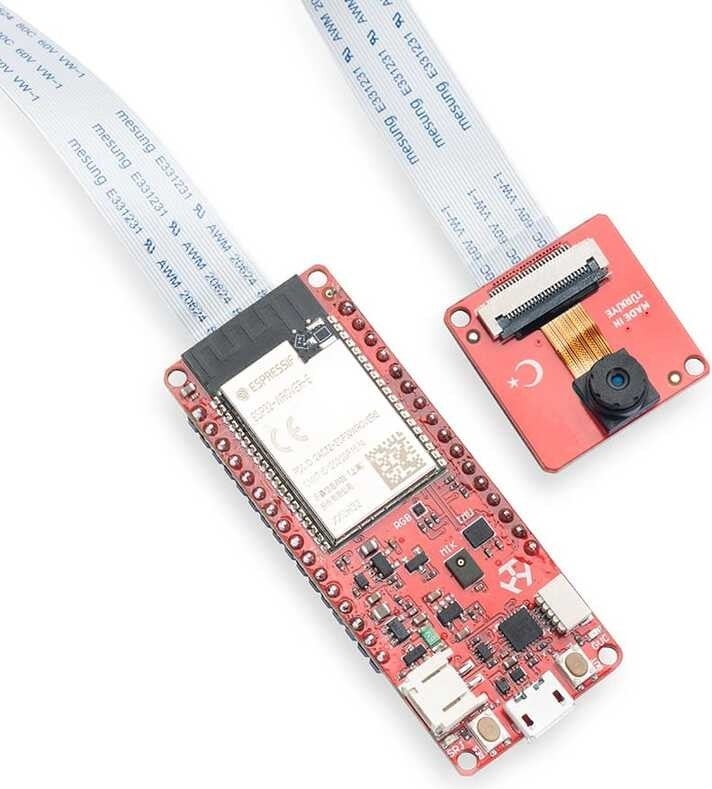

• You can connect the Deneyap Camera directly to the (FPC) connector on the Deneyap Card
• There are also 2 buttons and 1 RGB LED built-in.
• By using the I2C communication connector, you can quickly implement your system consisting of sensor and actuator units without cable connection or soldering. You can get 3.3V and 5V voltage output from Deneyap Card to use it in peripheral units to which you will provide an uninterrupted external connection. Even when powering your system with a Li-Po battery, the power output with 5V voltage will always be with you.
• Desenap Kart has a design compatible with a breadboard. The pins are soldered for you so you can start developing right away.
• Deneyap Card is compatible with Arduino IDE. You can start coding using the instructions.

Deneyap Card Technical Specifications:

• 240 MHz Dual Core Tensilica LX6 Microprocessor
• 520KB SRAM
• 128KB ROM
• 8MB PSRAM
• 4MB SPI Flash
• 2.4GHz Wi-Fi – 802.11b/g/n
• Bluetooth EDR and BLE
• Internal PCB Antenna
• 3-Axis Gyroscope and 3-Axis Accelerometer with LSM6DSM
• MP34DT05 MEMS Microphone
• RGB LED (Pins: RX, TX, SDA)
• General Purpose Button (Pin: GPKEY)
• Li-Po Battery Charging
• Li-Po Battery Connector
• USB Micro-B
• I2C Communication Connector
• 24 x Digital Input/Output Pins
• 16 x Analog Input Pin (12-bit ADC)
• All Digital Input/Output Pins; Supports UART, SPI, I2C Communication Interfaces and External Interrupt
• All Digital Output Pins Support PWM
• 3.3V Operating Voltage
• 3.3V and 5V Output Voltage
• 3.3 – 5.5V Input Voltage
• 63.50mm x 25.4mm x 15.70mm



Deneyap Camera Technical Specifications:

• Sensor: Omnivision OV2640
• Resolution: 2 Megapixels
• Lens Type: Fixed Focus
• Focusing Range: 60cm – Infinity
• Field of View (FoV): 66 degrees
• Infrared Filter: Yes
• Maximum Image Transfer Rate: 1600 × 1200 @15fps, SVGA @30fps, CIF @60fps
• Dimensions: 25.4mm x 25.40mm x 9.40mm

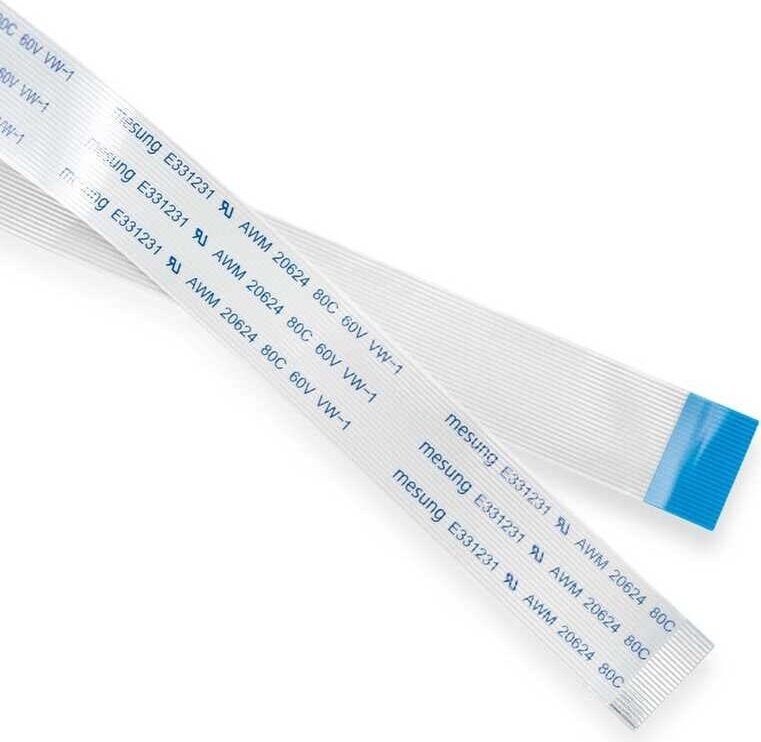

• Connection: 24-pin Flat Flexible Cable (FFC)
• Image Signal Processing Functions: Auto Exposure Control (AEC), Auto White Balance (AWB), Auto Gain Control (AGC), Auto Band Filtering (ABF), Auto Black Level Calibration (ABLC)
• Image Quality Control Features: Sharpness, Noise Reduction, White Pixel Prevention, Lens Correction, 50/60Hz Brightness Detection, Anti-Noise, Artifact Reduction, Gamma, Color Saturation, Variable Frame Rate Control Special Effects

Experimental Camera:

• Desenap Camera has a 2-Megapixel OV2640 sensor and an infrared filter lens.
• It is compatible with Deneyap Card and you can connect it to Deneyap Card with a 24-pin Flat Flexible Cable (FFC).
• You can shoot videos at 1600 x 1200 pixels with an image transfer rate of 15 fps and photos at 1600 x 1200 pixels.
• Entry-level object identification, face recognition, image classification, etc. You can use Deneyap Camera in artificial intelligence applications.
•
