KASTWAVE - Desktop Computer Power Switch External Remote Start PC Motherboard Power On Off Switch Button Extension Cable - Image 1

KASTWAVE

Desktop Computer Power Switch External Remote Start PC Motherboard Power On Off Switch Button Extension Cable

67.00

Inclusive of VAT

Only 1 left in stock

Get it by 18 May

Order in 18 h 20 m

Delivery by noon

Cash on Delivery

Secure Transaction

Explore other bestsellers in
Networking Switches

BANK OFFERS

Earn 5% cashback with the Mashreq noon Credit Card.

SELLER

Item as shown

Partner since

This item is eligible for free returns

Product Overview

Highlights

External switch of desktop PC: Using the power switch with a long cable, add or extend the power on button to the place which you feel more convenient.
Mechanical shaft key switch: Using the mechanical axis key as the on/off button,it feels like pressing the mechanical axis keyboard.

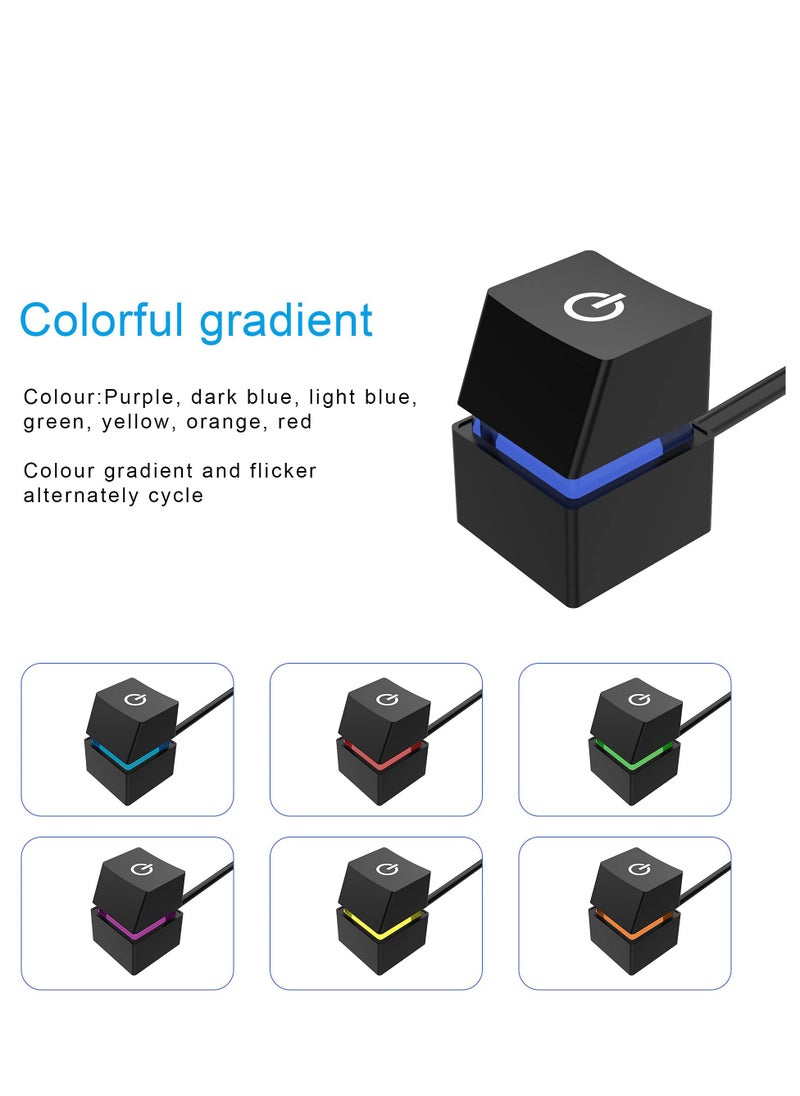

Colorful gradient light effect: The feel of mechanical key, coupled with colorful gradient lighting effect, gives you a different on-off experience.
Convenient installation: Connect these four wires to the corresponding position of the motherboard in turn, or use the standby splitter to connect the original computer power on key and the external power on key at the same time.

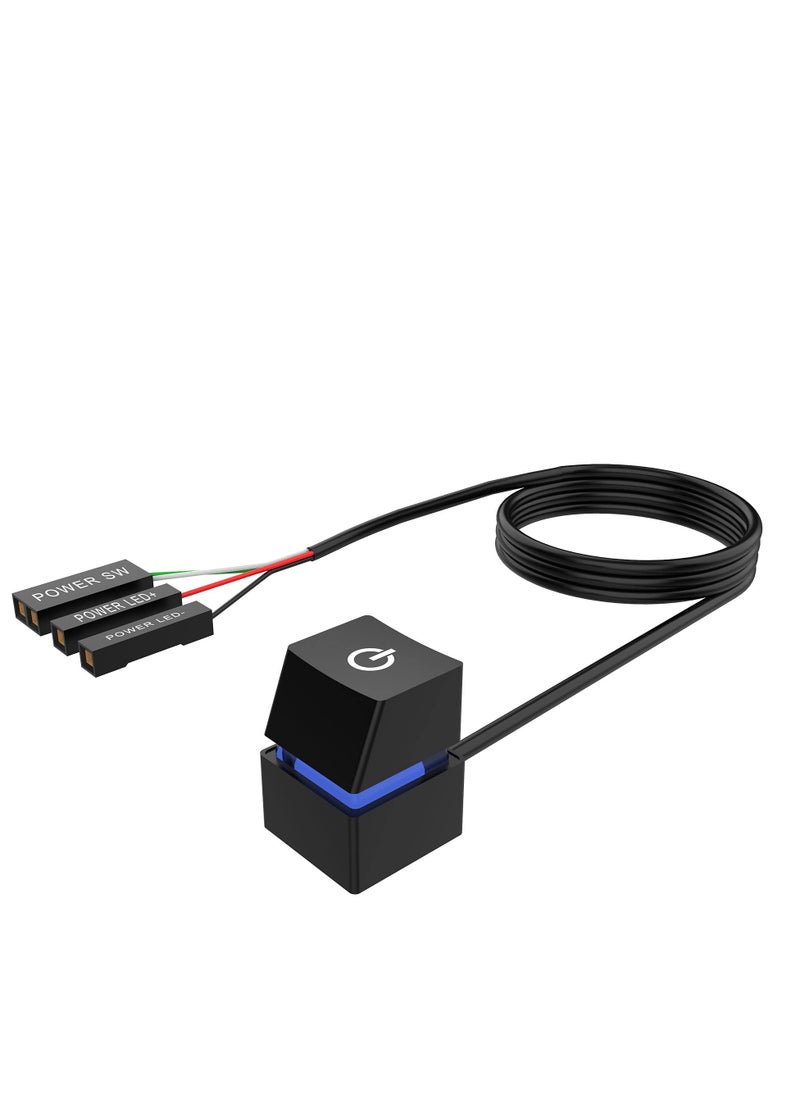

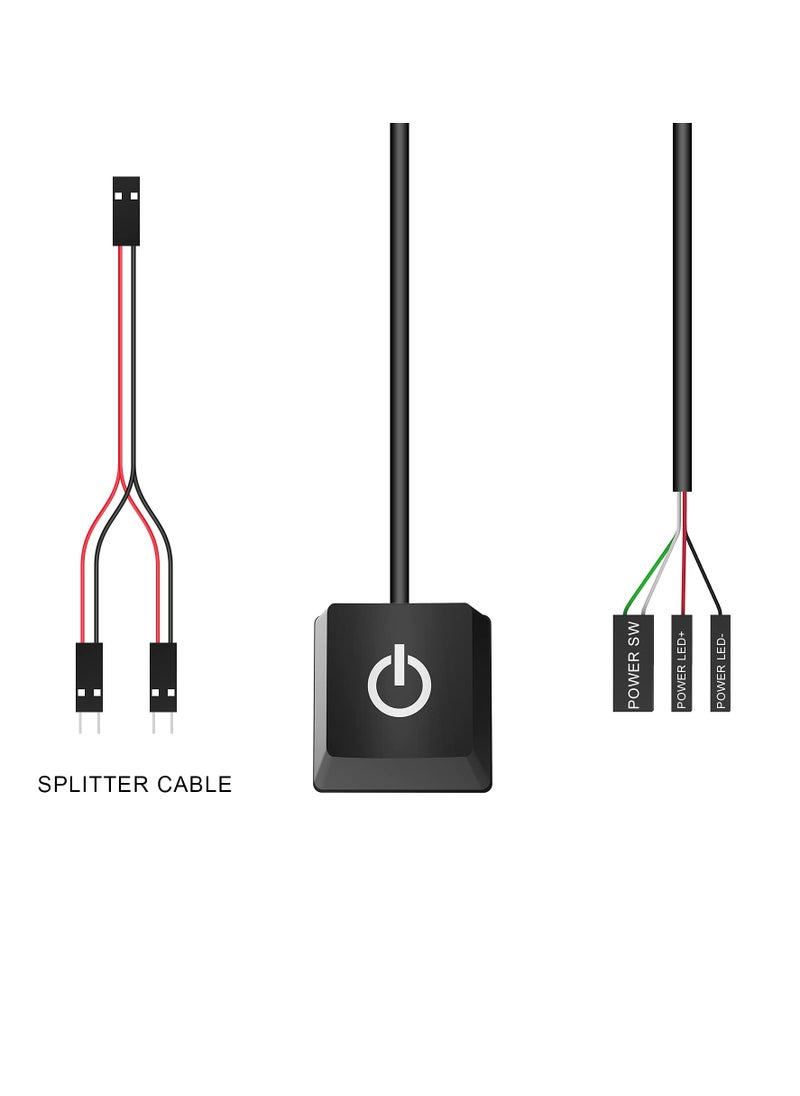

Complete accessories: Desktop computer power switch with 2M cable * 1,Power SW splitter * 1,Invisible double-sided adhesive pad * 2, Cable tie * 2.

OverviewProduct description:
Desktop switch weight: about 1OZ(28g)
Switch extension cable length: 78.7"(200cm)
Switch case color: black
Case Material: ABS
Switch case size: 0.78"*0.78"*1.18" (20*20*30mm)

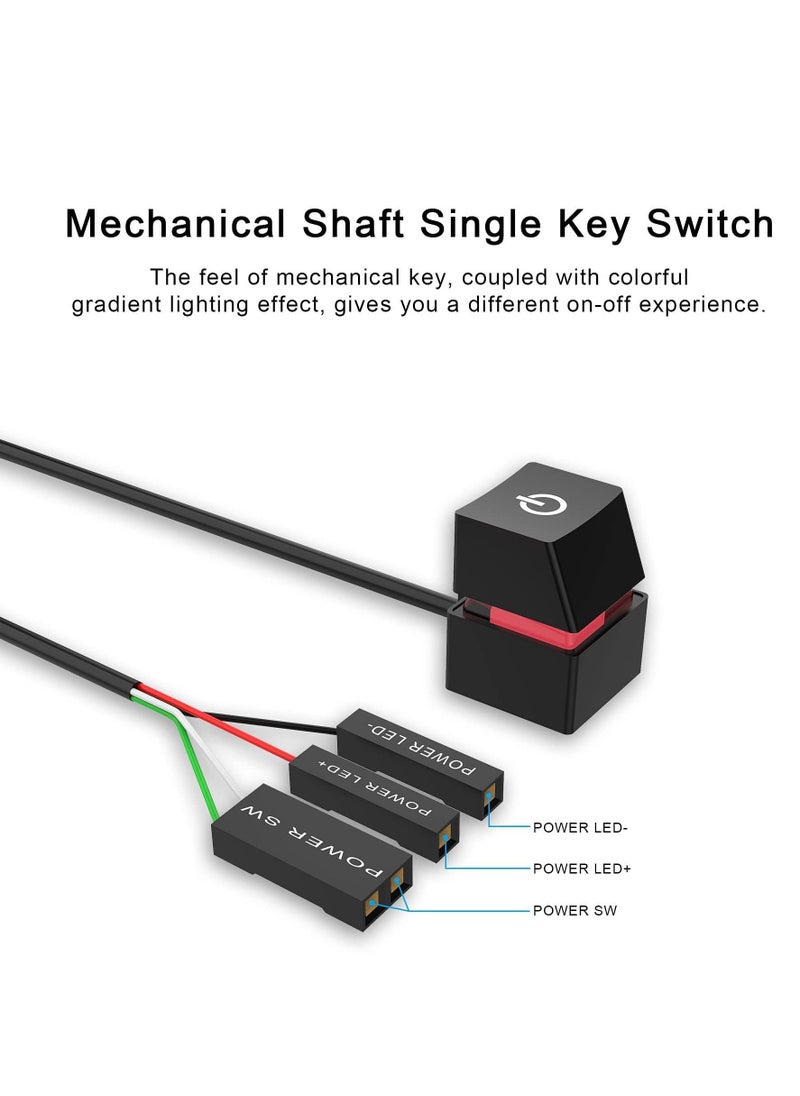

Connection terminals: POWER SW,POWER LED+,POWER LED-
Installation guide:
A. Find a suitable hole from the back of the chassis and lead the connecting cable of the desktop switch into the chassis.

B1. No longer use the original power on key, only use the external extension power on key.
a. Change the jumpers one by one,do not install led + and led - in reverse direction.
b. After checking that all terminals are connected correctly, confirm that the start button and led functions are normal.

B2. The original power on button and the external power on button all need to be able to work normally.
a. Change POWER LED+ and POWER LED- one by one, and do not install led + and led - in reverse direction.
b. Find the POWER SW jumper on the motherboard,remove the original terminal,connect the splitter's female teminal to the main board, and then connect the original power SW terminal and the external power SW terminal to the other end of the splitter.
c. Confirm that the start button and led functions are normal.

C. If you don't need the LED colorful effect, you can choose not to connect the two POWER LED terminals.
D. Bind and fix the connecting wire with the attached cable tie.
E. After confirming the position of the external switch,then use the attached invisible double-sided adhesive pad to fix the switch.

Reminder:
Please make sure that this desktop switch is suitable for your desktop computer,avoid unnecessary troubles such as damaging the chassis.

Package Include:
Desktop Switch: 1 pcs
Spare splitter wire: 1 pcs （for power SW)
Double-sided adhesive pad: 2 pcs
Cable tie：2 pcs
