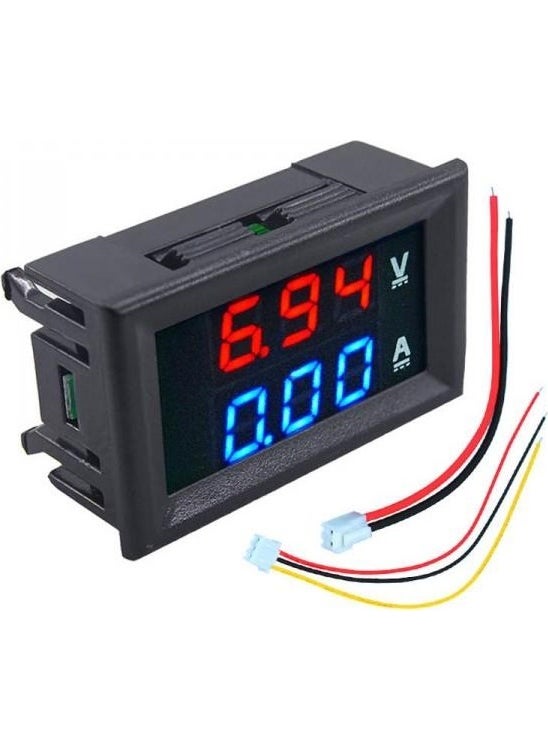

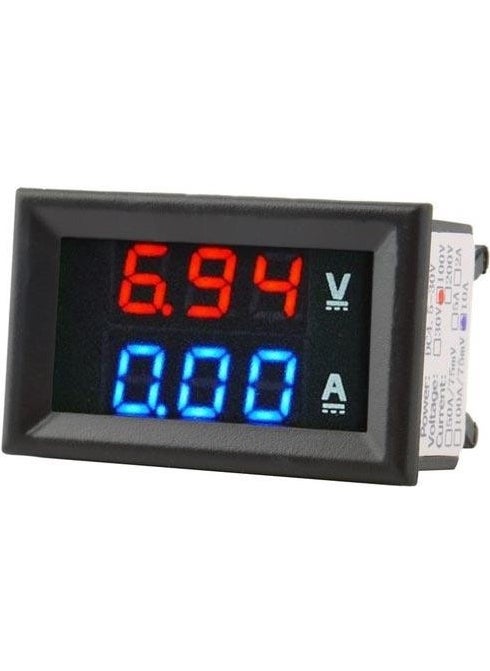

Digital Ammeter 0-10A Voltmeter 0-100V - With Case

0-100V / 0-10A - Digital Voltammeter

0-100V / 0-10A - Digital Voltammeter To use the product, you need to mount it on a panel or box. It is a very useful solution for measuring voltage and current in compensation or power panels. You can also use the product as a normal measuring device by placing it in a small box and connecting a probe. In the 0-10V range, you can read the two values after the dot. In the 10-99V range, one value can be read after the dot.

Example:

Tension: 5.425 Read: 5.42

Tension: 54.25 Read: 54.2

The product can measure voltage in the range of 0-100V and current in the range of 0-10A.

Note: For the product to work, you must connect a constant 4.5-30V voltage supply. The supply input, voltage measurement input and current measurement input are different.

0-100V / 0-10A - Digital Voltammeter Technical Specifications

• Operating voltage: 4.5-30V DC
• Working current: ≤20mA
• Display: 0.28Inch Bi-color blue and red
• Measuring range: DC 0-100V 0-10A
• Minimum resolution (V): 0.1V
• Refresh rate: ≥100mS/times
• Measurement accuracy: 1% (± 1 digit)
• Minimum resolution (A): 0.01A
• Operating temperature: -15 to 70°C
• Working pressure: 80 to 106 kPa
• Size: 47×28×16mm / 1.85*1.10*0.63″
• Net Weight: 19g
• Weight: 29g
