DONGKER RS232 to LIN Bus ModuleRS485 to UART Converter DB9 Female Connector Breakout Board

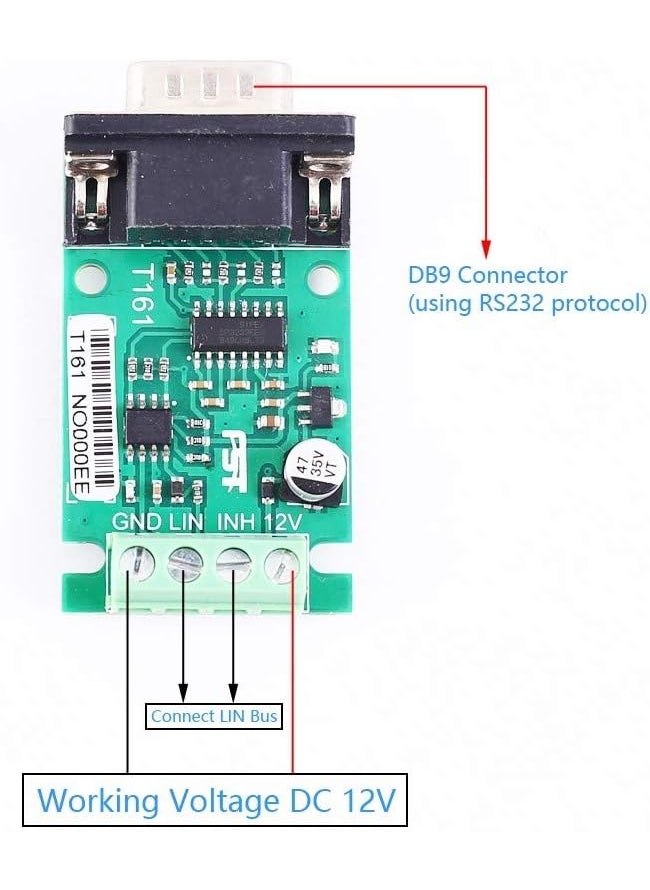

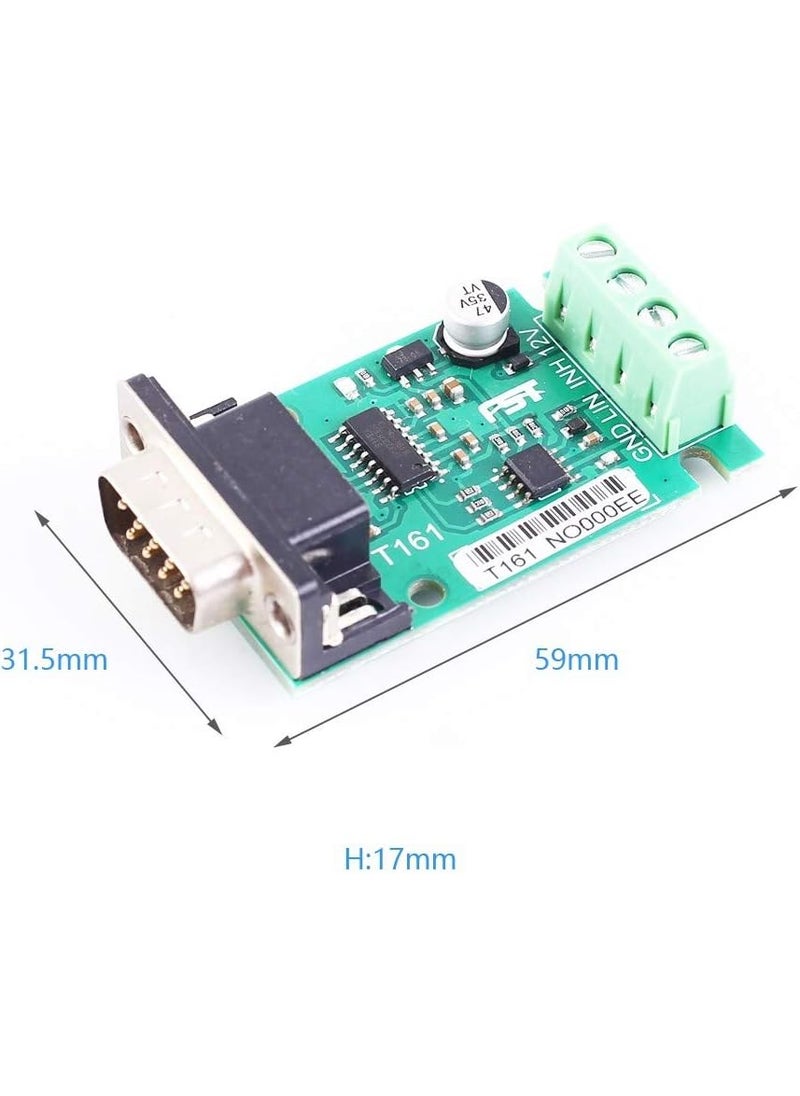

OverviewDescription: It is a RS232 to LIN bus module.The module is designed with the SP232EEN+TJA1020 chip solution.It is mainly used for communication monitoring and maintenance of LIN bus equipment. Feature: 1. Pure data signal conversion. 2. Its data is stable. 3. It has a green power indicator that shows the working status. 4. It can monitor and maintain LIN bus device communication. Specification: Product Name: RS232 to LIN Bus Module Product Chip: TJA1020 Working Voltage: DC 12V Work Temperature: -25~85 Work Humidity: 5%~95%RH Size: 59*31.5*17mm Specific Function Introduction: 1. The measured baud rate of the module can reach 57600bps,and the recommended maximum operating frequency is less than 20Kbps. 2. This module is just a level conversion module and does not participate in conversion analysis such as software protocols. 3. When the module is connected to the computer's COM port,the computer can receive data,but it cannot communicate with your slave device as a host.The computer's com port cannot generate the 13-bit start bit in the LIN protocol,but it can be connected to a development board such as a microcontroller. Package list : 1pcs RS232 to LIN Bus Module 1pcs DB9 Male Screw
