Generic - Dual Flow Argon Regulator Dual Output CO2 Flowmeter for Mig Tig Flow And Backpurge 60 SFCH - CGA 580 Inlet Connection - Accurate Gas Metering Delivery System - Image 1

Available Soon

Generic

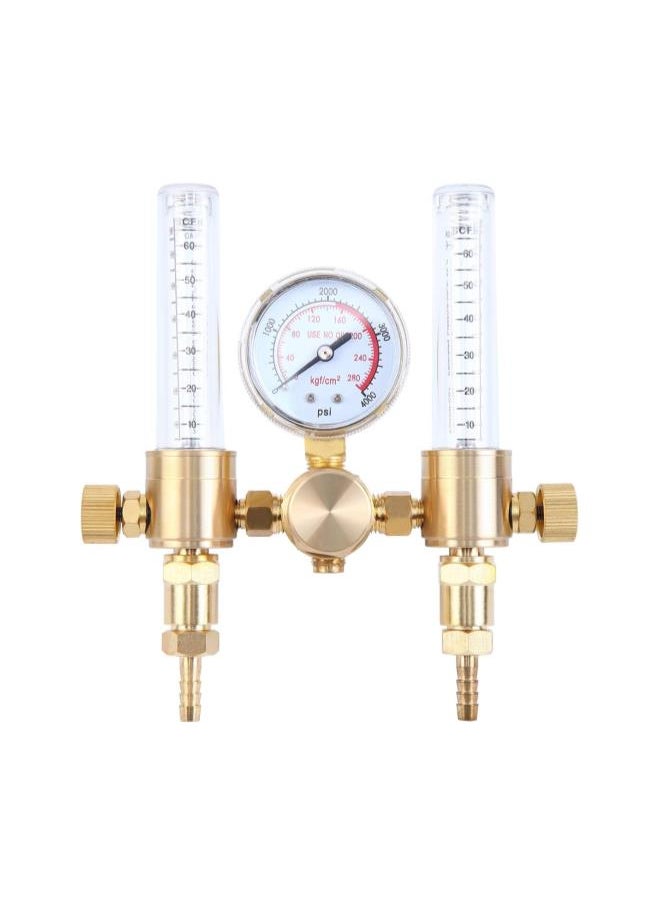

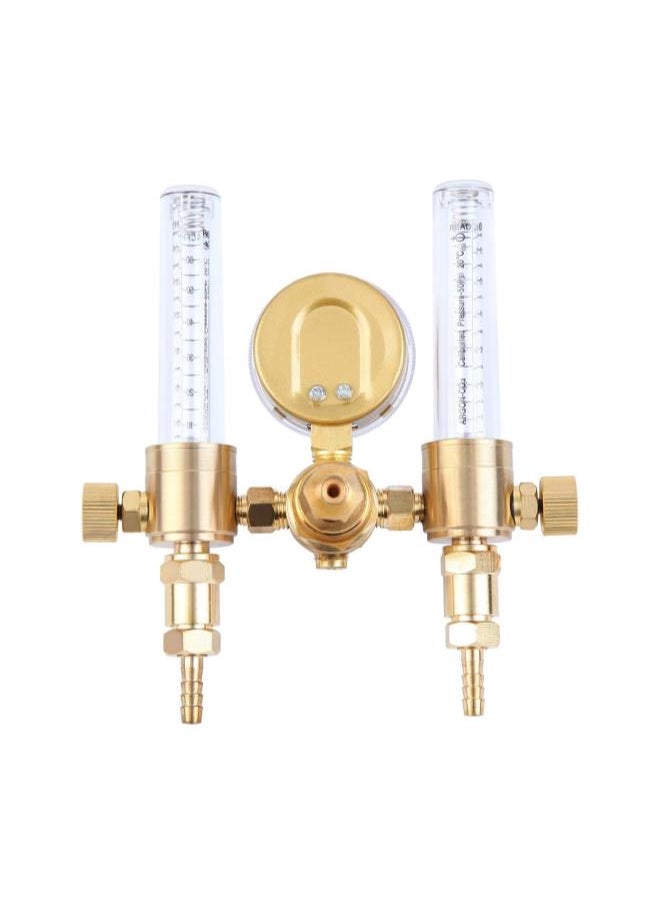

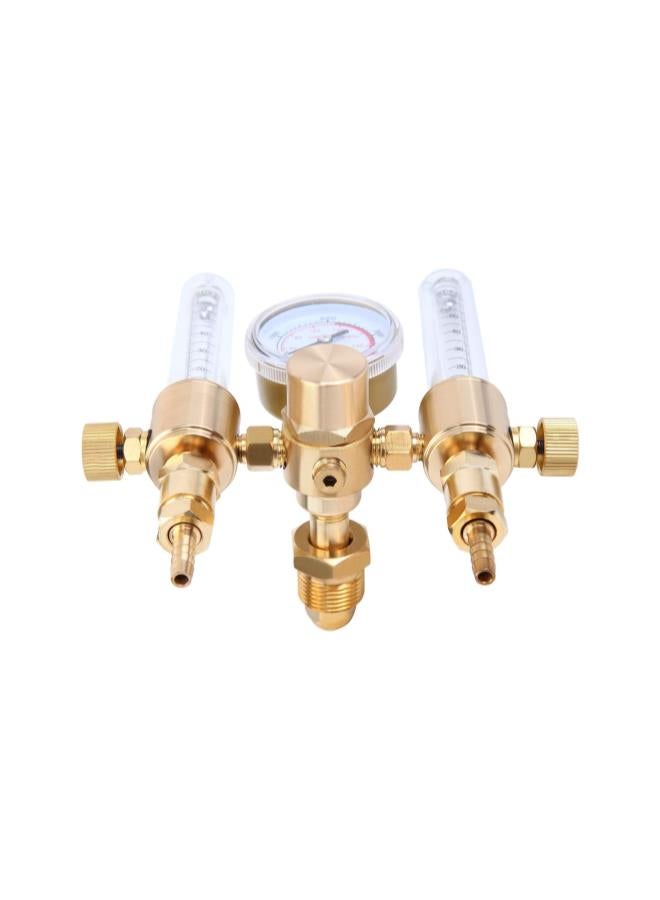

Dual Flow Argon Regulator Dual Output CO2 Flowmeter for Mig Tig Flow And Backpurge 60 SFCH - CGA 580 Inlet Connection - Accurate Gas Metering Delivery System

Sorry! This product is not available.

Product Overview

Highlights

?Accurate gas flow gague,the pressure gauge goes from 0 to 4000 psi
?The fitting is the US standard CGA-580,applicable for many kinds of gases, such as argon, helium, nitrogen and argon mixed tanks
?The output flow is adjustable from 10 to 60 SCFH (cubic feet per hour).The outlet fit both the female 9/16" x 18 nut or the male 5/8" x 18 fitting
?Our dual dutput argon regulator is made by durable brass, enough to use in a long time
?Suitbale for MIG and TIG welding applications.For convenience, the regulator is equipped with a high pressure weld gauge that allows you to view how much gas is left in the tank, while the ergonomic flow meter can be adjusted for different uses

Overview

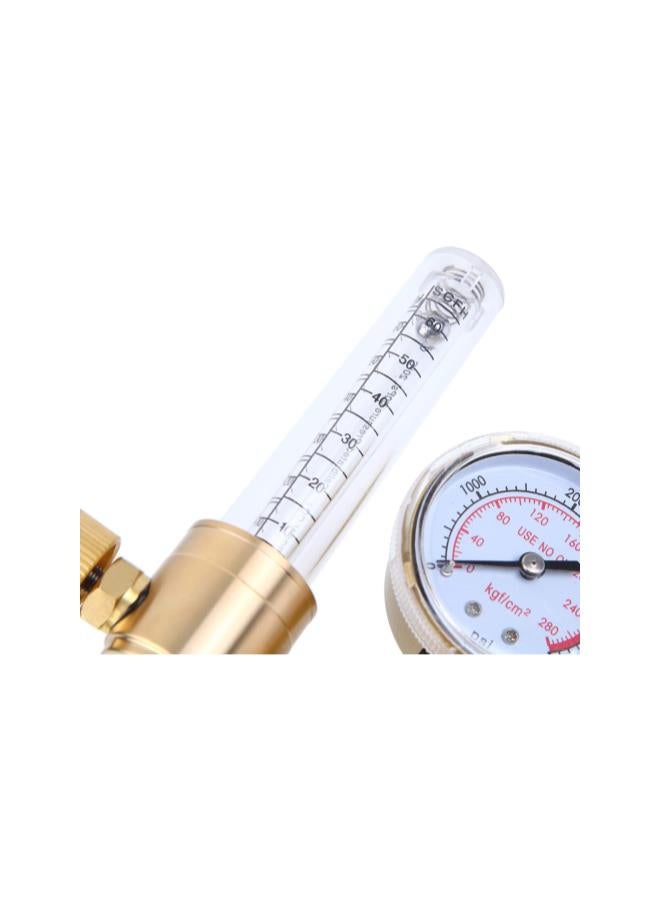

This New Dual Flow Meter is designed for handling MIG and TIG welding both steel and aluminum. It fits all argon, helium, nitrogen, and argon/CO2 mixed gas tanks. Its output flow is adjustable from 10 to 60 cfh (cubic feet per hour) at a preset 50psi, and is indicated by a ball which moves up and down in the flow tube.

Feature:

Perfect for Mig and Tig Welding.
Flow Meters are more accurate than the flow gauge regulators,for it does not use a diaphragm.

Specification:

Flow:30LPM
Material: brass
Tube scale:10-60SCFH
Pressure range: 0-4000psi
Pressure gauge:4000psi/0-280kg/CM?
Fit for: the female 9/16" x 18 or the male 5/8" x 18
Screw specifications: US Standard CGA-580 Connector
Compatible gases:all argon, helium, nitrogen and argon/carbon dioxide mixed gas tanks(not suitable for CO2 cylinders)
