Compact structure, full function and air-cooled heat dissipation.
Low frequency, fine sound quality, suitable for home or theater.

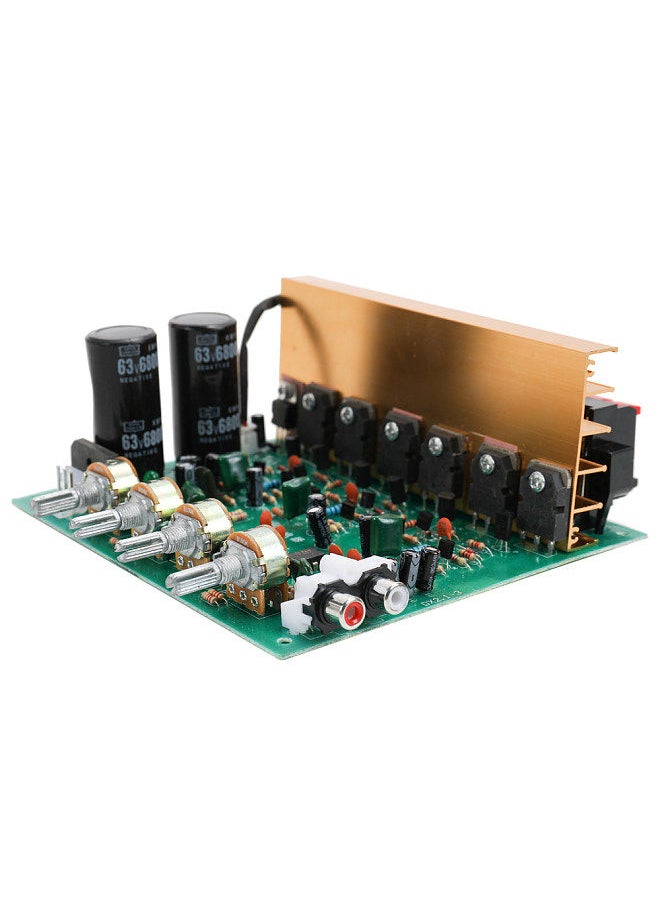

Large power is more stable, the board uses six disassemble amplifier tubes(used), 4 responsible for the left and right channels, the other two connected to BTL circuit for subwoofer use, wiring is very simple, especially for DIY.

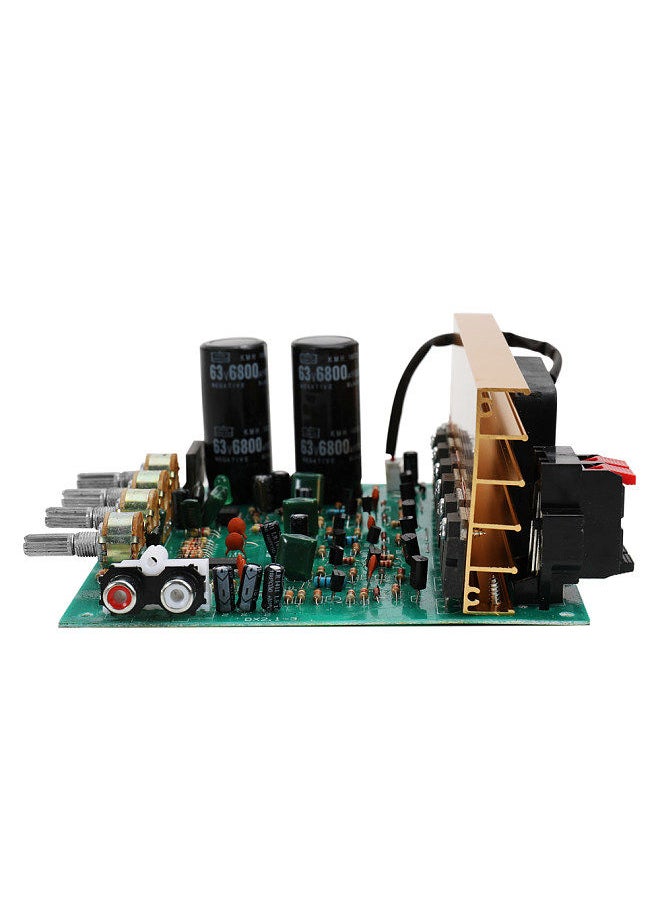

Four chips, all-dimensional protects, air-cooling fin and heat transfer fan.
Boot delay and instantaneous shutdown.
OverviewSpecifications:
Type: A
Model: DX-2.1-3
Working Voltage: DC18V-24V
Output Power: 2 * 80W
Mega Bass Output: 120W
Right and Left Channel Output: 100W+100W
Frequency Response: 20HZ-30KHz
Distortion Factor: 1%

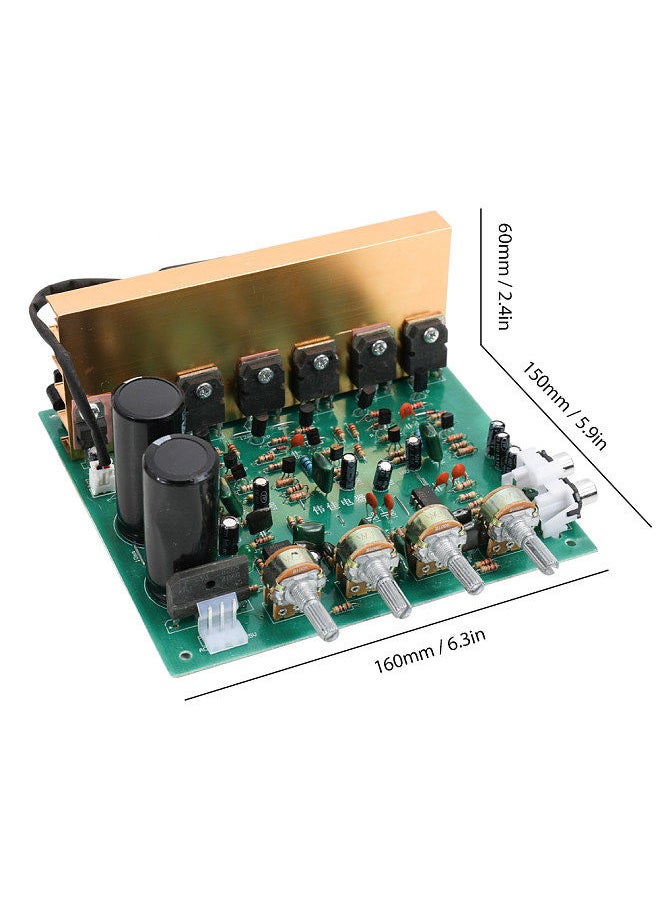

Item Size: 160 * 150 * 60mm / 6.3 * 5.9 * 2.4in
Package Size: 160 * 155 * 65mm / 6.3 * 6.1 * 2.6in
Item Weight: 280g / 9.9ounce
Package Weight: 330g / 11.6ounce
Note:
Please allow 1-3mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Specifications
What's In The Box
1 * Power Audio Amplifier Board
Model Number
DX-2.1-3
Model Name
DX-2.1-3
