Highlights- Supports E-TTL functions (FEC, FEB, Front and Rear-curtain sync, FE lock, Modeling Light), support for Canon camera menu accessible.
- Double-Tube Macro Flash, flash ratio can be adjusted, there are 8 levels (1/128-1/1) for the intensity adjustment for the flash control, total 22 levels fine tuning
- The Flash Coverage: Vertical angle: Upwards, downwards 90 degrees; Horizontal angle: inwards 60 degrees
- Ultra-fast charging recycle system, just take 3 seconds at full output. Even if not using the brand new batteries, it just takes 4~5 seconds to recycle.
- The LED focus assist light is divided into low light and highlight mode, achieve rapid precise focus.

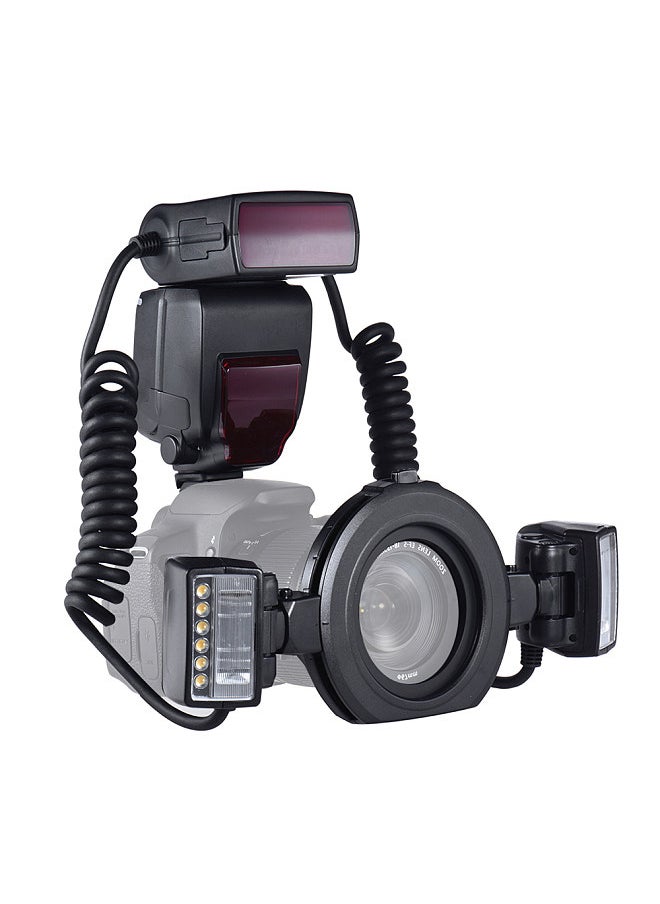

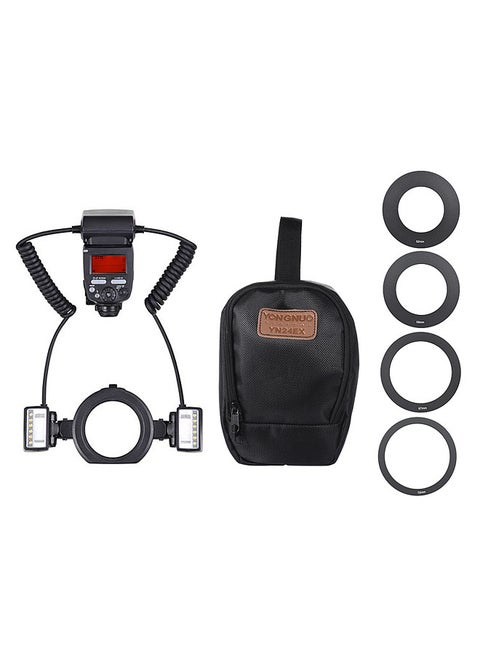

OverviewModel: YN24EX
Circuit Design: Insulated Gate Bipolar Transistor (IGBT)
Type: Automatic macro flash for close-up photography
Flash Ratio Control: Two flash heads: 24/79, Single flash head: 26/85 (ISO 100 105mm )
Flash Coverage: Vertical Angle: Upwards, downwards 90 degrees
Horizontal Angle: Inwards 60 degrees, outwards 30 degrees
The rotate degree of the adapter ring: Upwards 50 degrees, downwards 30 degrees
Guide No.: With the precision of 1/2 EV within the range of 8:1 - 1:1 - 1:8
Flash Mode: TTL, M
Lighting Times: 200~2500 times
Recycle Time: Approx 3s
Power Supply: 4pcs AA alkaline batteries or AA Ni-MH batteries
Color Temperature: 5600k
Flash Time: 1/200s~1/20000s
Flash Control: 8 levels of output control (1/128~1/1), 22 levels of fine tuning
External Interface: Hot shoe, PC port and external charging port
Control Unit Dimension: 175 * 105 * 160mm
Flash Unit Dimension: 251 * 49 * 107mm
Item Weight: 870g / 30.7oz
Package Size: 22.5 * 14.5 * 11.3cm / 8.9 * 5.7 * 4.5in
Package Weight: 1008g / 35.6oz
Note:
Batteries are not included.
