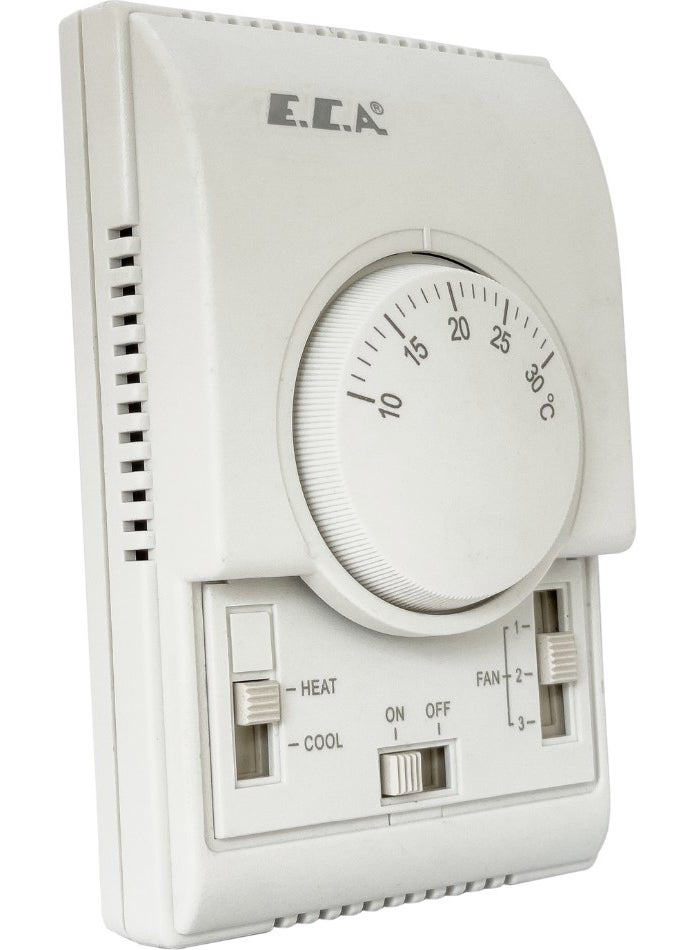

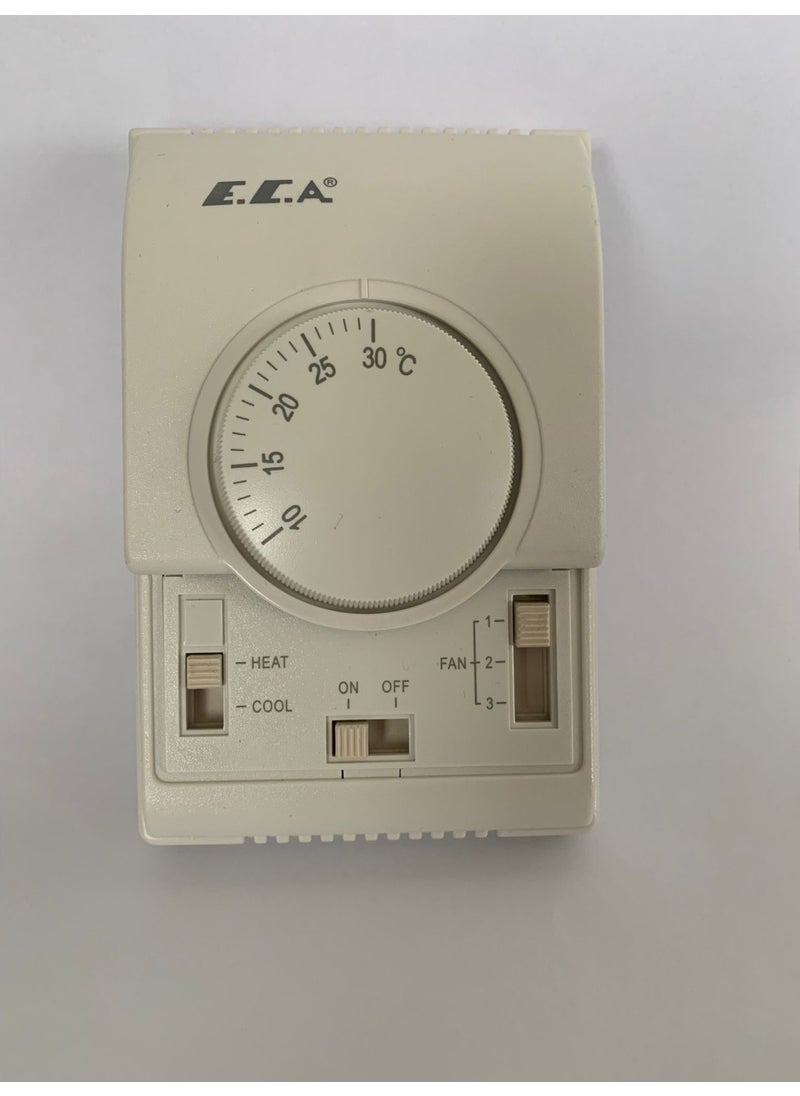

ECA FCBY22 ELECTRO-MECHANICAL FANCOIL THERMOSTAT

ECA FCBY22

Electro-Mechanical Fancoil Control

FCBY22 Electro-Mechanical Fan Coil Controller For Control of 2-4 Pipe Fan Coil Systems
Cool/Heat and 3-Stage Fan Speed Selection Available
On/Off Button
Thermostatic Fan Control Possibility
Gas Capsule Duyar Element
Surface Mounted Wall Mounted
Suitable for All Brands of Fan Coils
When it reaches the set temperature, the 2-way valve closes and the fan stops or continues to operate with optional connection.
Technicial Specifications :
- size: 88mm x 88mm x 12mm
- power supply: 100-240 vAC 50/60 Hz
- Fan Relay induction Current: 3(2) a
- heating/cooling Relay induction current: 3(2) a
- Room Temperature control range: 5 °C - 35 °C
- Protection Class: IP21
- Working Environment: 0-50 °C , 5-95% rH
- hysteresis :+- 1 c
