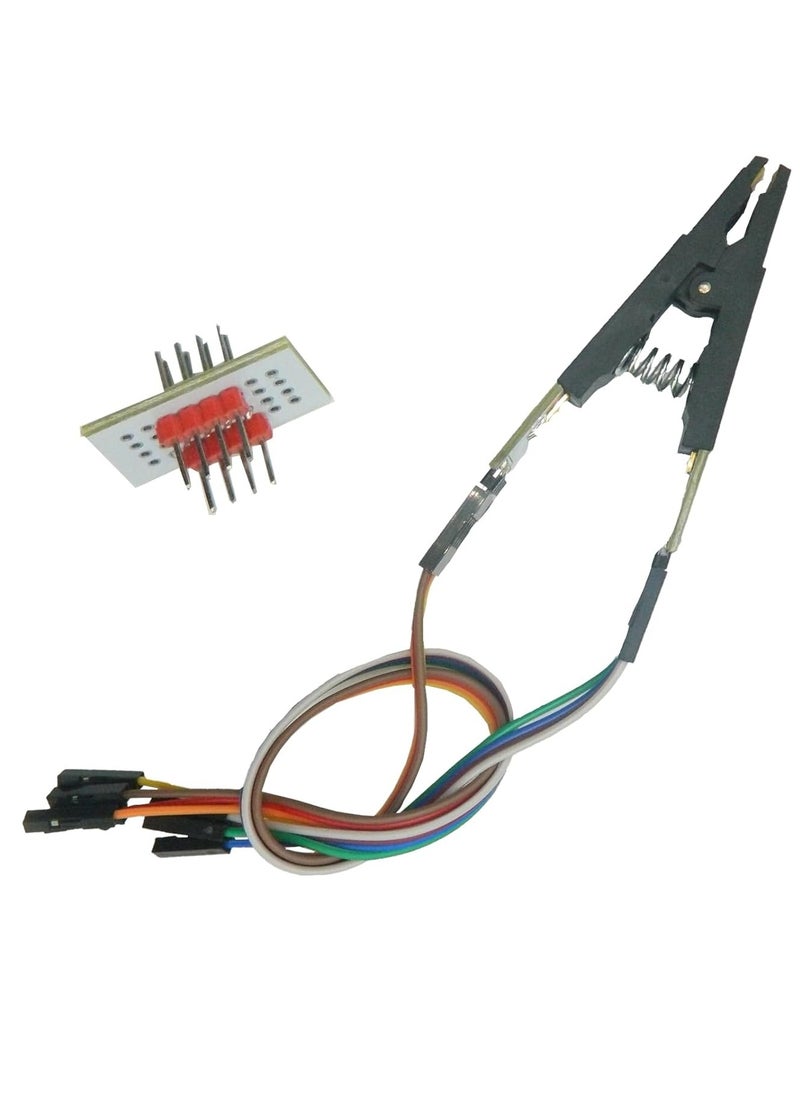

Eeprom Clip Sop8 Test Clip Soic8 8 Pin Burn-in Clip Ic Flash Chip Test Clamp Clip Cable with Board Bio Programmer IC Clips

15.00

Inclusive of VAT

Free Delivery

Only 3 left in stock

Free Delivery

Get it by 8 May

Order in 22 h 18 m

Delivery by noon

Low Returns

Cash on Delivery

Secure Transaction

Explore other bestsellers in
Outlets & Accessories

BANK OFFERS

Earn 5% cashback with the Mashreq noon Credit Card.

SELLER

Product Overview

Highlights

Note Please Don't press on Clamp White Area, SOP8 burning clip, can be applied to 150MIL to 300MIL body width of the IC, the pitch is 1.27MM, this specification can be burned.

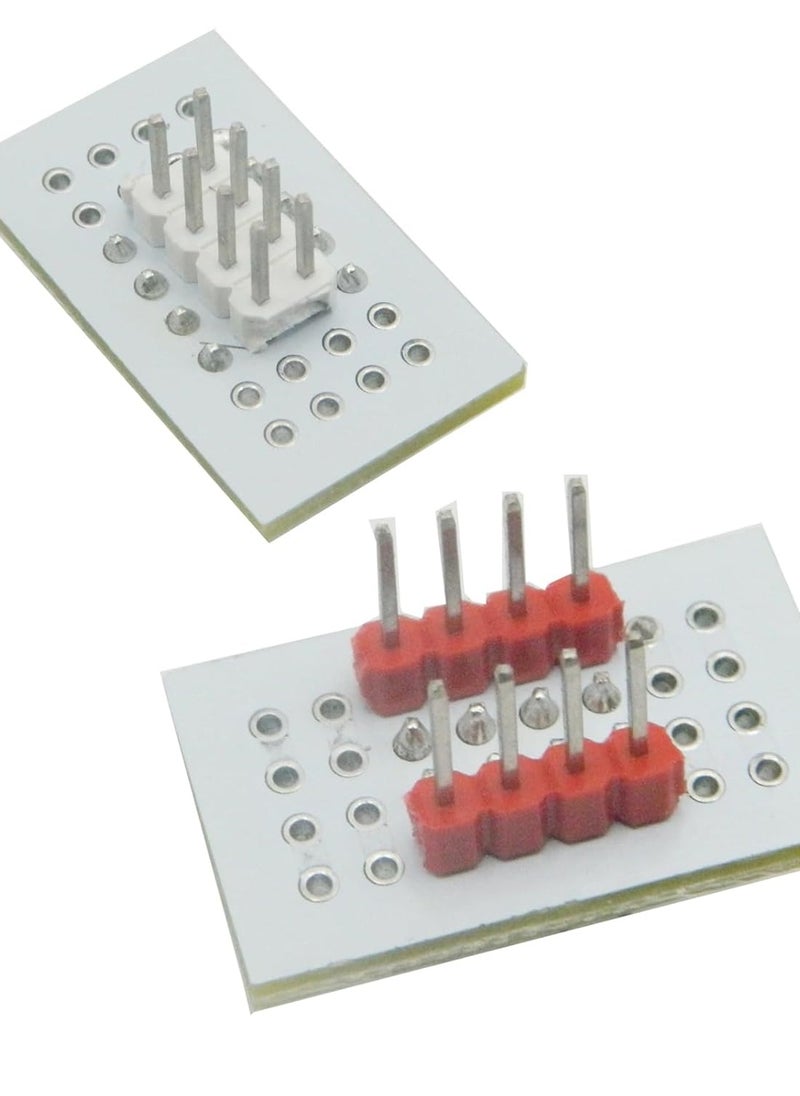

Some motherboards can not be removed, some motherboards still need to be removed, because the chip on the board will be affected by the peripheral circuitry, resulting in the failure to recognize, can not be recognized can only be removed with a burner board, but the chip welded down to the equivalent of a universal seat, the same can be used directly and wide and narrow general purpose.
When encountered with the protected function of the programmer, the clip in the normal voltage is not read out, this time you need to add a 3.3V voltage, the method is: clip the chip, the chip pin 8 corresponding to the clip pin plus a 3.3V voltage. General 3.3V power supply has two lines, then the VCC corresponds to connect the clip, another line directly to ground on it.

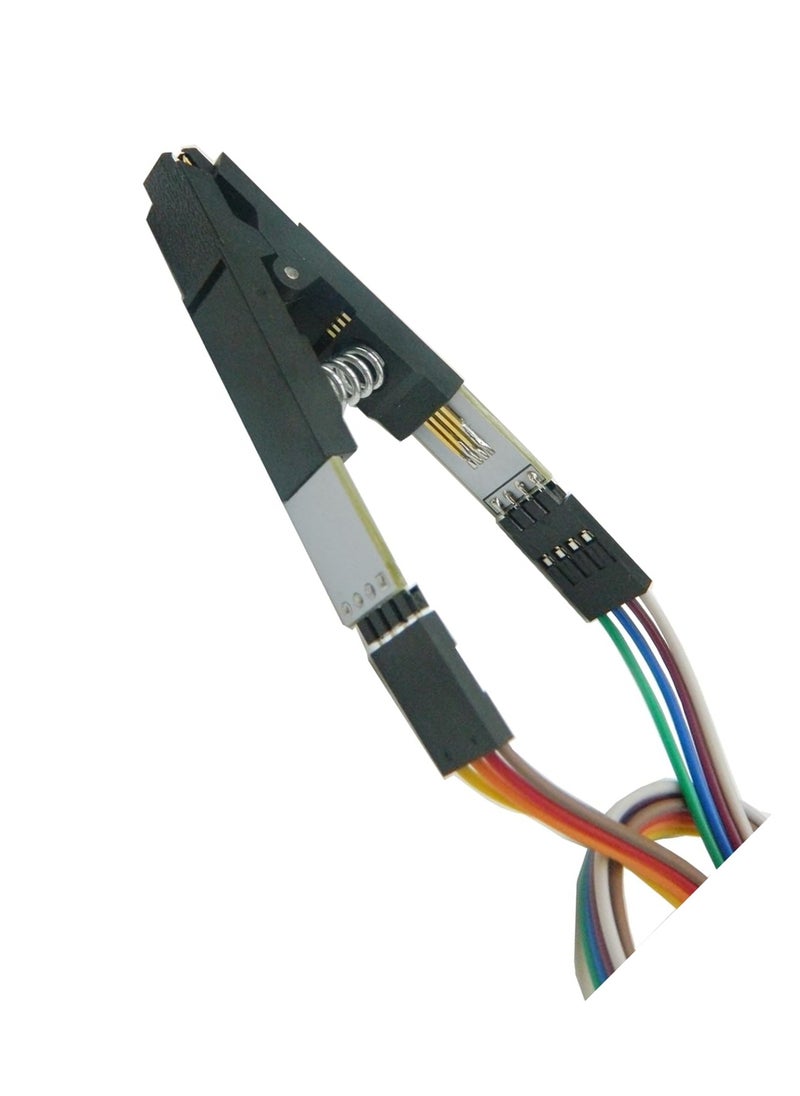

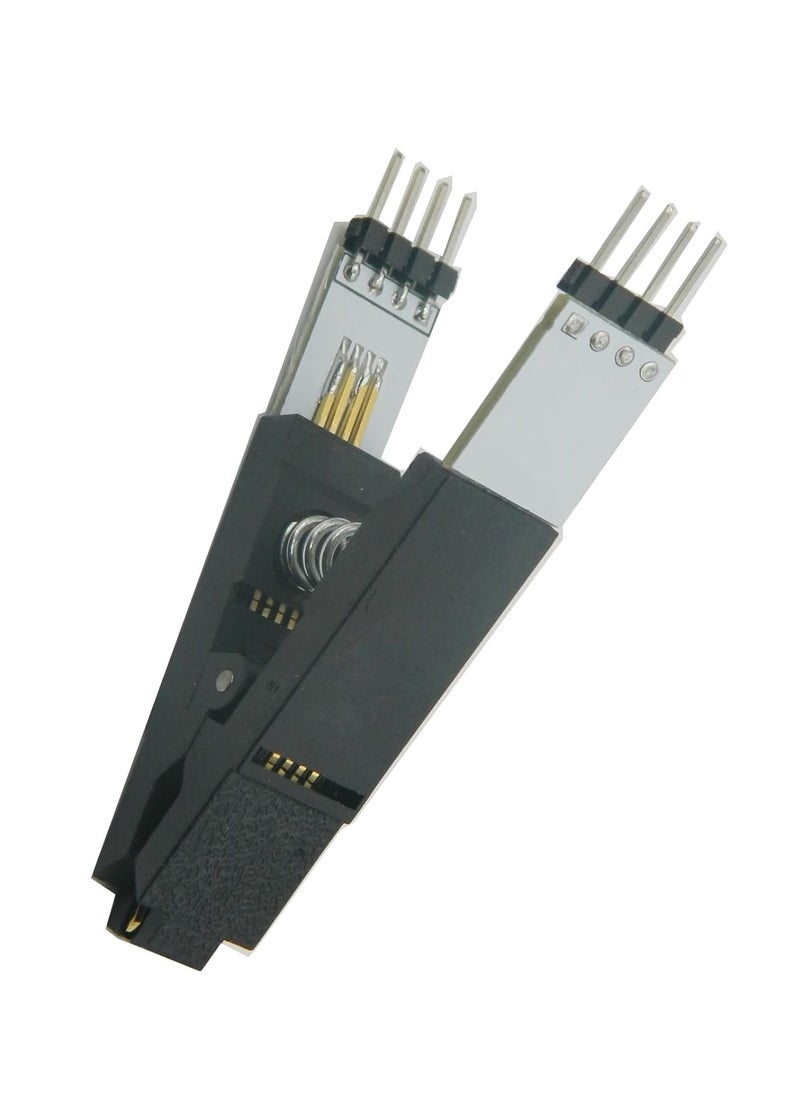

The use of clips for burning need to master certain skills: the top of the mouth of the clip on both sides of the hook design, the clip will be opened from both sides of the chip to the inward clip can be stabilized contact. Do not press the clip violently from the top of the chip, this operation will damage the hooks at the mouth of the clip.

Specifications
