Product Overview

Overview

Color

White

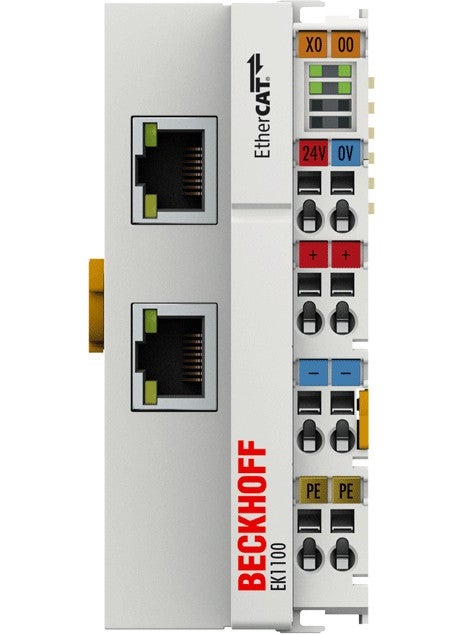

Beckhoff EK1100 EtherCAT Connector

The EK1100 EtherCAT Coupler is the connection between the EtherCAT protocol at the fieldbus level and EtherCAT Terminals. The coupler converts passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and displayed individually in the process image.

Special features:

Connection technology: 2 x RJ45 socket
Connection lengths: up to 100 m
Number of EtherCAT Terminals in the overall system: up to 65,535

EK1100 has two RJ45 sockets. The upper Ethernet interface is used to connect the connector to the network; The lower socket serves for the optional connection of other EtherCAT devices in the same segment. In addition, an EtherCAT connection or an EtherCAT extension can be used for extension or to establish a line or star topology.

System and field supplies, each 24 V DC, are provided directly at the coupler. The enclosed EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can provide a maximum of 5 V and 2 A. If higher current is required, power supply terminals such as EL9410 need to be integrated. The field supply is delivered to individual I/O components via power contacts up to 10 A.

In an EtherCAT network, the EK1100 can be installed anywhere in the Ethernet signal transmission section (100BASE-TX) – except directly at the switch. EK9000 and EK1000 couplers are suitable for use in the switchgear.

technical data	EK1100
Task within EtherCAT system	coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Data transfer medium	Ethernet/EtherCAT cable (min. Cat. 5), shielded
Distance between stations	max. 100m (100BASE-TX)
Number of EtherCAT Terminals	up to 65,534
Protocol	EtherCAT
delay	approx. 1 µs
Data transfer rates	100Mbit/s
Bus interface	2 x RJ45
power supply	24 V DC (-15 %/+20 %)
Current consumption from US	70 mA + (∑ E-bus current/4)
Current consumption from UP	load
Current supply E-bus	2000mA
Power contacts	max. 24V DC/max. 10A
Electrical isolation	500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature	-25…+60 °C/-40…+85 °C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.	IP 20/variable
Approvals/markings	CE, UL, ATEX, GL, IECEx, cFMus
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc

Housing data	EK-44-8pin
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	44mm x 100mm x 68mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
marking	Labeling of the BZxxx series
Wiring	solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG 28…14, st: AWG 28…14, f*: AWG 26…16
Stripping length	8…9mm
Current load power contacts	Imax: 10A

*s: solid wire; st: stranded wire; f: with ferrule

Specifications

Colour Name	White
HS Code	903180809000
