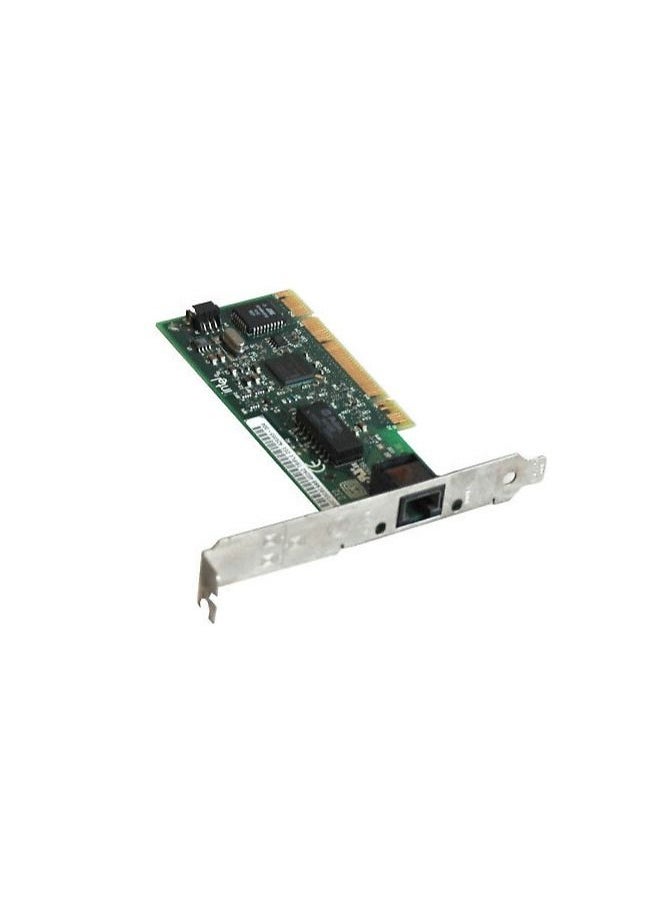

Ethernet PCI Card with Wake-On-LAN EZ Card™ 10/100 Fast

OverviewThe PCI Fast Ethernet EZ Card 10/100 (SMC1255TX-1) supports full-duplex communication, auto-negotiation, Wake-on-LAN (WOL), flow control, and a 32-bit data transfer mode. Characteristics • 32-bit PCI bus-master architecture, this SMC 10/100 adapter reduces CPU utilization while optimizing actual data transmission speed. The EZ 10/100 PCI Fast Ethernet card is self-configured in power-up for easy installation. Technical Specifications Standards • IEEE 802.3 10Base-T; UTP cable, 2 pairs, RJ-45 (EIA/TIA Categories 3, 4, 5) • IEEE 802.3u 100Base-TX; UTP cable, 2 pairs, RJ-45 (EIA/TIA Category 5) • IEEE 802.3x Flow Control • IEEE 802.1Q Interface • 1 x RJ-45 (10Base-T and 100Base-TX) Port • PCI v2.2 Energy Management • ACPI (Advanced Configuration and Power Interface) • Wake-on-LAN-on Remote Power for Resource Management • MagicPacket and Supports Link Switching • Instant OnNow/PC98/PC99 In Functionality System Clock • 33 Mhz Interface Data • 32-bit PCI bus-mastering Full Duplex • 10Mbps & 100Mbps (20 Mbps & 100 Mbps) Certifications • CE Mark • FCC Class B Dimensions • 119.92 x 42.98 mm Weight • 45 grs Operating Systems • Microsoft Windows 95, 98, 2000, ME, NT, XP and Vista (32 and 64-bit) • Linux • FreeBSD V4.x • Mac OS 8.x, 9.x, 10.0.4, 10.2
