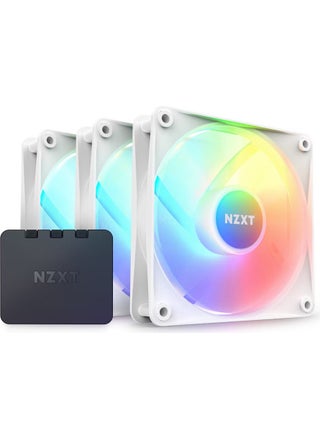

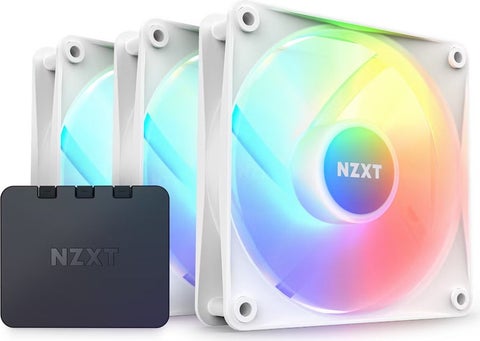

F120 Rgb Core White 3X120 mm Fan RF-C12TF-W1

Color	White
Place of use	Case Fan

Overview

Detail

F Series RGB Core Fans deliver excellent illumination with eight individually addressable RGB LEDs and premium cooling with high static pressure.

• Eight individually addressable LEDs mounted on the fan hub are perfectly distributed through translucent blades for a spectacular lighting effect.
• The improved hub and blade design delivers increased static pressure by pushing air into your radiator while providing excellent airflow. This allows for superior heat dissipation when paired with a liquid cooler or cooler and used as an input or output.
• Personalized lighting combinations via NZXT CAM software.
• Sync seamlessly with all your compatible NZXT lighting accessories.
• PWM controlled The fan reduces noise by allowing speed adjustment. It offers the best possible cooling without compromising the cooling level.
• Fluid Dynamic Bearings provide high rotational stability while reducing bearing noise. reduces fan life. Increases up to 60,000 hours.
• Anti-vibration rubber corners reduce vibration noise at any speed. reduces.
• Triple and dual packages, synchronized lighting controlü for three Includes a channeled NZXT RGB Controller.

Inside the Box

• 120mm RGB Fan3

• Mounting screws12

• RGB Controller1

Technical Specifications

BASIC FEATURES

• Material :  Plastic, rubber, PCB

• Fan Rated Voltage :  12 V DC, 0.2 A, 2.4 W

• LED Quantity :  8

• Bearing :  Fluid Dynamic Bearing (FDB)

• Fan Connectorü :  4-pin PWM

DIMENSIONS

• Height :  120mm

• Width :  120mm

• Depth :  26mm

COOLING

• Speed :  500-1.800 ± 180RPM

• Airflow :  78.86 CFM

• Static Pressureç :  2.57 mm H2O

• Noiseü :  33.88 dBA

• Bearing :  Fluid Dynamic Bearing

• Power Consumption :  12 V DC, 0.2 A, 2.4 W

• Connector :  4-pin PWM

• Output LED: 8 LEDs

• Connections and Cable Length (PWN) :  4-pin PWM Fan Cable – 600mm x1

• Connections and Cable Length (NZXT) :  4-pin NZXT RGB Cable – 600mm x1

FAN ÖMRÜ

• Hours :  60,000

RGB CONTROLLER

• Dimensions :  63.2 x 53.2 x 12.8 mm

• Weight :  52.8 g

• Material(s):  Plastic, PCB, Magnets

• Mounting : 2x 3M Double Lock

• Connections :  1 x USB 2.0 Header, 1 x SATA

• Input Connector:  12V DC / 2.6A

• Output Channel Voltage:  5V DC

• System Requirement :  Requires USB 2.0 internal connector

• RGB Lighting Channels :  3

• Lighting channels support : Up to 40 LEDs per channel and up to 120 LEDs total for a total of 3 channels
