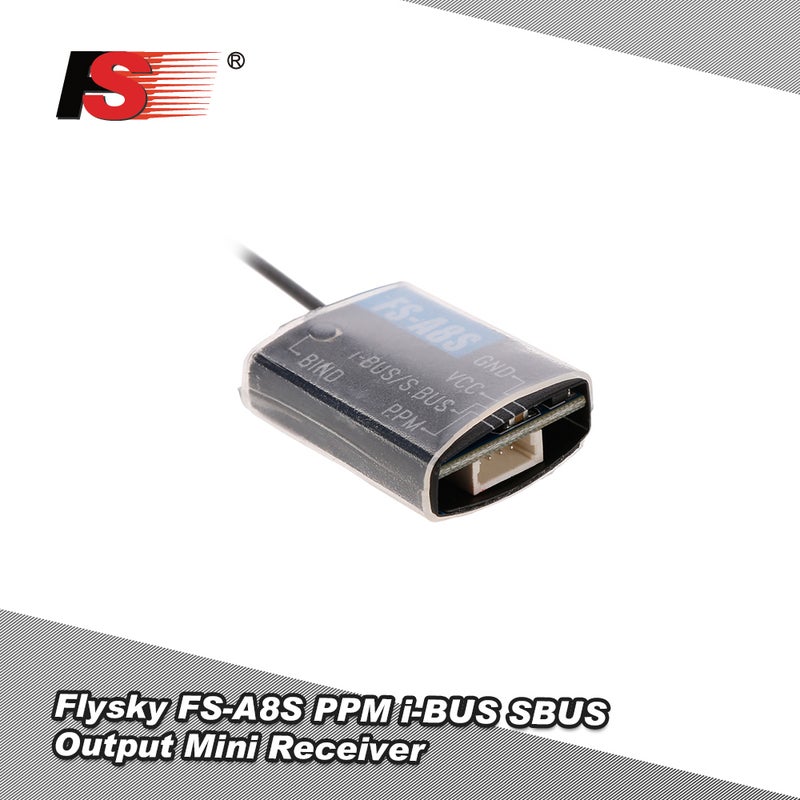

FS-A8S Mini 8CH Receiver PPM i-BUS SBUS Output For RC Transmitter Controller Drone 7cm

OverviewFlysky FS-A8S Mini 8CH Receiver PPM i-BUS SBUS Output for Flysky FS-i6S FS-i6X FS-i10 FS-TM8 FS-TM10 RC Transmitter ControllerFeatures:The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol. Supports standard PPM(8CH) and i-BUS(18CH) output; DSC port: PPM/i-BUS/S. BUSCompatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-TM8, FS-TM10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitterNo ground interference ( Transmitting and receiving 1m from the ground): ＞300mUltra-small size and ultra-light weight, can effectively save the space and reduce the aircraft's weight-bearing. Specifications:Brand name: FlyskyItem name: FS-A8S receiverChannels: PPM 8CH; i-BUS 18CHModel type: Multi-rotorFrequency range: 2. 408-2. 475GHzBand width: 500KHzBand number: 135RX Sensitivity: -92 dBm2. 4GHz system: AFHDS 2AModulation type: GFSKLow voltage alarm: NoneDSC port: PPM/i-BUS/S. BUSChargeable: NoneAntenna length: 26mm (Not including brass contacts)Input power supply: 4. 0-8. 4VOn-line update: NoneNo ground interference ( Transmitting and receiving 1m from the ground): ＞300mWorking current: 40mAEach channel data: depend on the transmitterChannel delay: ＜15msSize: About 20 * 15 * 7mmWeight: About 2gCertificate: CE0678, FCCCompatible with transmitter: FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-TM8, FS-TM10Change i-BUS/S. BUS modeWhen turned on and bound, the transmitter and receiver can change output mode to i-BUS and S. BUS modes by pressing and holding the bind button for 2 seconds* LED turns off for 1 second when flashed twice: i-bus output MODE* led flashes twice then turns off for 1 second: S. BUS output mode activePackage information: Package size: 7 * 3. 5 * 1. 5cm / 2. 75 * 1. 37 * 0. 59inPackage weight: 10gPoly bag packagePackage List:1 * FS-A8S Mini Receiver1 * Connection Cable
