Generic - FY8176 Network Cable Tester, Ethernet Cable Tester, Sensitivity Adjustable Handheld Portable Cable Tester, Fault Distance Location and Cable Length Test - Image 1

Generic

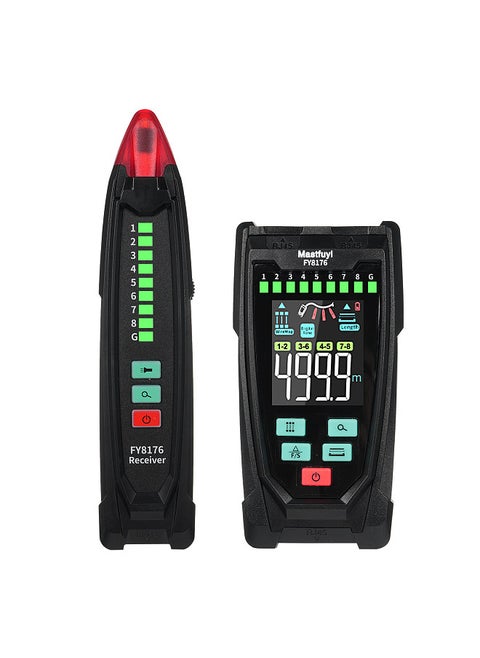

FY8176 Network Cable Tester, Ethernet Cable Tester, Sensitivity Adjustable Handheld Portable Cable Tester, Fault Distance Location and Cable Length Test

222.05

 330.90

Inclusive of VAT

Saving:

 108.85

32% Off

Get it by 3 July

Order in 21 h 49 m

Delivery by noon

Cash on Delivery

Secure Transaction

BANK OFFERS

Earn 5% cashback with the Mashreq noon Credit Card.

SELLER

Item as shown

Partner since

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

Anti-interference Digital Cable ScanningAdopting advanced digital cable scanning technology, anti-interference, noiseless, high sensitivity, stronger and more stable than ordinary analog signal
Length Measurement/Fault Distance LocationFY8176 Network Tester use TDR (Time Domain Reflectometry) technology to measure the length and fault point of network cable/telephone cable/BNC coaxial cable without calibration
Wire Map Function The Network Cable Tester can test the physical connection status of the test network cable, such as line sequence, open, short, wrong pair, reverse connection, etc.
Humanized DesignThe transmitter of the Ethernet tester is equipped with a full view 2.5 inch color screen that can be clearly read even in a dark environment, with soft rubber wrapping on the outside for a comfortable feel and 2m drop conservation
Battery Undervoltage AlertTransmitter undervoltage prompt: when the transmitter battery voltage is lower than the working voltage, the display will show the battery symbol, please replace the battery in time

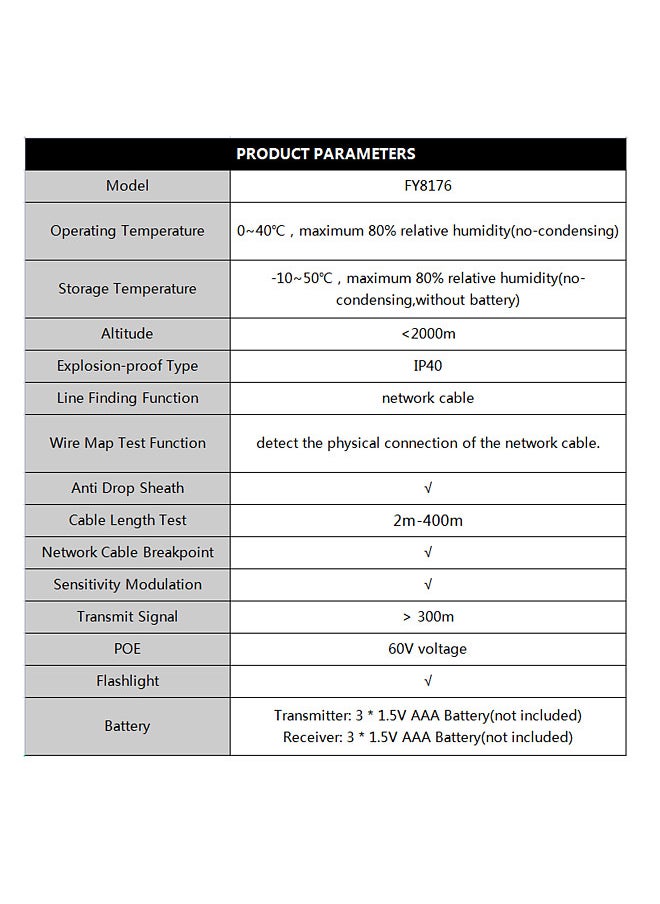

OverviewSpecifications: Model: FY8176 Operating Temperature: 0~40℃,maximum 80% relative humidity(no-condensing) Storage Temperature: -10~50℃,maximum 80% relative humidity(no-condensing,without battery) Altitude: ＜2000m Explosion-proof Type: IP40 Line Finding Function: network cable Wire Map Test Function: detect the physical connection of the network cable. Anti Drop Sheath: √ Cable Length Test: 2m-400m Network Cable Breakpoint: √ Sensitivity Modulation: √ Transmit Signal: > 300m POE: 60V voltage Flashlight: √ Battery: Transmitter: 3 * 1.5V AAA Battery(not included); Receiver: 3 * 1.5V AAA Battery(not included) Material: ABS Transmitter Size: 144 * 74 * 31 mm / 5.67 * 2.91 * 1.22 inch Receiver Size: 198 * 43 * 32 mm / 7.79 * 1.69 * 1.26 inch Transmitter Weight: 167g / 5.89oz Receiver Weight: 110g / 3.88oz Package Size: 22.8 * 14.3 * 5.4 cm / 8.98 * 5.63 * 2.12 inch Package Weight: 477g / 16.82oz

Specifications

Colour Name	Black
What's In The Box	1 * Transmitter 1 * Receiver 1 * RJ45 Adapter Cable 1 * Cloth Bag 1 * User Manual (English)
Model Name	FY8176
