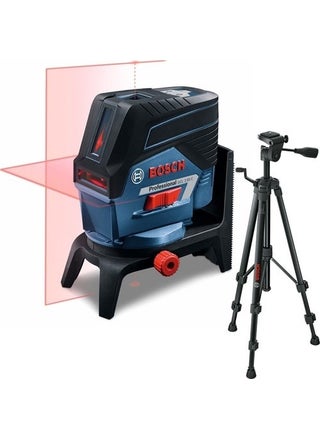

Gcl 2-50 C Professional Line Laser + Bt 150 Tripod (0 601 066 G02)

Bosch Gcl 2-50 C Professional Line Laser + Bt 150 Tripod (0 601 066 G02)
Product features
• Horizontal and vertical laser lines and two centered laser points with optimum visibility
• Different usage opportunities with its swivel and multi-functional holder offering a wide variety of mounting possibilities.
• High visibility of laser lines (without receiver) with a working range of 20 m
• Working range of 50 meters with LR 6 or LR 7 Professional receiver (optional)
• Pendulum locking ensures safe transport.
• Bluetooth® connection with smartphone for remote control and handpiece setup
• Dual Power Source: Can be operated with 12-V Lithium-Ion battery or standard alkaline batteries
• Precise positioning of laser lines around laser points – Motorized positioning with the RM 3 Professional (optional) or manual positioning with the RM 2 Professional using the app or remote control


Technical specifications
• Laser diode 635-650 nm
• Operating temperature -10 – 50 °C
• Storage temperature -20 – 70 °C
• Laser class 2
• Working range 20 m
• Working range with receiver 50 m
• Accuracy ± 0.3 mm at 1 m
• Working range of laser points, max. 10 m (up) , 10 m (down)
• Automatic leveling range ± 4°
• Protection against dust and spray water IP 54
• Power supply 4 x 1.5 V LR6 (AA)
• Tripod thread 1/4"
• Weight, approx. 0.6kg
• The color of the laser line is red
• Mirroring 2 lines / 2 dots
• Vertical point accuracy ± 0.7 mm/m
• Compatible laser receivers LR 6 + 7


Scope of Delivery
Pen Included
AA1 alkaline battery adapter 1 608 M00 C1B
Tripod BT 150 Professional 0 601 096 B00
GCL 2-50 C/CG add-on 1 1 608 M00 C1T
laser target board
protection bag
Swivel mount RM2 0 601 092 700
4 x batteries 1.5 V LR6 AA
