Gesture Sensor Module PAJ7620U2 9 Gesture Recognition Sensor

Description:

Module Size: 15.5mm x 20mm

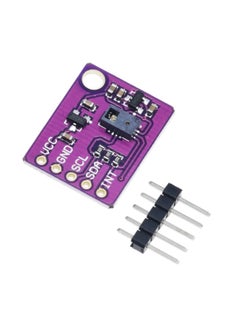

The CJMCU-7620 gesture recognition sensor is a PAJ7620U2 that integrates the gesture recognition function with the universal I2C interface into a single chip. It can identify 9 kinds of gestures, including moving upward, moving downward, moving to the left, moving to the right, moving forward and moving backward, clockwise, counterclockwise, downward, from left to right, from left to right.

Features:

9 gesture recognition The gesture speed is 60 / s to 600 / s in normal mode, and the game mode is 60 / s to 1200 / S Environmental immunity: <100k Lux Built-in proximity detection The I2C interface is up to 400 kbit / S Feature: Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V3.3V gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave) Gesture speed is 60¡/s to 600¡/s in Normal Mode and 60¡/s to 1200¡/s in Gaming Mode Ambient immunity: <100k Lux Built-in proximity detection power saving scheme I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V Ambient noise cancellation

Package Included:

1x Sensor Module with pin header
