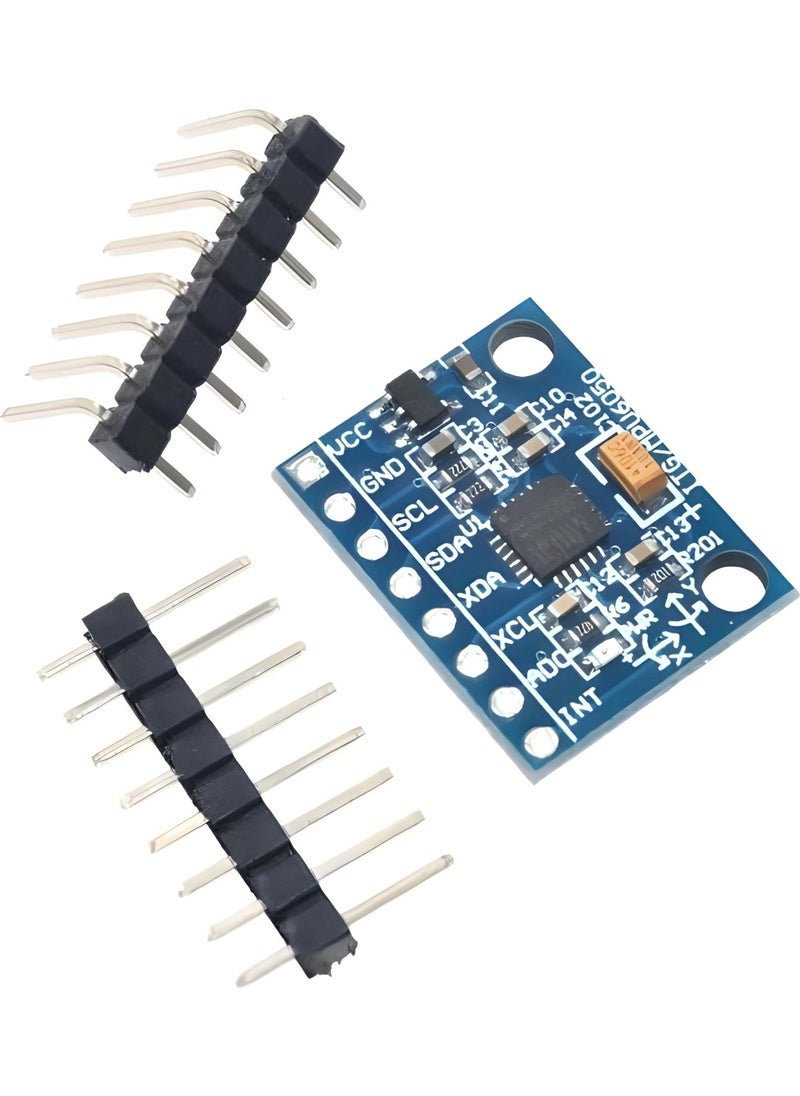

GY-521 Mpu 6050 3 Axis Gyroscope

      MPU-6050 is a 6-axis IMU sensor card with a 3-axis gyro and a 3-axis angular accelerometer, which is frequently used in various hobby, multicopter and robotics projects.

·         It is a sensor frequently used in aircraft, balance robots or many robot projects.

·         Both the accelerometer and gyro outputs provide I²C output from separate channels.

·         It can output with a resolution of 16 bits on each axis.

·          Since the spacing between the pins is set as standard, it can be easily used on breadboards or different circuit boards.

USE OF:

Since there is a voltage regulator on the board, it can be operated with a supply voltage between 3 and 5 V.

Since the card supports the I2C protocol, the pins on it are standard I2C pins and must be plugged into the standard I2C pins of the Arduino.

TECHNICAL SPECIFICATIONS:

Working voltage: 3V - 5V,

Gyro measuring range: +250 500 1000 2000 ° / s,

Angular accelerometer measuring range:   ± 2 ± 4 ± 8 ± 16 g,

Communication: Standard I²C.

Package Included:

1x  MPU6050 Acceleration Sensor GY-521
