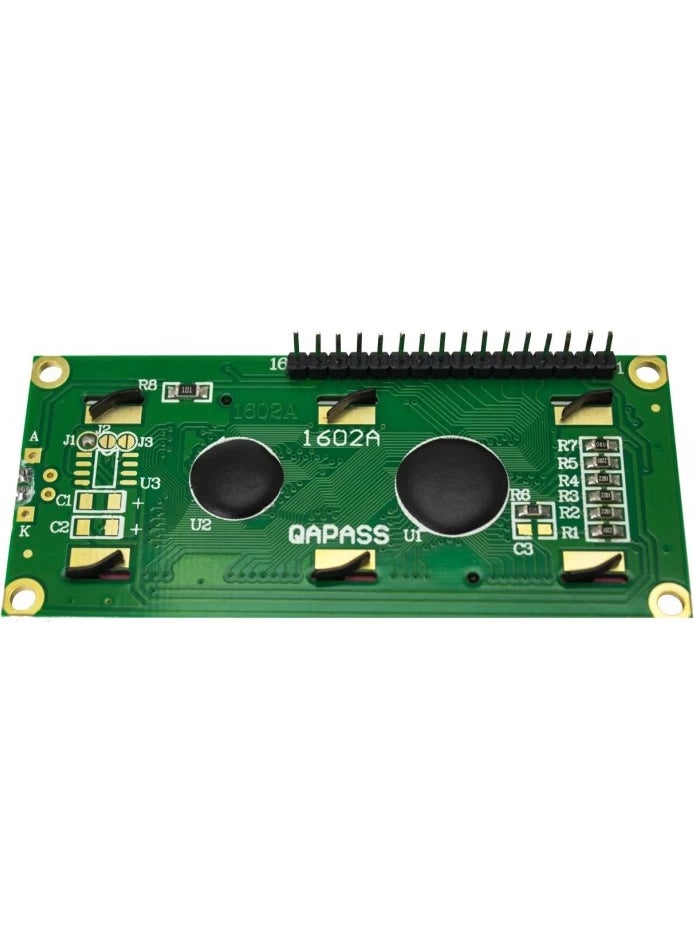

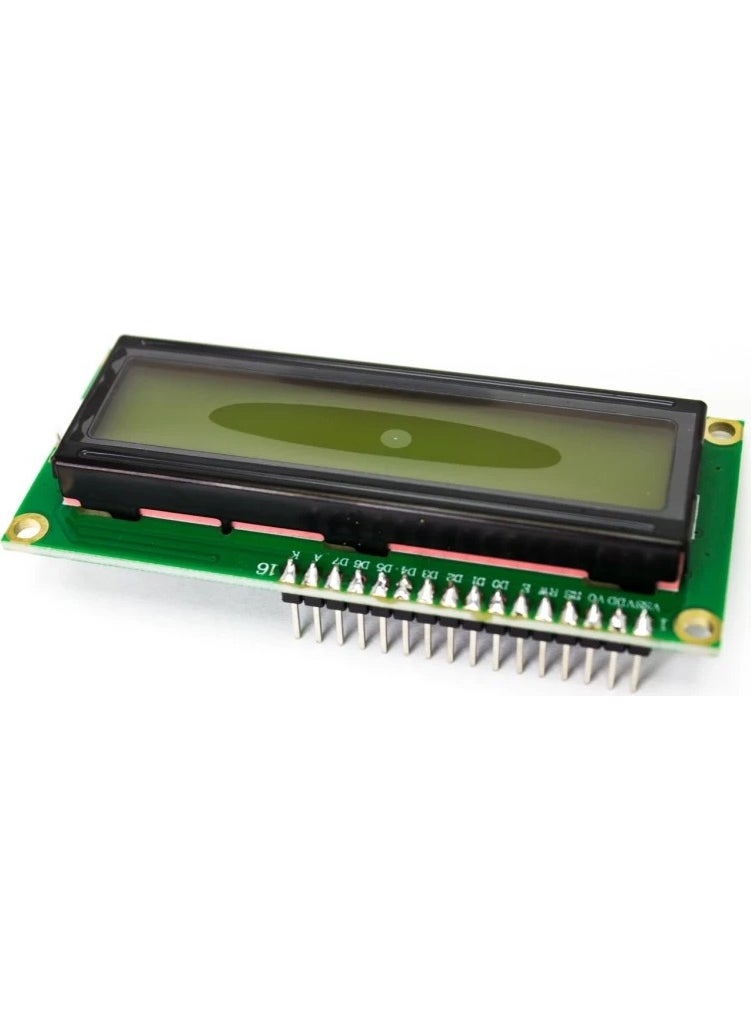

Overview2x16 LCD Screen with Header Solder - Black on Green
It is a quality 16x2 (16 columns, 2 lines) LCD screen that you can use in your Arduino and other microcontroller projects. It has black text on a green background. It has back LED lighting. It works with 5V voltage.If you wish, you can view this screenCharacter LCD I2C/IIC Converter BoardProperties:- It works with +5V.
- It has Back Lighting feature.
- It draws 4mA current without LCD backlight.
- Dimensions are 80x36x9.4mm
- Working temperature is between -20 and +70 degrees.
Leg Connections:| LCD Pin | Symbol | Connection |
| one | Etc. | GND |
| 2nd | Vdd | +5V |
| 3 | Vo | Contrast adjustment |
| 4 | RS | Register select pin |
| 5 | R/W | Data read/write pin. |
| 6 | TO | Enable pin |
| 7 | DB0 | Data Bus 0 |
| 8 | DB1 | Data Bus 1 |
| 9 | DB2 | Data Bus 2 |
| 10 | DB3 | Data Bus 3 |
| 11th | DB4 | Data Bus 4 |
| 12 | DB5 | Data Bus 5 |
| 13 | DB6 | Data Bus 6 |
| 14 | DB7 | Data Bus 7 |
| 15 | A | LED backlight anode (+5V) |
| 16 | K | LED backlight cathode (GND) |
datasheet
By using it, you can convert it to communicate via serial interface, thus reducing the number of pins in your projects.
